Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the hood latch cable from the hood latch.

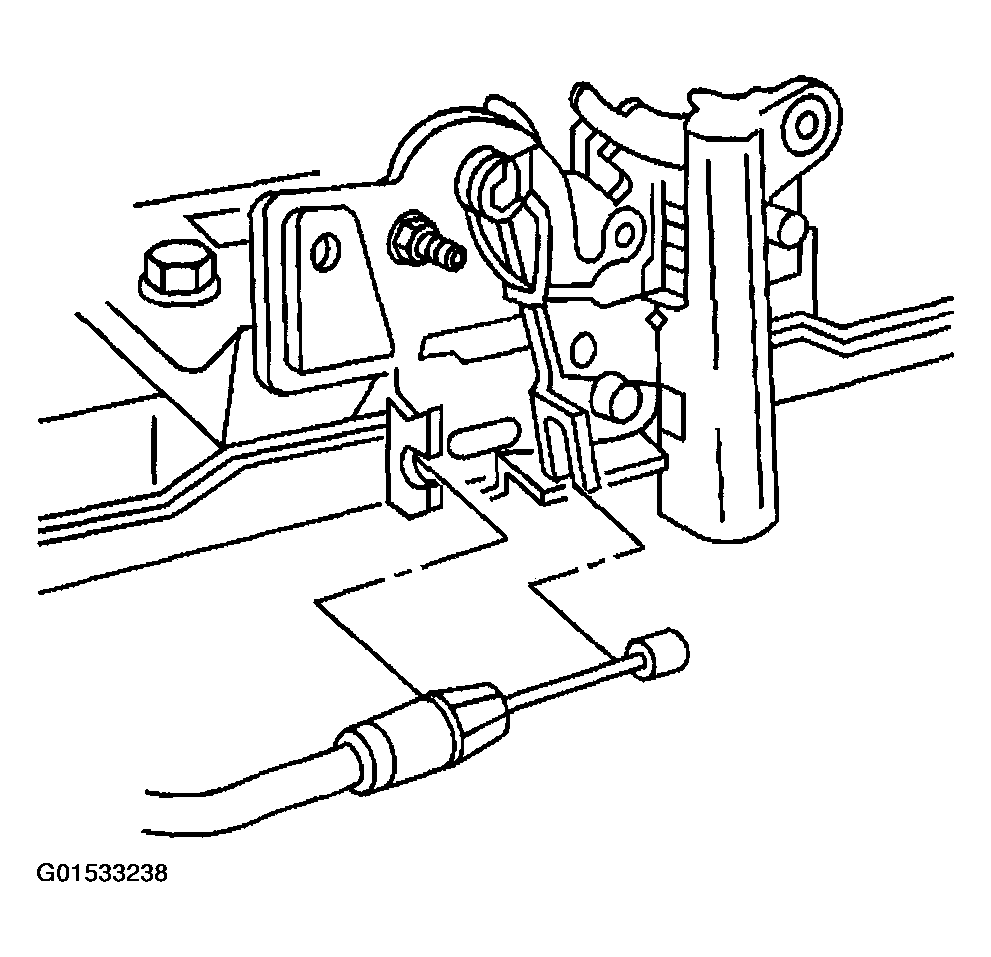

    Fig 1: Removing Hood Latch Cable From Hood Latch
    G01533238Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood latch cable retaining clips.
  4. Attach a length of mechanics wire to the hood latch cable prior to removal. This lead will assist in reinstallation of the new hood latch cable.
  5. Remove the hood release handle. Refer to HOOD LATCH RELEASE HANDLE REPLACEMENT   .

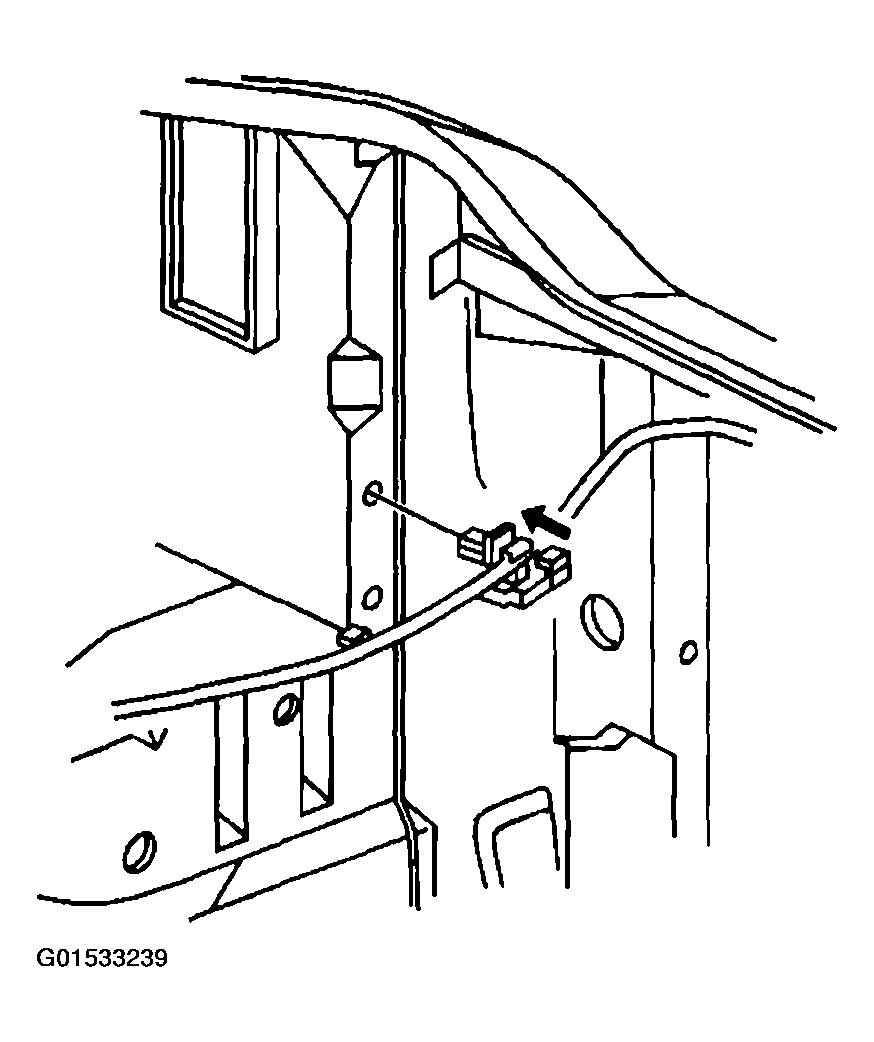

    Fig 2: Removing Hood Latch Cable Retaining Clips
    G01533239Courtesy of GENERAL MOTORS CORP.
  6. Remove the hood latch cable and grommet rearward from the passenger compartment.
    Fig 3: Removing Hood Latch Cable And Grommet Rearward From Passenger Compartment
    G01533240Courtesy of GENERAL MOTORS CORP.
  7. Transfer the lead wire to the new hood latch cable.

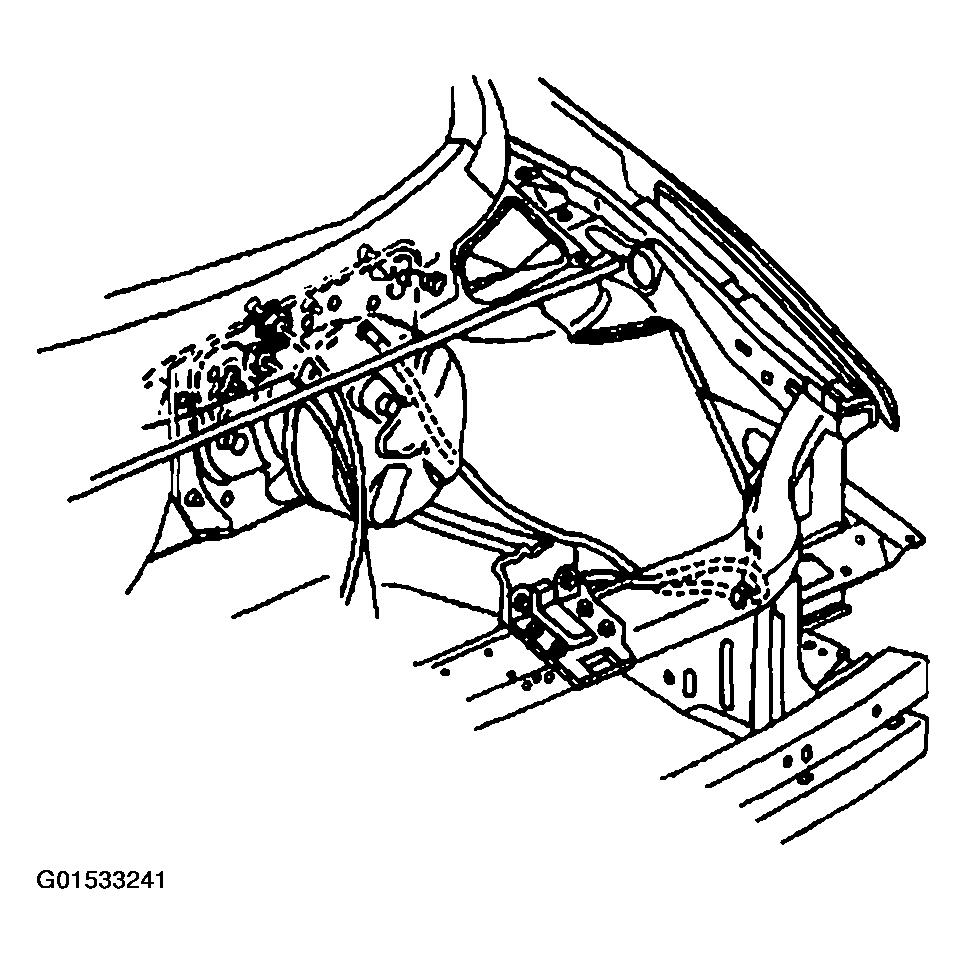

    Fig 4: Transferring Lead Wire To New Hood Latch Cable
    G01533241Courtesy of GENERAL MOTORS CORP.
