Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Using the lead wire, pull the new hood latch cable through the cowl and into the engine compartment.

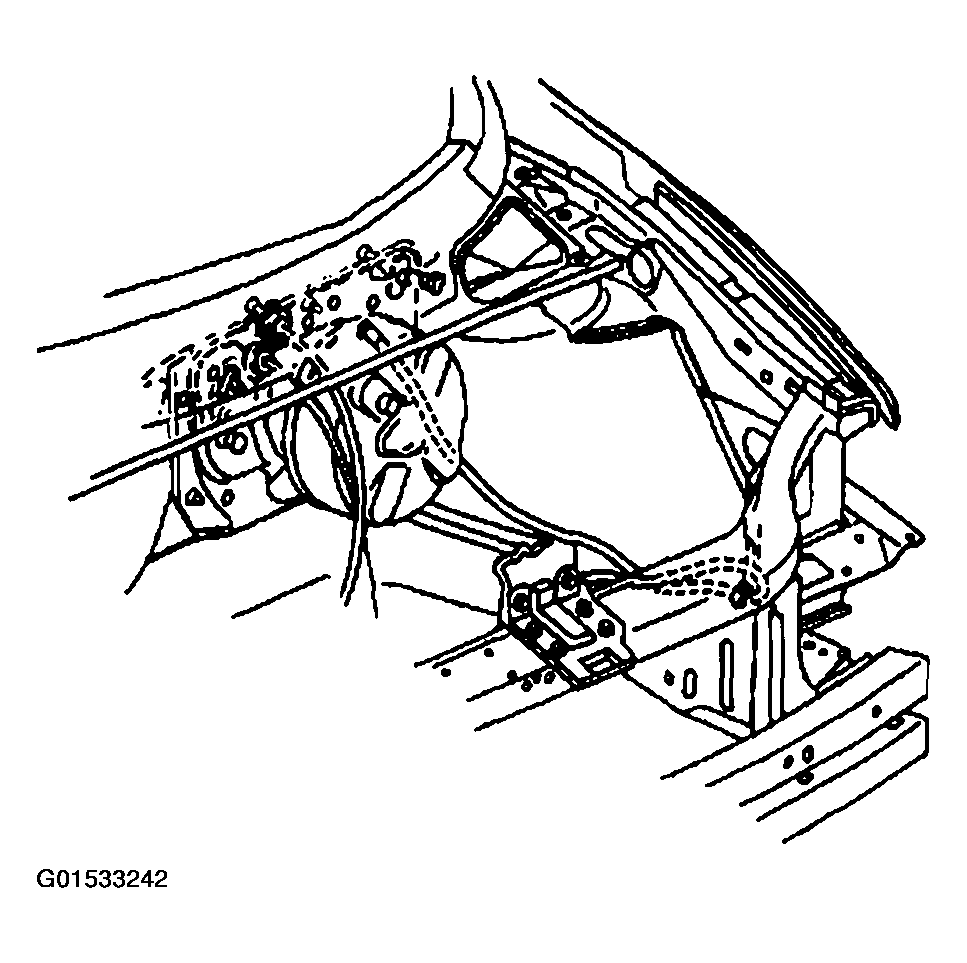

Fig 1: Pulling Hood Latch Cable
Courtesy of GENERAL MOTORS CORP.
Seat the grommet fully into the cowl.
Install the hood release handle. Refer to HOOD LATCH RELEASE HANDLE REPLACEMENT .

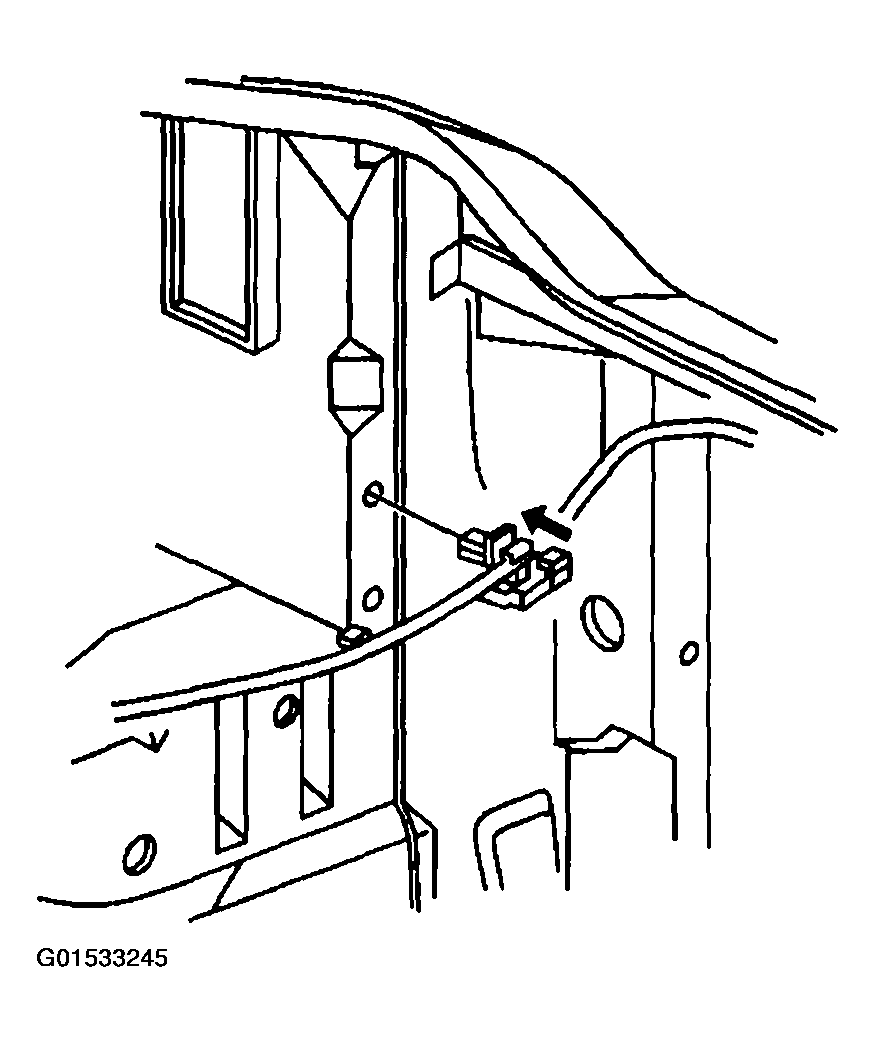

Fig 2: Installing Grommet Into Cowl
Courtesy of GENERAL MOTORS CORP.
Install the hood latch cable to the hood latch.

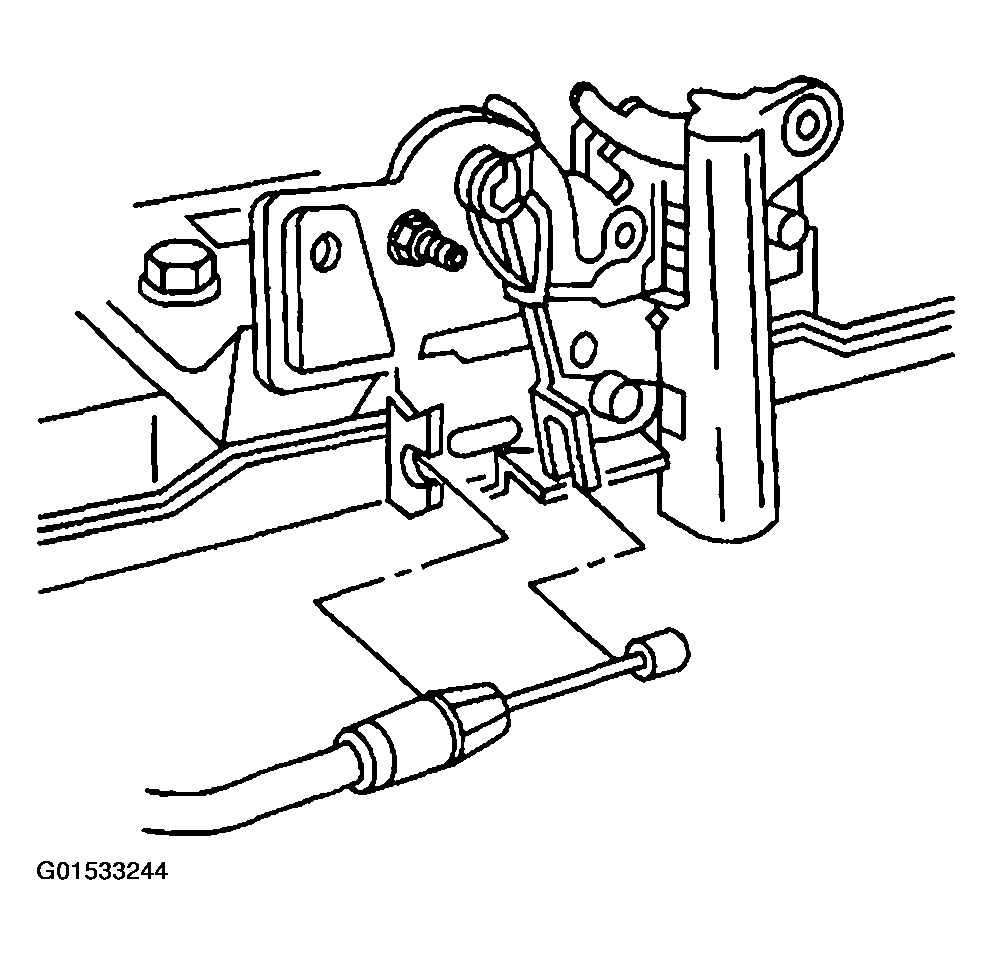

Fig 3: Installing Hood Latch Cable To Hood Latch
Courtesy of GENERAL MOTORS CORP.
Install the hood latch cable retaining clips.
Close the hood.

Fig 4: Installing Hood Latch Cable Retaining Clips
Courtesy of GENERAL MOTORS CORP.
