Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Use J 38778 in order to remove the push-in retainers from the hood inner panel.
  3. Remove the hood insulator tabs from the hood inner panel.
  4. Remove the hood insulator from the hood.

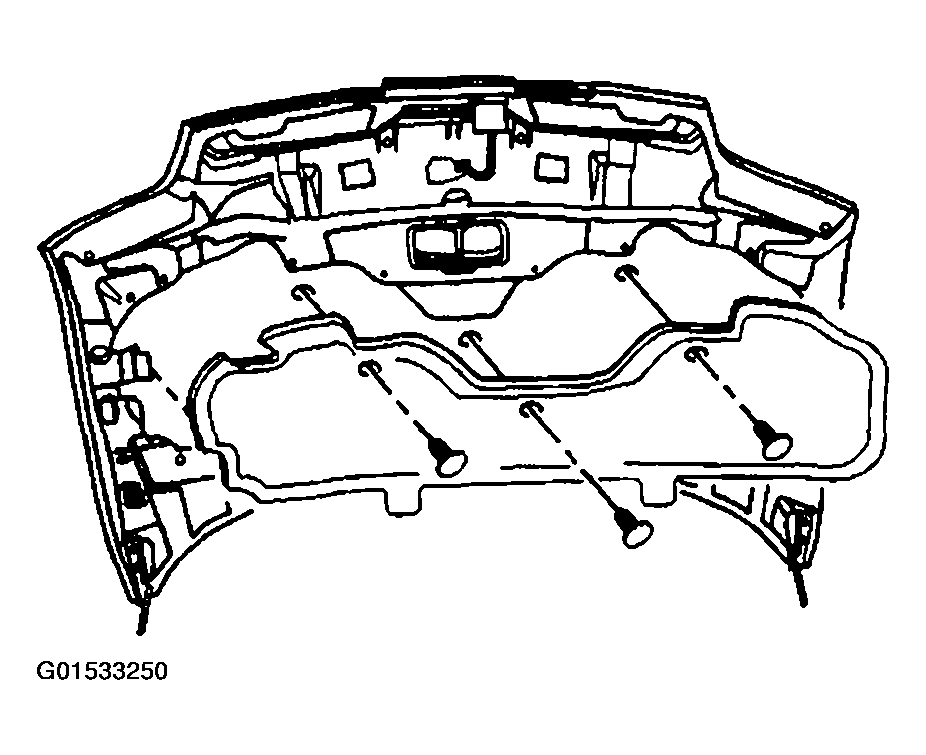

    Fig 1: Removing Hood Insulator From Hood
    G01533250Courtesy of GENERAL MOTORS CORP.
