Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT  in Engine Cooling.
  3. Remove the bolt from the hood prop rod base
  4. Remove the hood prop rod from the engine compartment.

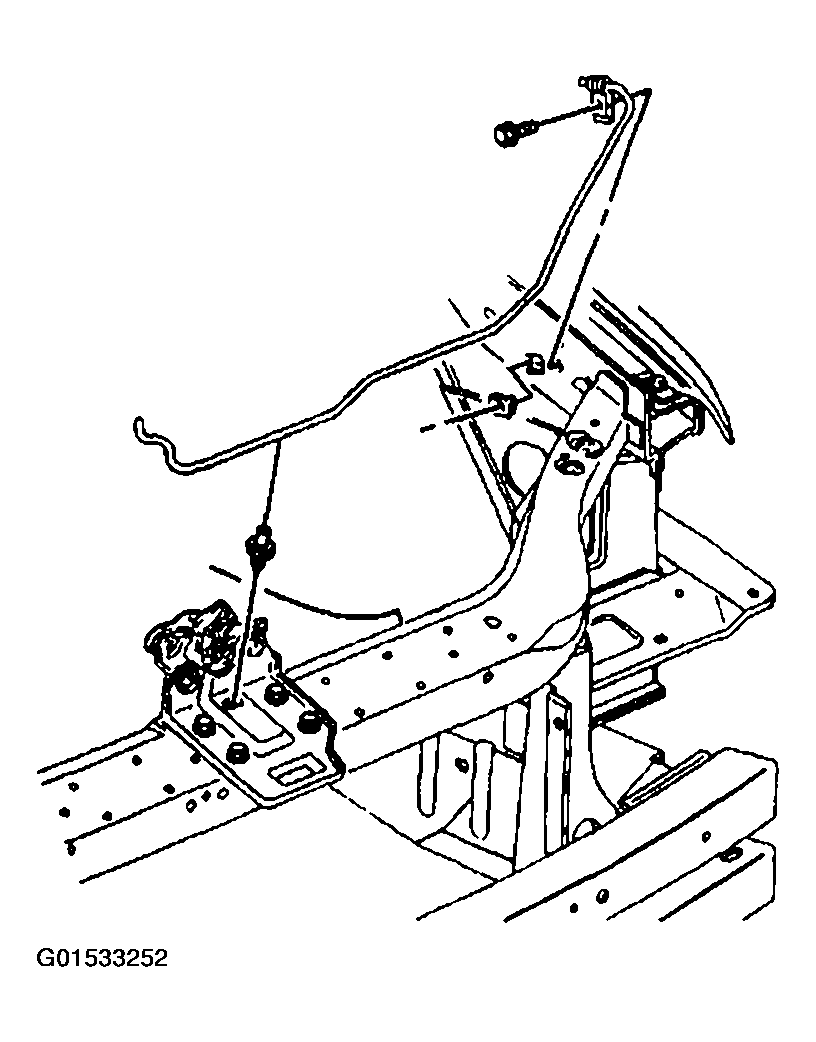

    Fig 1: Removing Hood Prop Rod From Engine Compartment
    G01533252Courtesy of GENERAL MOTORS CORP.
