Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood. Refer to HOOD REPLACEMENT   .
  2. Mark the position of the hinge to the upper fender rail with a grease pencil in order to aid in the alignment when the hood hinge is reinstalled.
  3. Remove the bolts from the hood hinge at the upper fender rail.
  4. Remove the hood hinge from the upper fender rail.

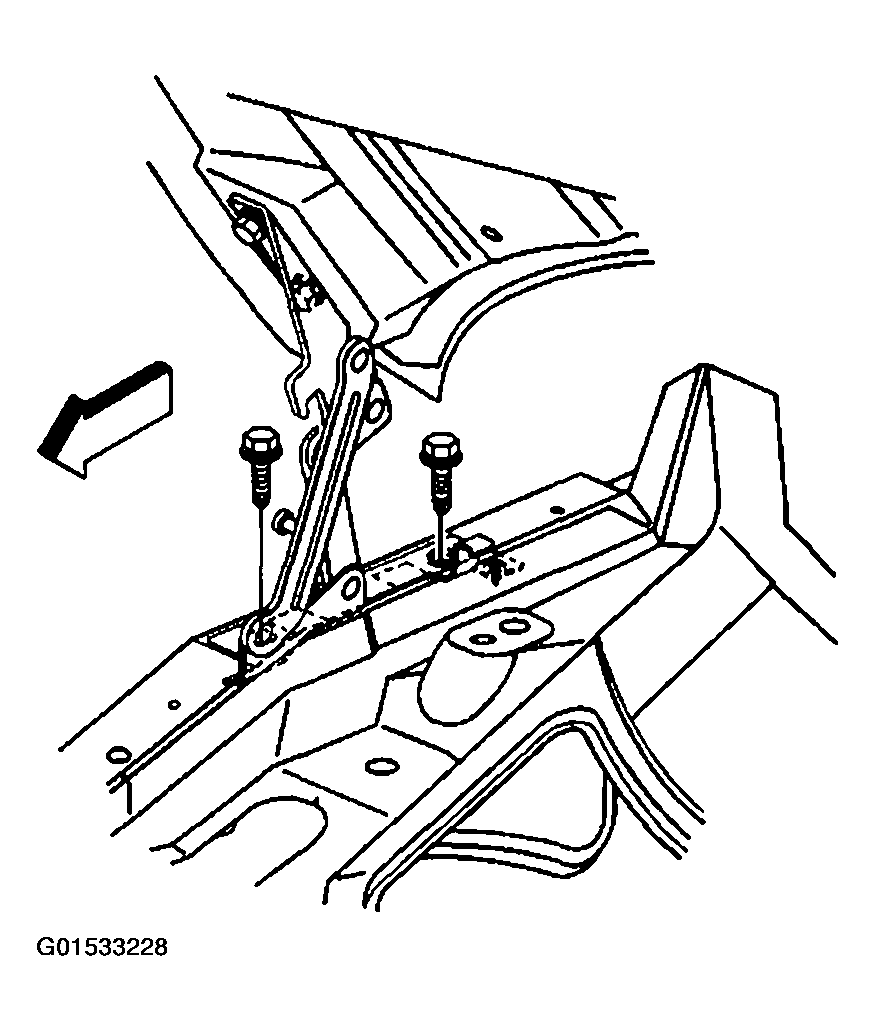

    Fig 1: Removing Hood Hinge From Upper Fender Rail
    G01533228Courtesy of GENERAL MOTORS CORP.
