Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hinge to the marks on the upper fender rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the hood hinge at the upper fender rail.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood. Refer to HOOD REPLACEMENT   .

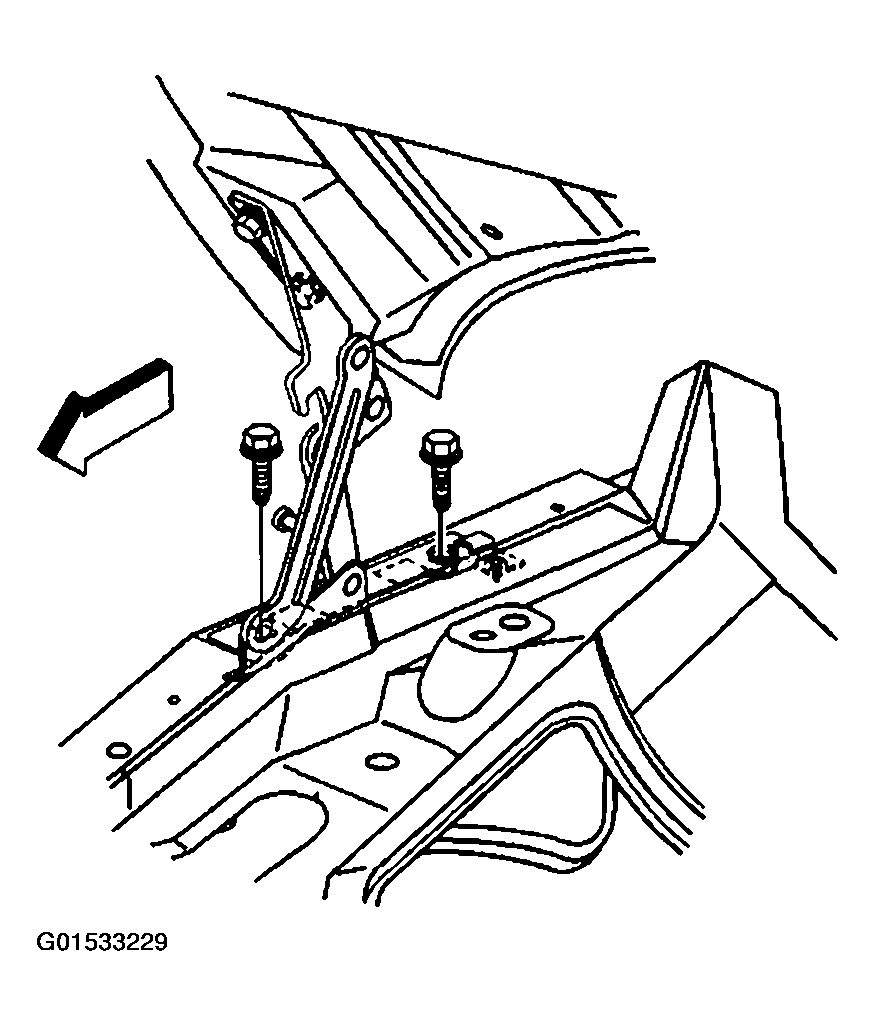

    Fig 1: Positioning Hood Hinge To Marks On Upper Fender Rail
    G01533229Courtesy of GENERAL MOTORS CORP.
