To Raise or Lower the Rear Corners

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the hood firmly.
  2. Determine the amount of adjustment needed.
  3. Open the hood.
  4. Raise or lower the vertical adjustment screw at the rear of the hood hinge to the specified height.
  5. If needed, repeat the procedure on the opposite side of the hood.

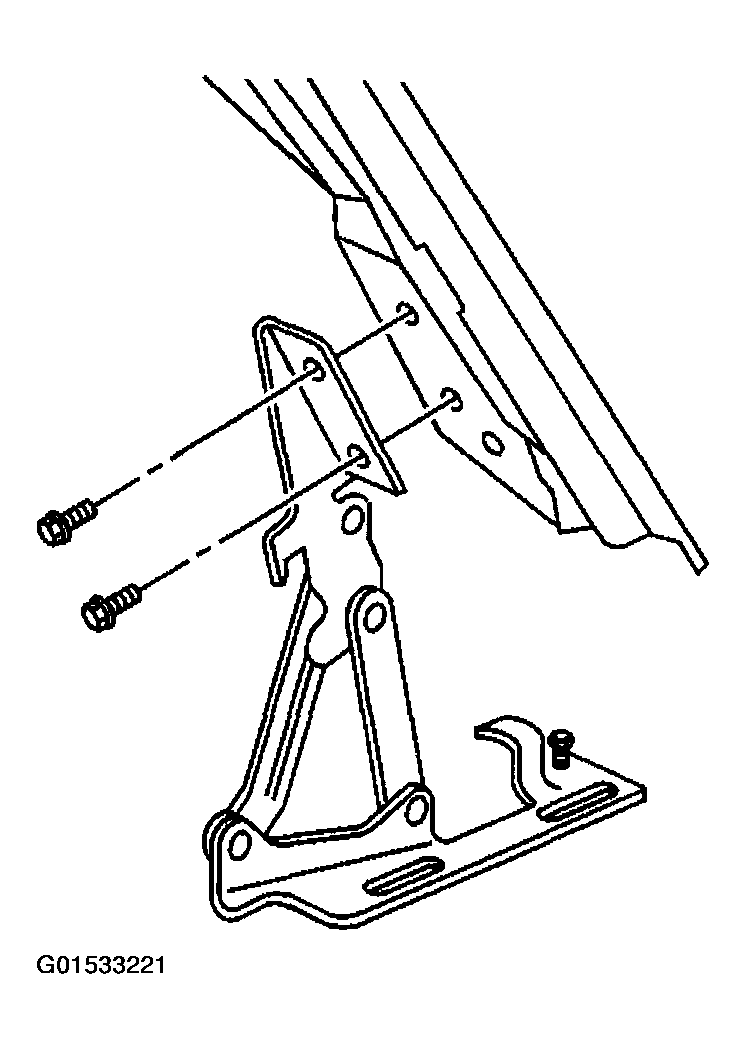

    Fig 1: Raising Or Lower Vertical Adjustment Screw At Rear Of Hood Hinge
    G01533221Courtesy of GENERAL MOTORS CORP.
