Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the front tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  4. Remove the fender splash shield. Refer to SPLASH SHIELD REPLACEMENT - WHEELHOUSE   (for Oldsmobile only)

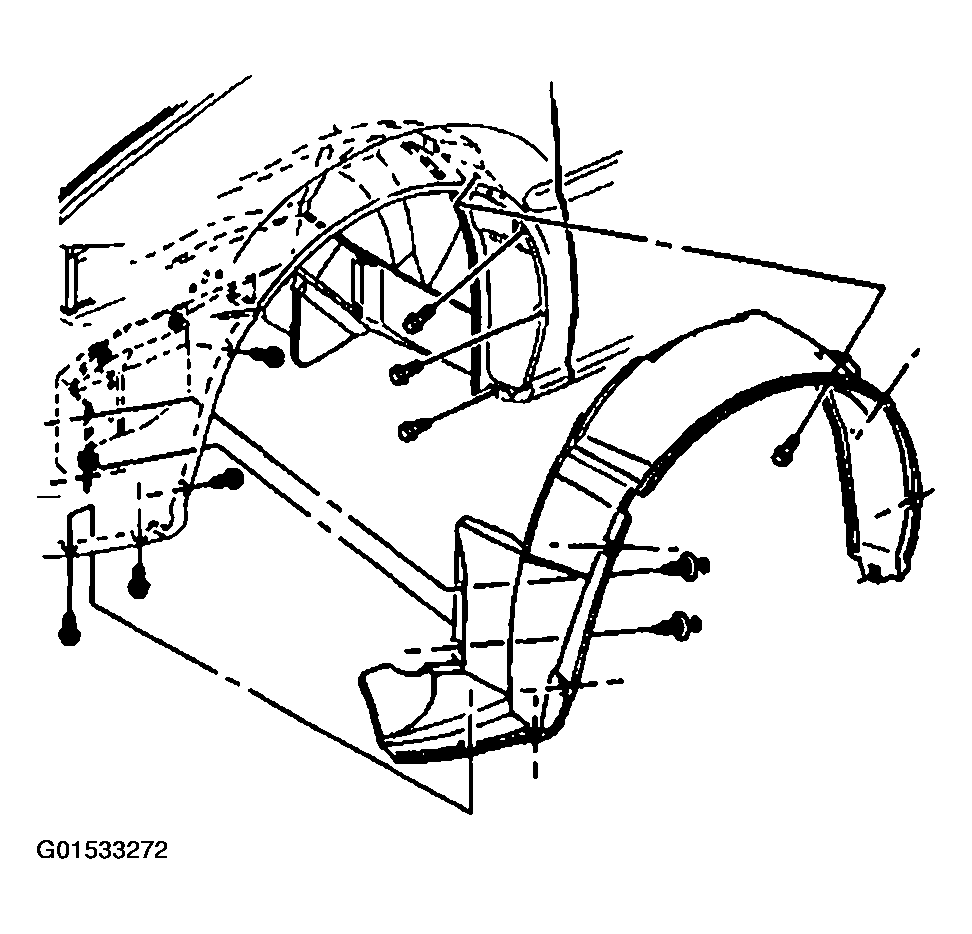

    Fig 1: Removing Front Fender Liner Bolts
    G01533272Courtesy of GENERAL MOTORS CORP.
  5. Remove the fender wheel opening molding. Refer to MOLDING REPLACEMENT - FRONT WHEEL OPENING  in Exterior Trim (for Pontiac only).
  6. Remove the front fender liner bolts.
  7. Remove the front fender liner from the inner fender and the front bumper fascia.

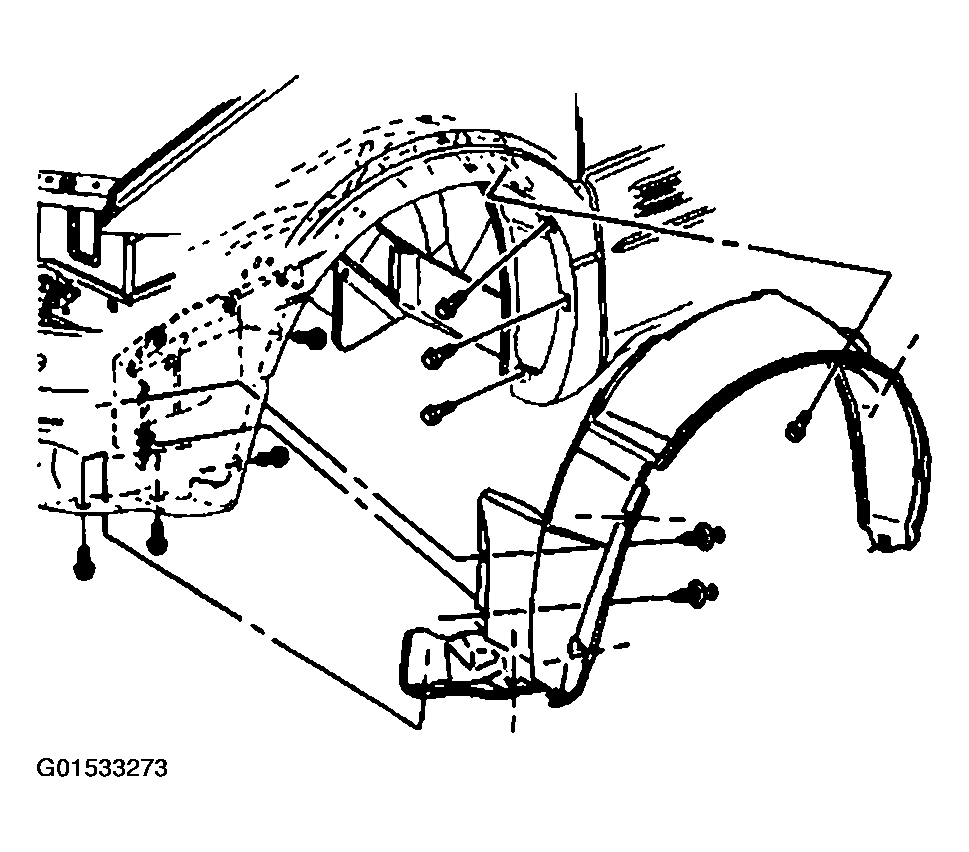

    Fig 2: Removing Front Fender Liner From Inner Fender And Front Bumper Fascia
    G01533273Courtesy of GENERAL MOTORS CORP.
