Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and Support the hood.
  2. Reposition the electrical center from the right front end sheet metal diagonal brace. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT  in Wiring Systems.
  3. Remove the windshield wiper system module cover. Refer toWIPER MODULE COVER REPLACEMENT  in Wipers/Washer Systems.
  4. Remove the bolts from the rear hole in front and sheet metal diagonal brace at the wheelhouse.
  5. Remove the bolts from the front of the front end sheet metal diagonal brace at the upper tie bar.
  6. Remove the front end sheet metal diagonal brace from the engine compartment.

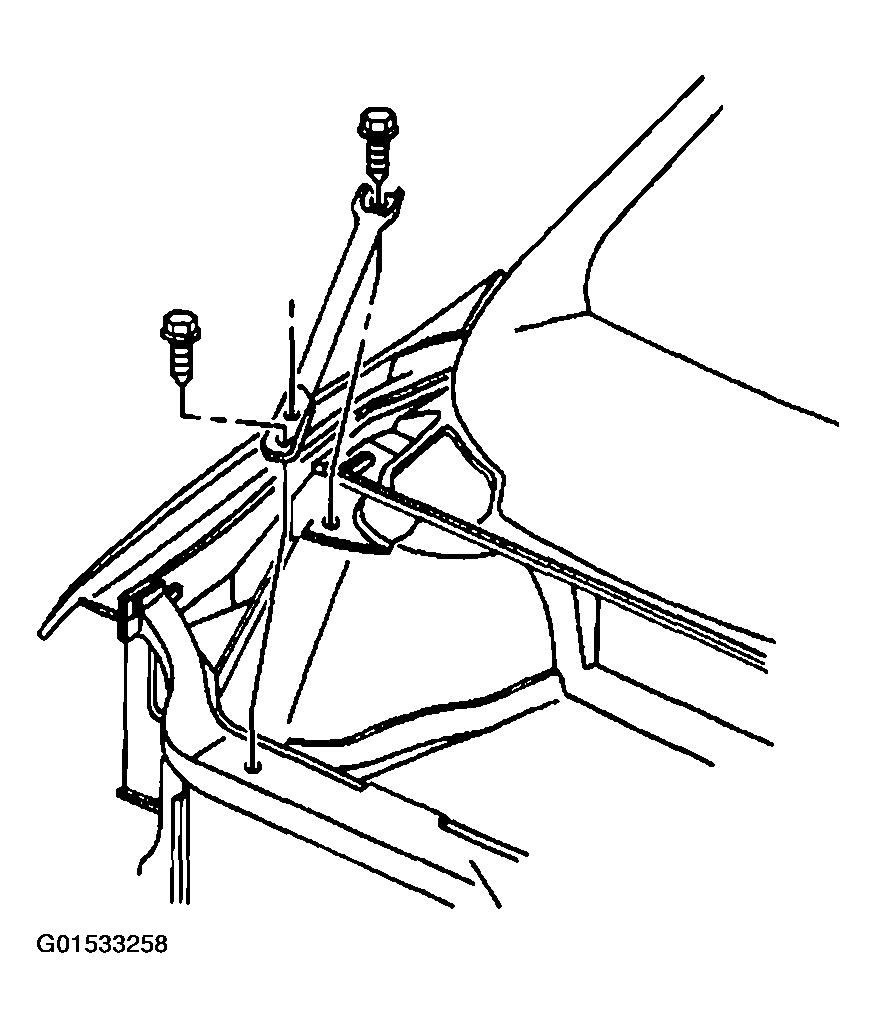

    Fig 1: Removing Front End Sheet Metal Diagonal Brace From Engine Compartment
    G01533258Courtesy of GENERAL MOTORS CORP.
