Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the windshield wiper arms to the up position.
  2. Remove the retainers (1) from the air inlet grille to the body.

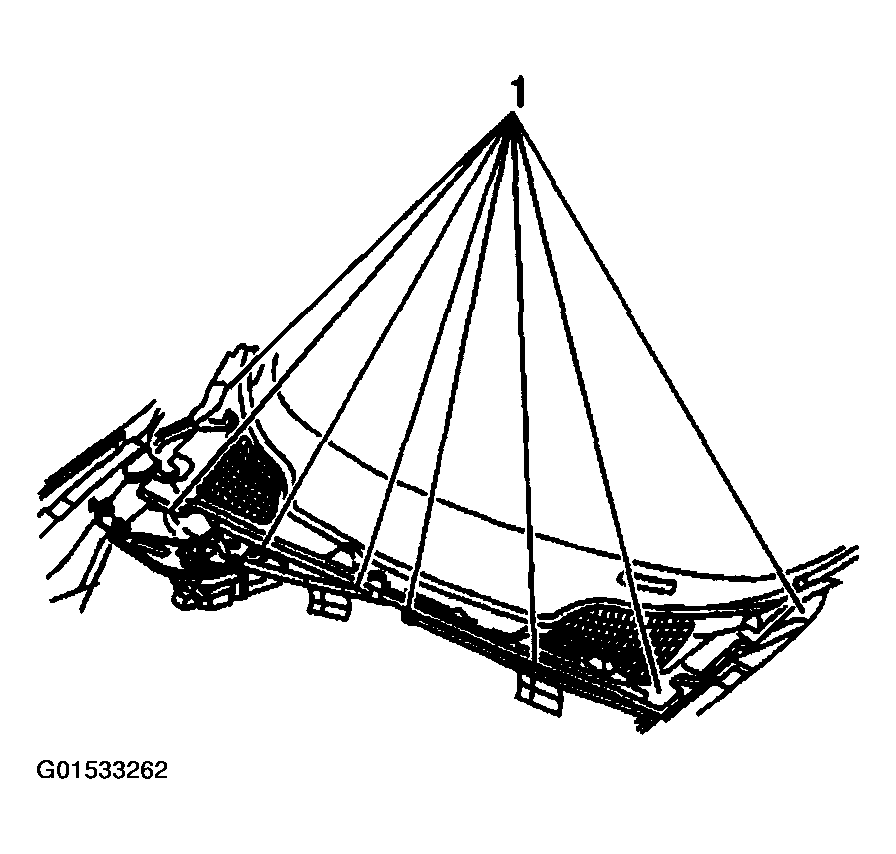

    Fig 1: Removing Retainers From Air Inlet Grille
    G01533262Courtesy of GENERAL MOTORS CORP.
  3. Partially remove the air inlet grille from the body.
  4. Remove the washer hose from the air inlet grille.

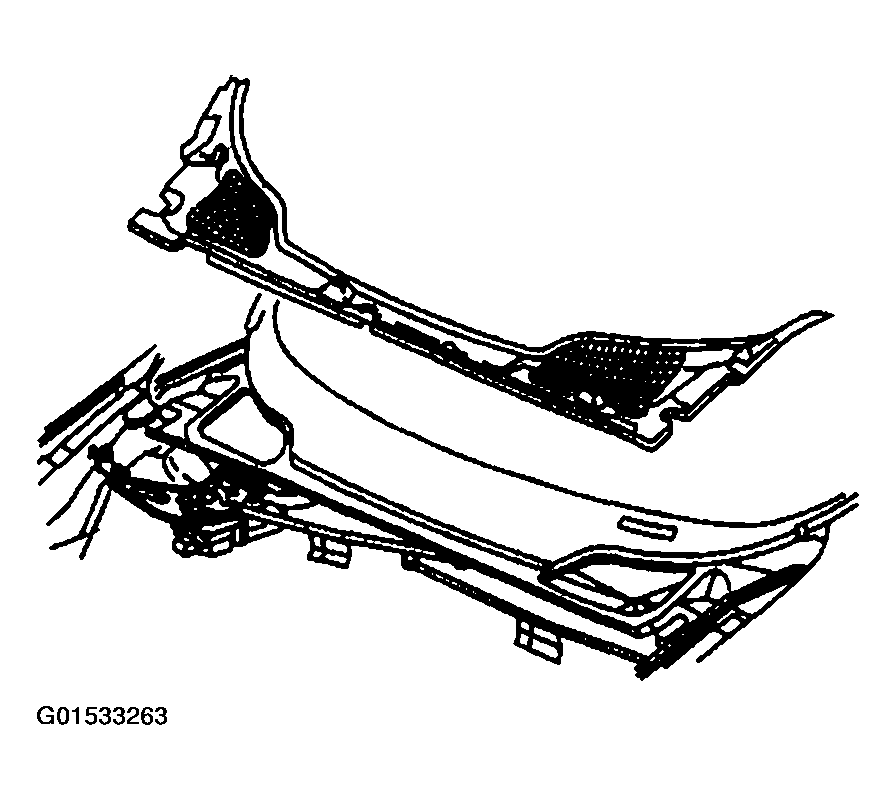

    Fig 2: Remove Washer Hose From Air Inlet Grille
    G01533263Courtesy of GENERAL MOTORS CORP.
