Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)
  2. Use the J 38778  Door Trim Pad and Garnish Clip Remover in order to remove the push-in retainers from the front energy absorber.

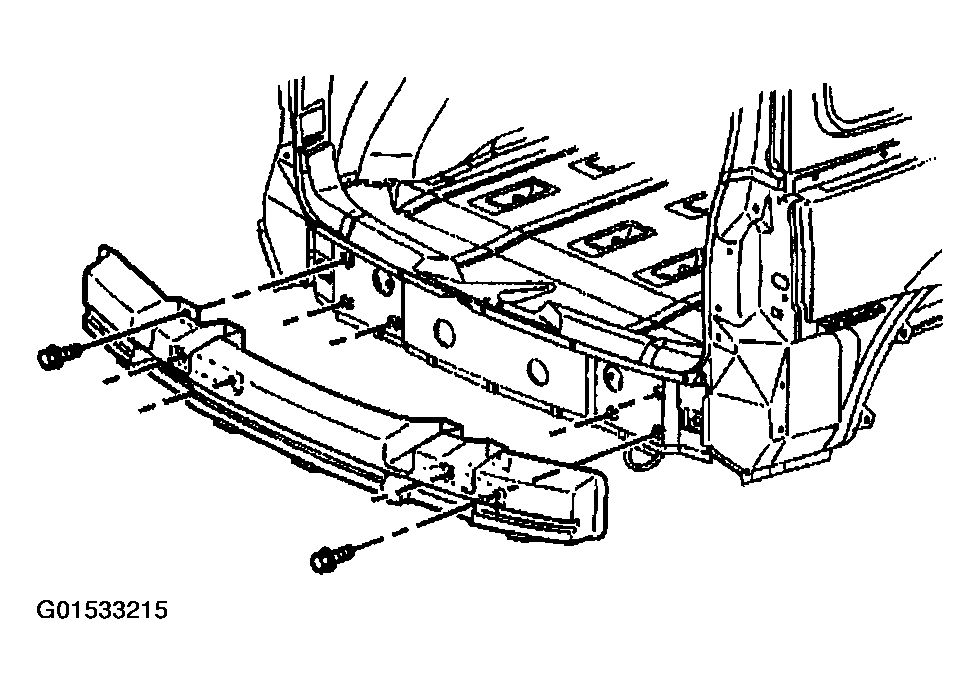

    Fig 1: Removing Push-In Retainers From Front Energy Absorber
    G01533215Courtesy of GENERAL MOTORS CORP.
  3. Remove the energy absorber from the rear impact bar.
  4. Remove the impact bar bolts from the frame rail.
  5. Remove the rear impact bar from the frame rail.

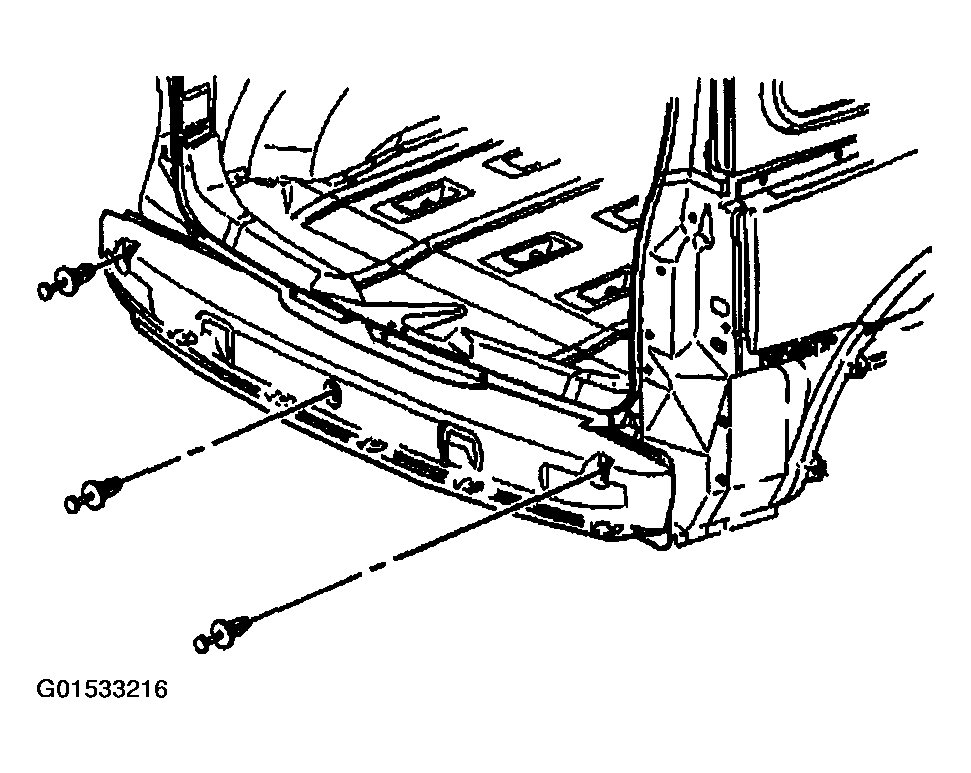

    Fig 2: Removing Rear Impact Bar From Frame Rail
    G01533216Courtesy of GENERAL MOTORS CORP.
