Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear impact bar to the frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear impact bar bolts to the frame rail.
  3. Tighten  : Tighten the bolts to 50 N.m (37 lb ft).

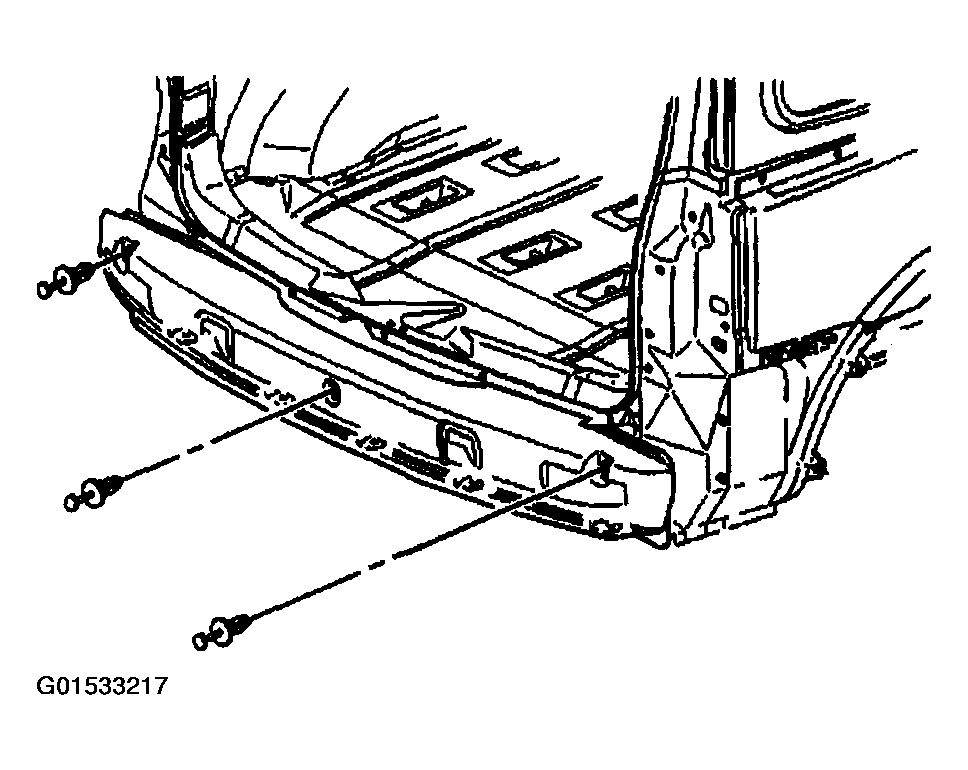

    4. Fig 1: Aligning Rear Impact Bar To Frame Rail
    G01533217Courtesy of GENERAL MOTORS CORP.
  4. Install the energy absorber to the rear impact bar.
  5. Install the push-in retainers to the rear energy absorber.
  6. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)   .

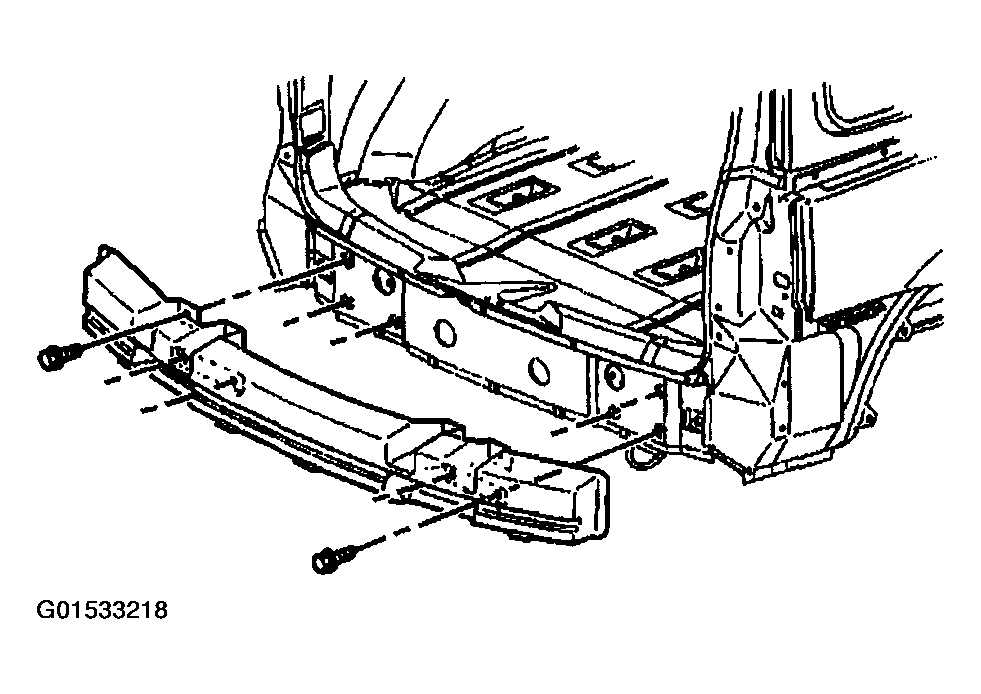

    Fig 2: Installing Energy Absorber To Rear Impact Bar
    G01533218Courtesy of GENERAL MOTORS CORP.
