Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)   or FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)   .
  2. Use the J 38778  in order to remove the push-in retainers from the front bumper energy absorber.
  3. Remove the front bumper energy absorber from the front impact bar.
  4. Remove the front impact bar bolts from the rail.
  5. Remove the front impact bar from the frame rail.

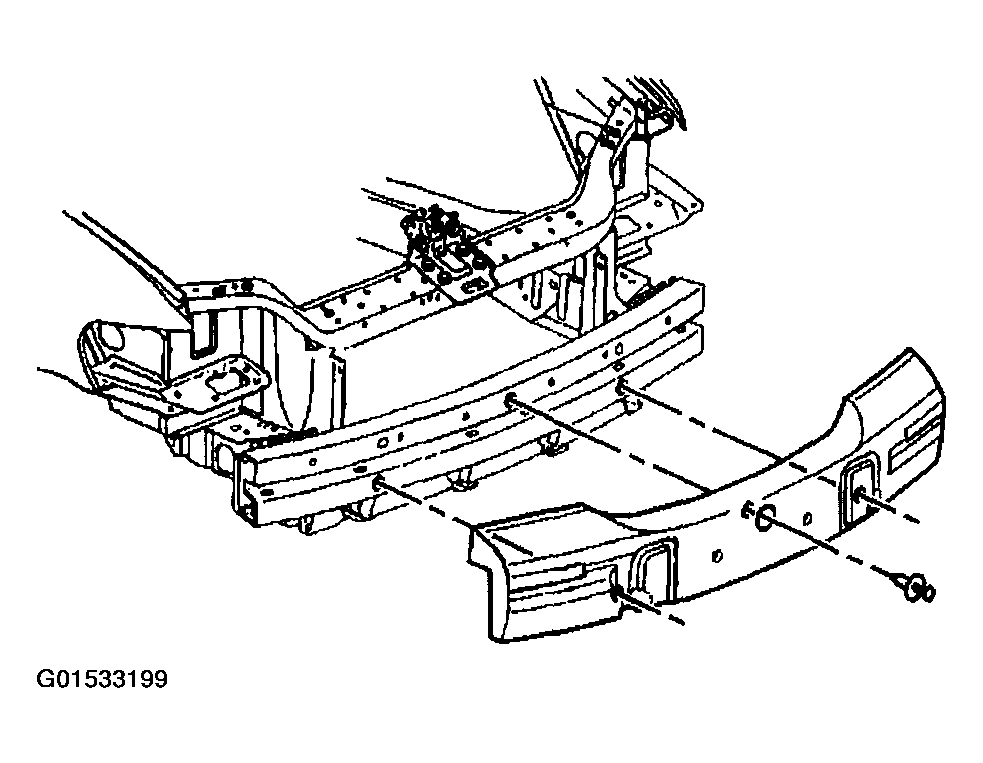

    Fig 1: Removing Front Impact Bar From Frame Rail
    G01533199Courtesy of GENERAL MOTORS CORP.
