Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)   or FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)   .
  2. Use the J 38778  in order to remove the push-in retainers from the front bumper fascia lower support.
  3. Remove the front bumper fascia lower support from the front impact bar.

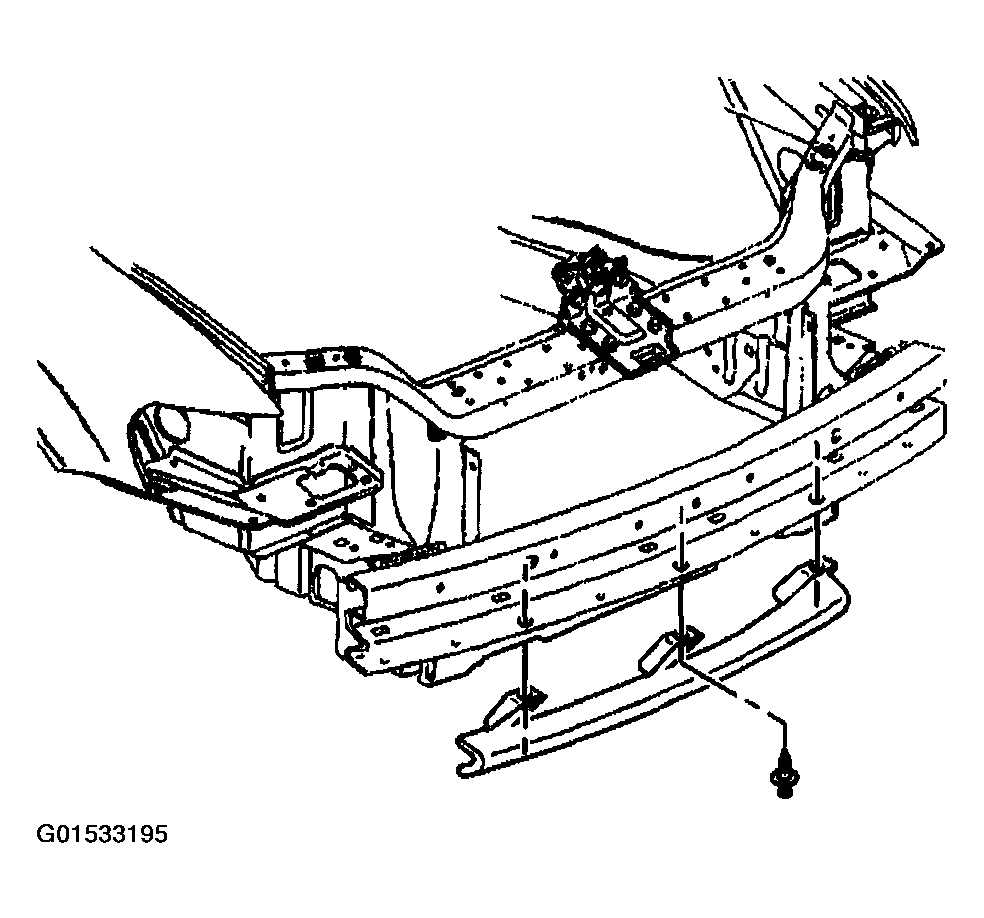

    Fig 1: Removing Front Bumper Fascia Lower Support From Front Impact Bar
    G01533195Courtesy of GENERAL MOTORS CORP.
