Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia lower support to the front impact bar.
  2. Install the push-in retainers to the front bumper fascia lower support.
  3. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)   or FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)   .

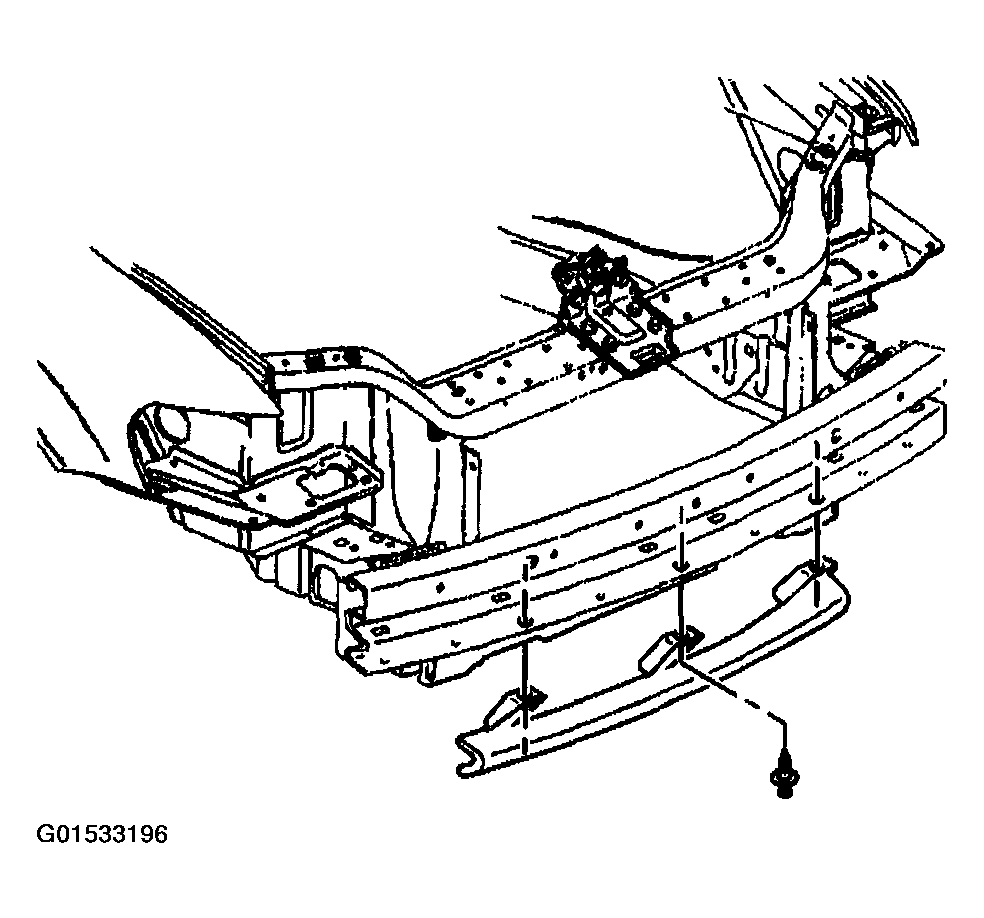

    Fig 1: Installing Front Bumper Fascia Lower Support To Front Impact Bar
    G01533196Courtesy of GENERAL MOTORS CORP.
