Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Use the J 38778  in order to remove the push-in retainers from the upper and lower rear bumper fascia.
  3. Remove the screws at the right and left wheel well from the rear bumper fascia.
  4. Remove the palnut from the rear bumper fascia outer retainer.
  5. Remove the rear bumper fascia from the vehicle.

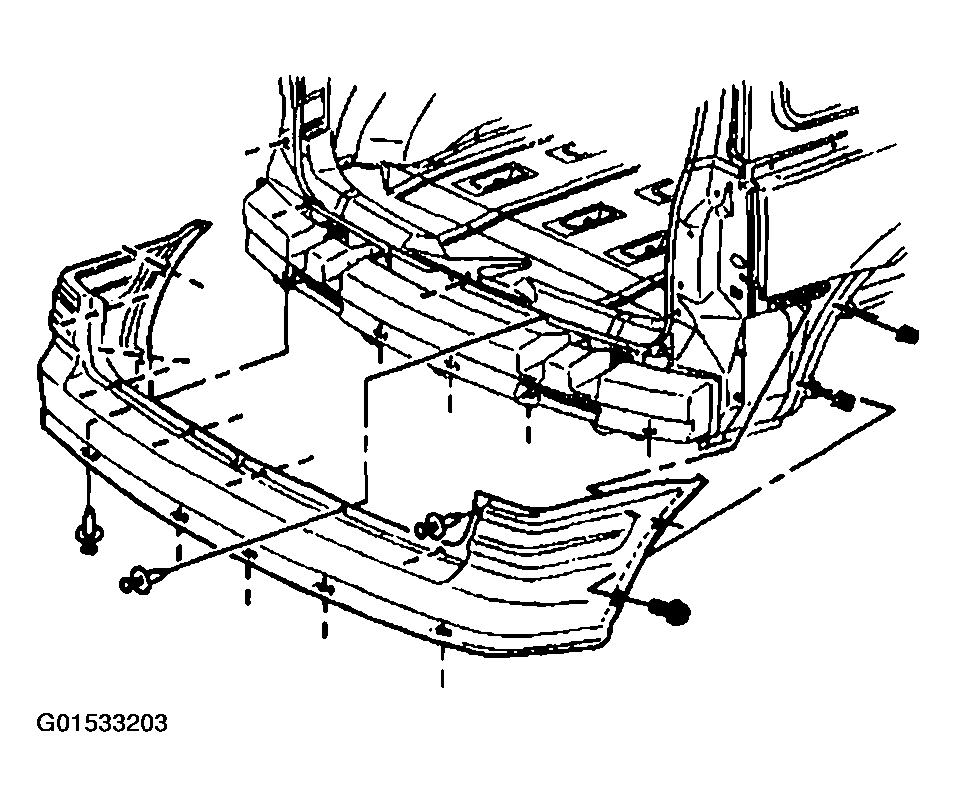

    Fig 1: Removing Rear Bumper Fascia From Vehicle
    G01533203Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear bumper fascia reflectors. Refer to FASCIA REFLECTOR REPLACEMENT - REAR BUMPER   .
    Fig 2: Removing Rear Bumper Fascia Reflectors
    G01533204Courtesy of GENERAL MOTORS CORP.
