Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear bumper fascia to the rear bumper fascia outer support.

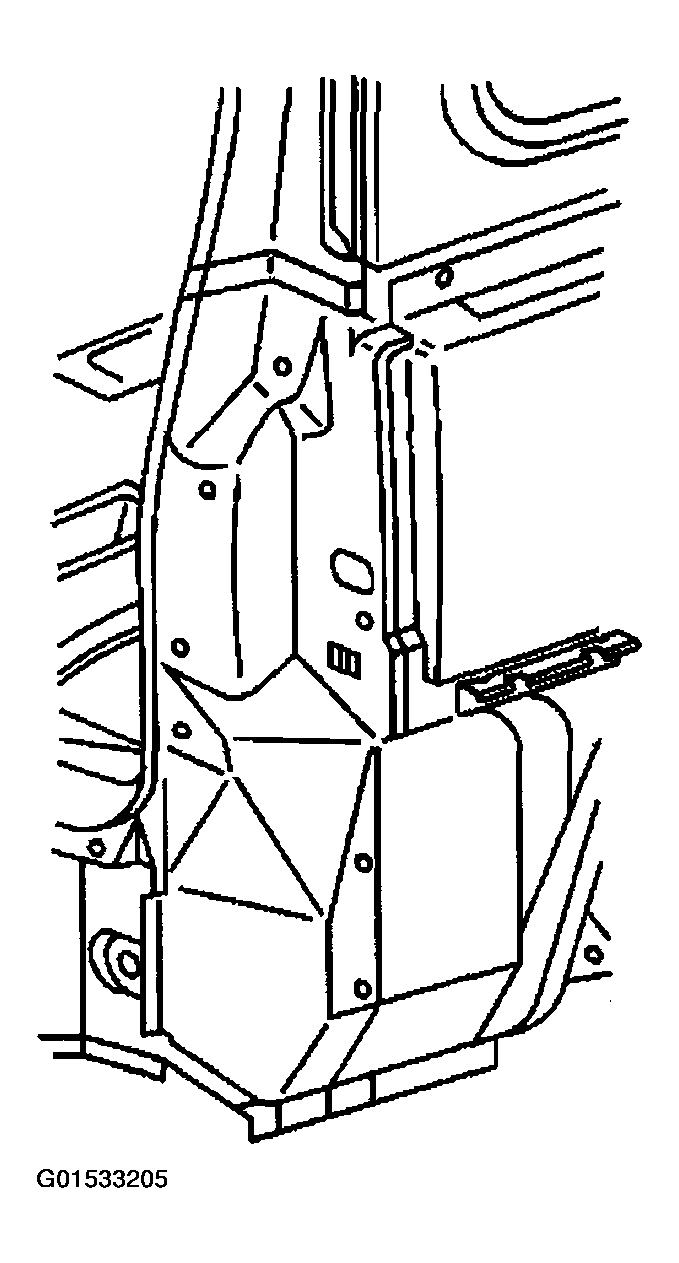

    Fig 1: Aligning Rear Bumper Fascia To Rear Bumper Fascia Outer Support
    G01533205Courtesy of GENERAL MOTORS CORP.
  2. Align the rear bumper fascia outer retainer to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the palnut to the rear bumper fascia outer retainer.
  4. Tighten
  5. Tighten the palnut to 2 N.m (18 lb in).
    Fig 2: Aligning Rear Bumper Fascia Outer Retainer To Body
    G01533206Courtesy of GENERAL MOTORS CORP.
  6. Install the push-in retainers to the upper and lower rear bumper fascia.
  7. Install the screws at the right and left wheel well to the rear bumper fascia.
  8. Tighten
  9. Tighten the rear bumper fascia wheel well screws to 3 N.m (26 lb in).
    Fig 3: Installing Push-In Retainers To Upper And Lower Rear Bumper Fascia
    G01533207Courtesy of GENERAL MOTORS CORP.
  10. Install the rear bumper fascia reflectors. Refer to FASCIA REFLECTOR REPLACEMENT - REAR BUMPER   .
  11. Close the lift gate.
    Fig 4: Installing Rear Bumper Fascia Reflectors
    G01533208Courtesy of GENERAL MOTORS CORP.
