Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front bumper to the front impact bar and to the body.
  2. Install the push-in retainers to the upper and lower front bumper fascia.
  3. Install the front park/turn signal/sidemarker lamp. Refer to PARK/TURN SIGNAL/SIDE MARKER LAMP REPLACEMENT  in Lighting Systems.
  4. Install the right and left front fender liner. Refer to FENDER LINER REPLACEMENT  in Body Front End.
  5. Install both of the front tire and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  6. Lower the vehicle.

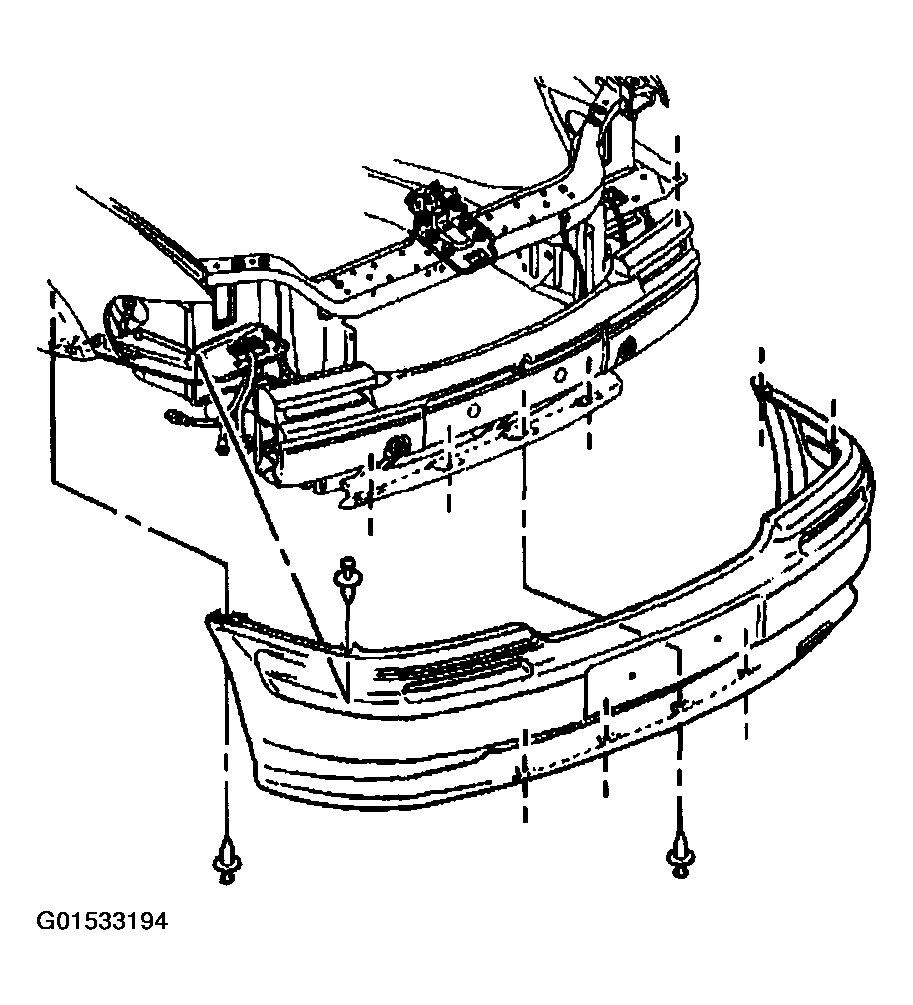

    Fig 1: Installing Front Bumper To Front Impact Bar
    G01533194Courtesy of GENERAL MOTORS CORP.
