Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)   .
  2. Remove the rear object sensor wiring harness from the rear energy absorber, if equipped.
  3. Remove the rear energy absorber from the rear bumper fascia by pushing in on the locking tabs at the center of the rear bumper fascia and pulling out.

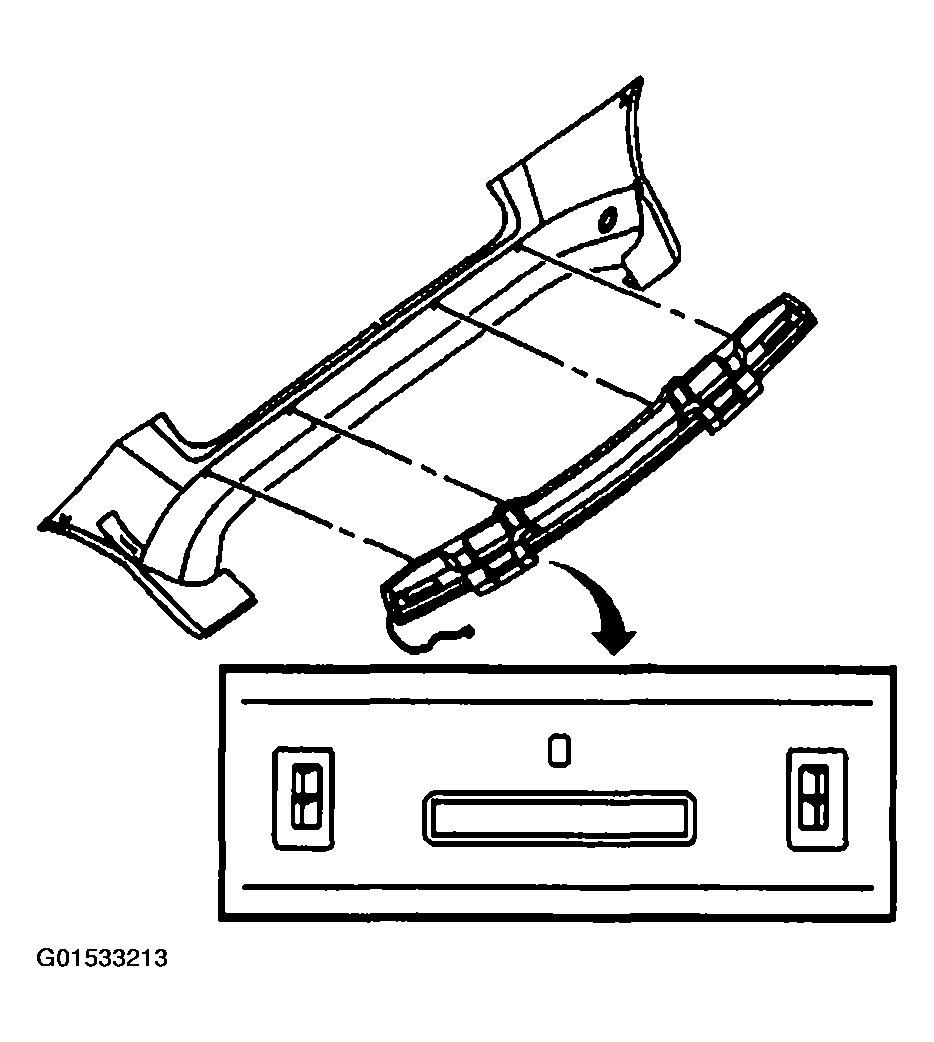

    Fig 1: Removing Rear Energy Absorber From Rear Bumper Fascia
    G01533213Courtesy of GENERAL MOTORS CORP.
