Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear energy absorber to the rear bumper fascia and push in to lock into place.
  2. Install the rear object sensor wiring harness to the rear energy absorber, if equipped.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)

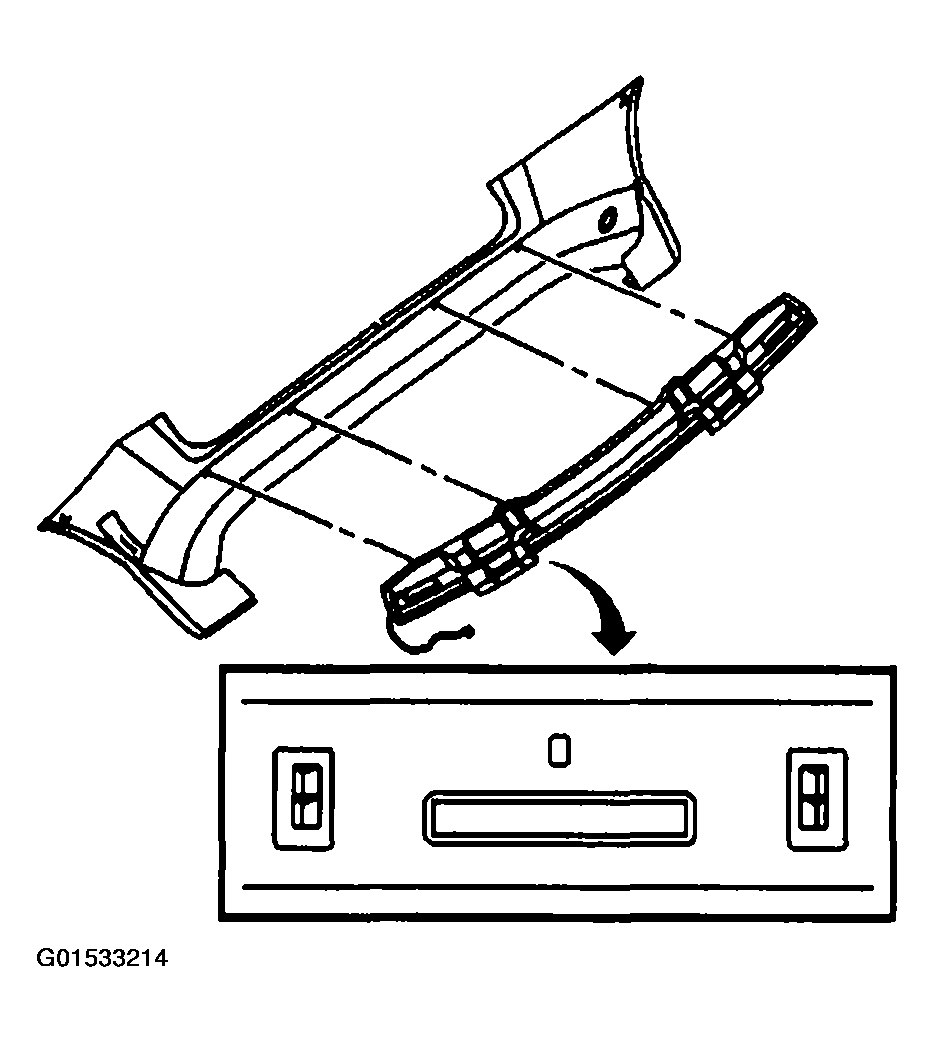

    Fig 1: Aligning Rear Energy Absorber To Rear Bumper Fascia
    G01533214Courtesy of GENERAL MOTORS CORP.
