Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)   or FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)   .
  2. Remove the front energy absorber from the front bumper fascia by pushing out on the tabs at the center of the front bumper fascia and pulling the front energy absorber out.

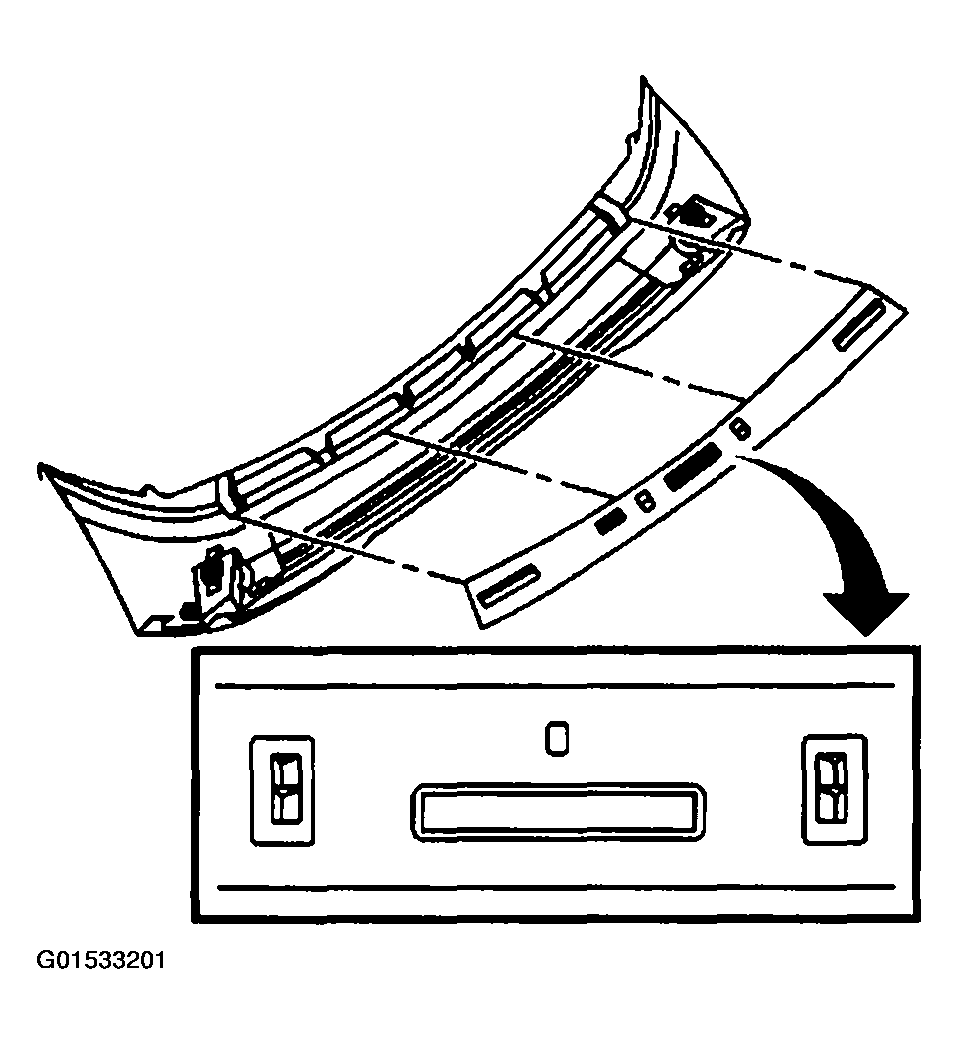

    Fig 1: Removing Front Energy Absorber From Front Bumper Fascia
    G01533201Courtesy of GENERAL MOTORS CORP.
