Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door molding. Refer to MOLDING REPLACEMENT - BODY SIDE DOOR   .
    CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  2. To release the push-in retainers, perform the following steps:
    1. Drill a 3 mm (0.125 in) hole into the center locking pin of the push-in retainer.
    2. Install a 3 mm (0.125 in) screw into the center locking pin of the push-in retainer.
    3. Use a pair of pliers to pull out the screw and unlock the push-in retainer.
  3. Use a J 25070  to heat the upper edge of the molding retainer. Use a circular motion 152 mm (6 in) from the retainer for 30 seconds.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE in Cautions and Notices.
  4. Use a plastic flat-bladed tool to remove the retainer from the outer door panel.

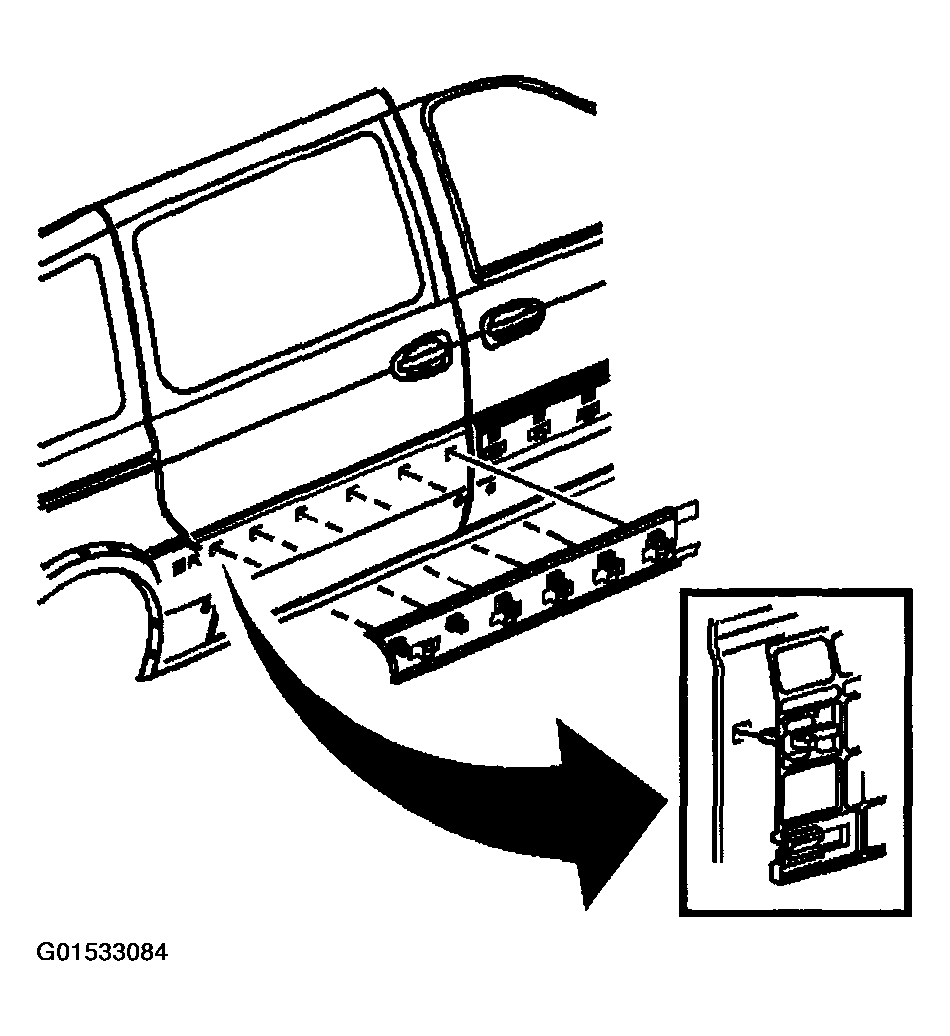

    Fig 1: Removing Retainer From Outer Door Panel
    G01533084Courtesy of GENERAL MOTORS CORP.
