Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the retainer is approximately room temperature 22°C (72°F).
  2. Use isopropyl alcohol to clean the area of the outer door panel where the molding retainer will be installed.

    Important:  Do not touch the adhesive backing of the molding retainer.

  3. Remove the protective liner from the back of the molding retainer.
  4. Align the push-in retainers to the holes in the outer door panel.
  5. Press the molding to the outer door panel until fully seated.
  6. Press on the center locking pins until the retainer is fully seated.
  7. Install the side door molding. Refer to MOLDING REPLACEMENT - DOOR BODY SIDE   .

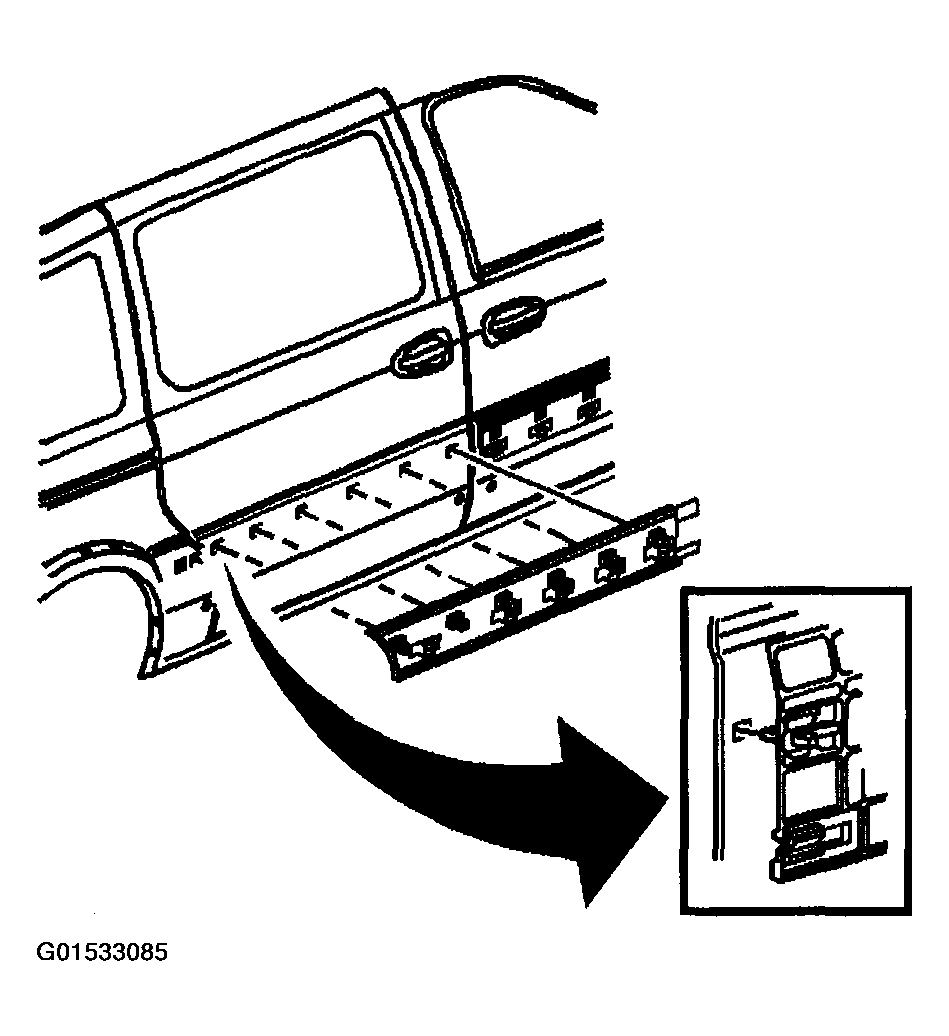

    Fig 1: Aligning Push-In Retainers To Holes In Outer Door Panel
    G01533085Courtesy of GENERAL MOTORS CORP.
