Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door molding. Refer to MOLDING REPLACEMENT - BODY SIDE DOOR   .
  2. Use a J 25070  to heat the upper edge of the molding retainer using a circular motion 152 mm (6 in) from the retainer for 30 seconds.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE in Cautions and Notices.
  3. Use a plastic flat-bladed tool to remove the retainer from the sliding door outer panel.

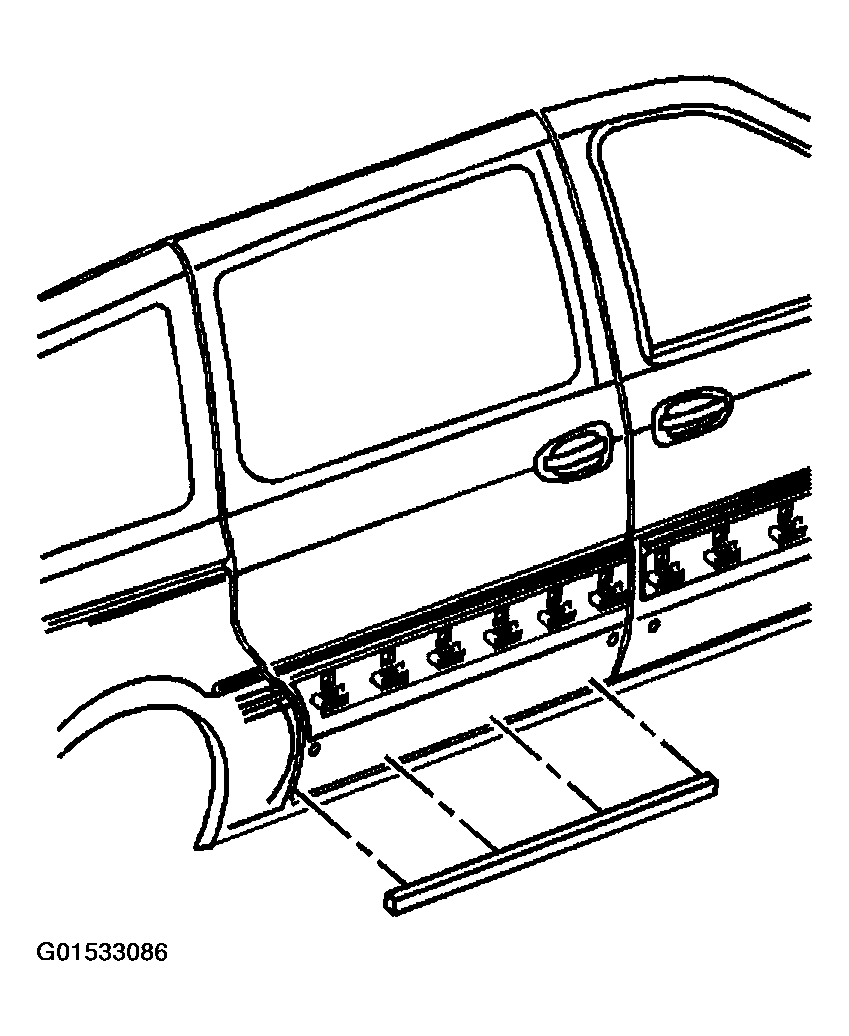

    Fig 1: Removing Retainer From Sliding Door Outer Panel
    G01533086Courtesy of GENERAL MOTORS CORP.
