Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Align the rear rocker molding retainer to the stud on the rocker panel.

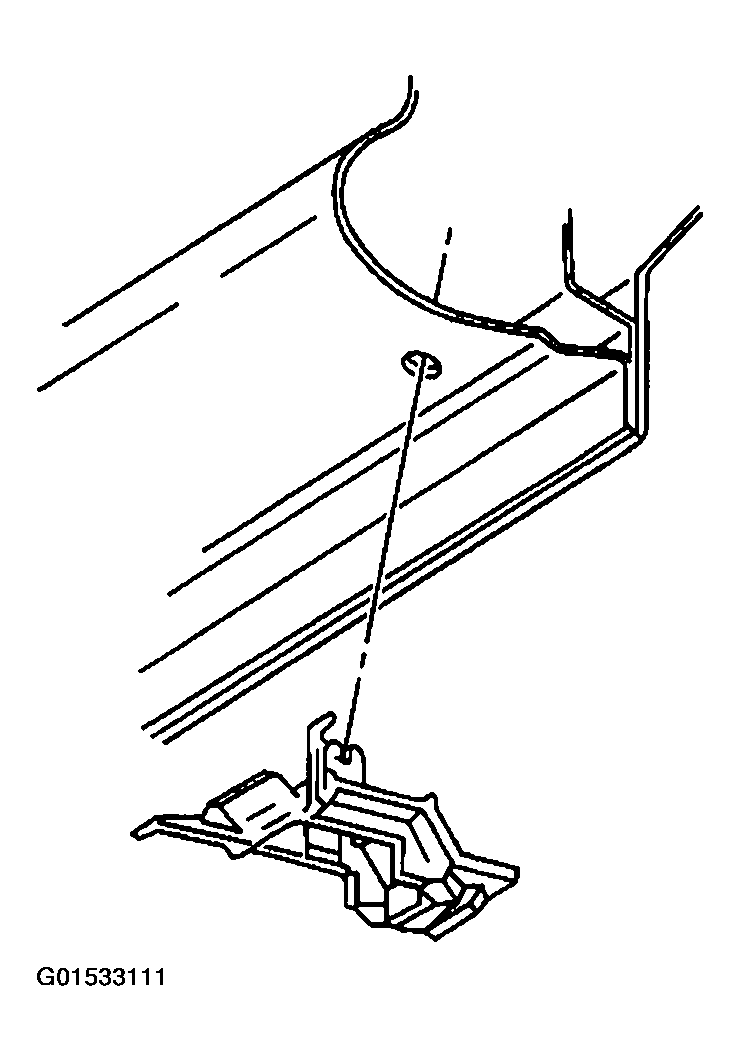

Fig 1: Installing Rear Rocker Molding Retainer To Stud On Rocker Panel
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nut to the rear rocker molding retainer.
Tighten

Tighten the rear rocker molding retainer nut to 2 N.m (18 lb in).

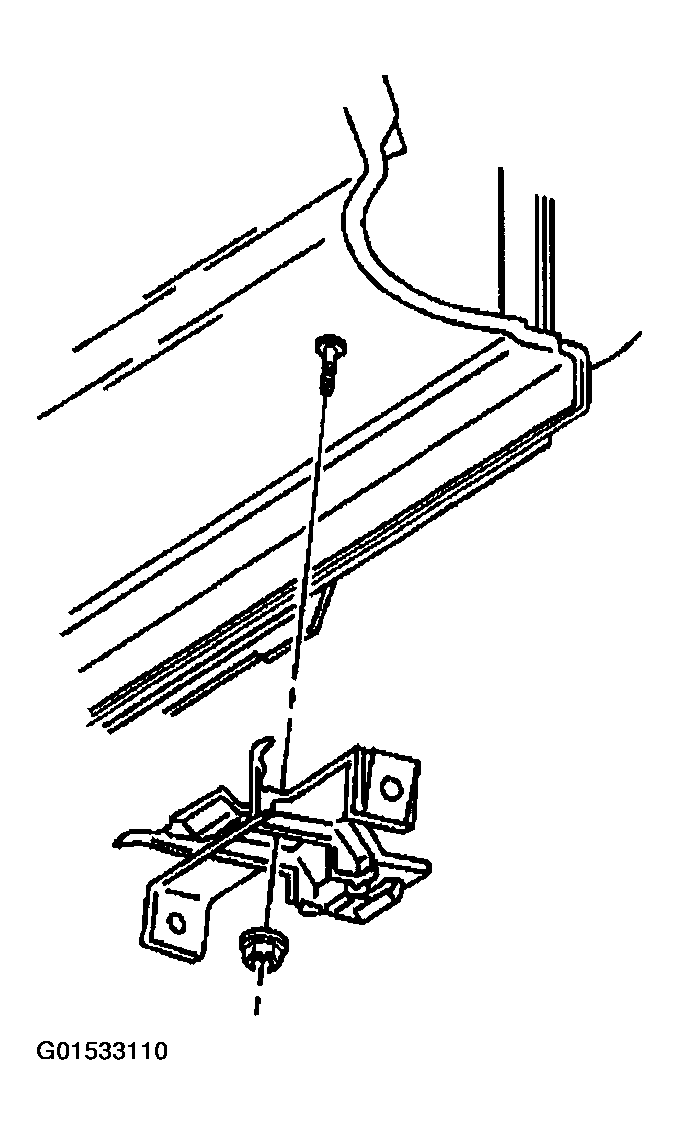

Fig 2: Installing Nut To Rear Rocker Molding Retainer
Courtesy of GENERAL MOTORS CORP.
Align and snap the plugs into the remainder of the rocker molding retainers in the rocker panel.

Fig 3: Aligning And Snapping Plugs Into Remainder Of Rocker Molding Retainers In Rocker Panel
Courtesy of GENERAL MOTORS CORP.
Align the rocker molding to the rocker molding retainers.
Position the rear of the rocker molding flush to the wheelhouse opening.

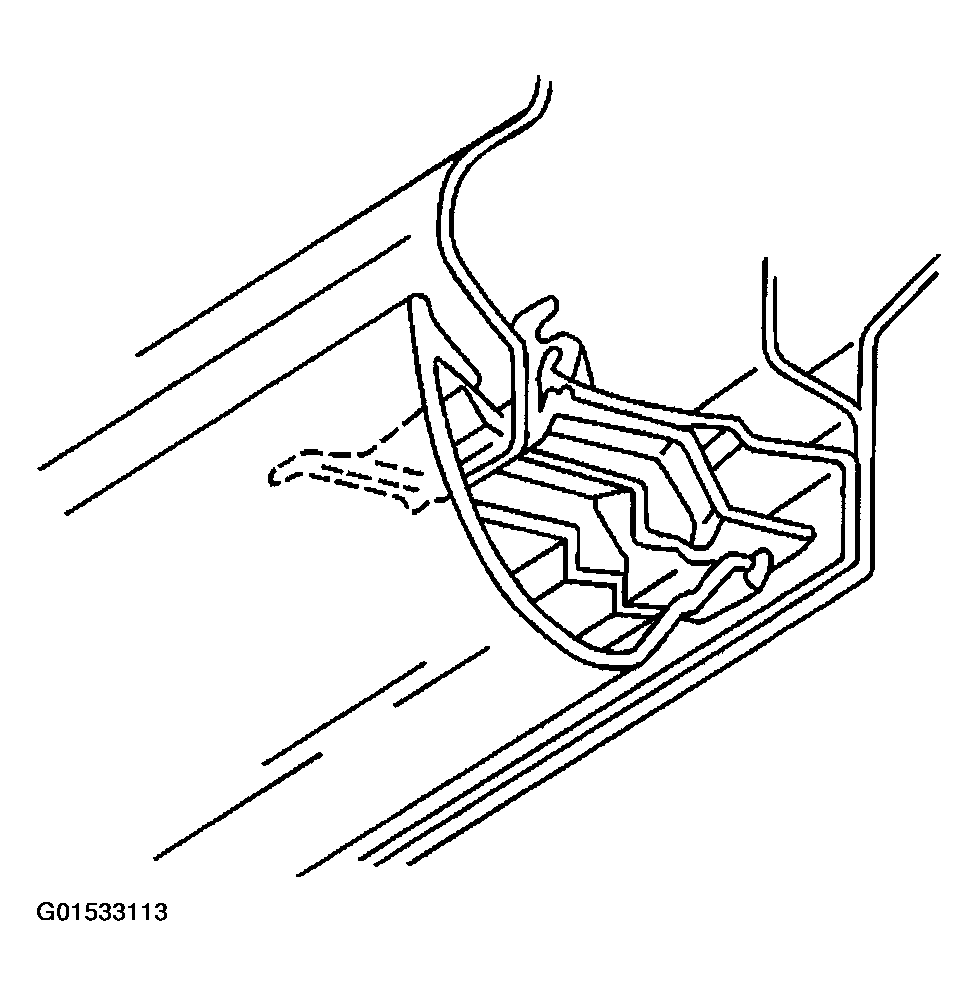

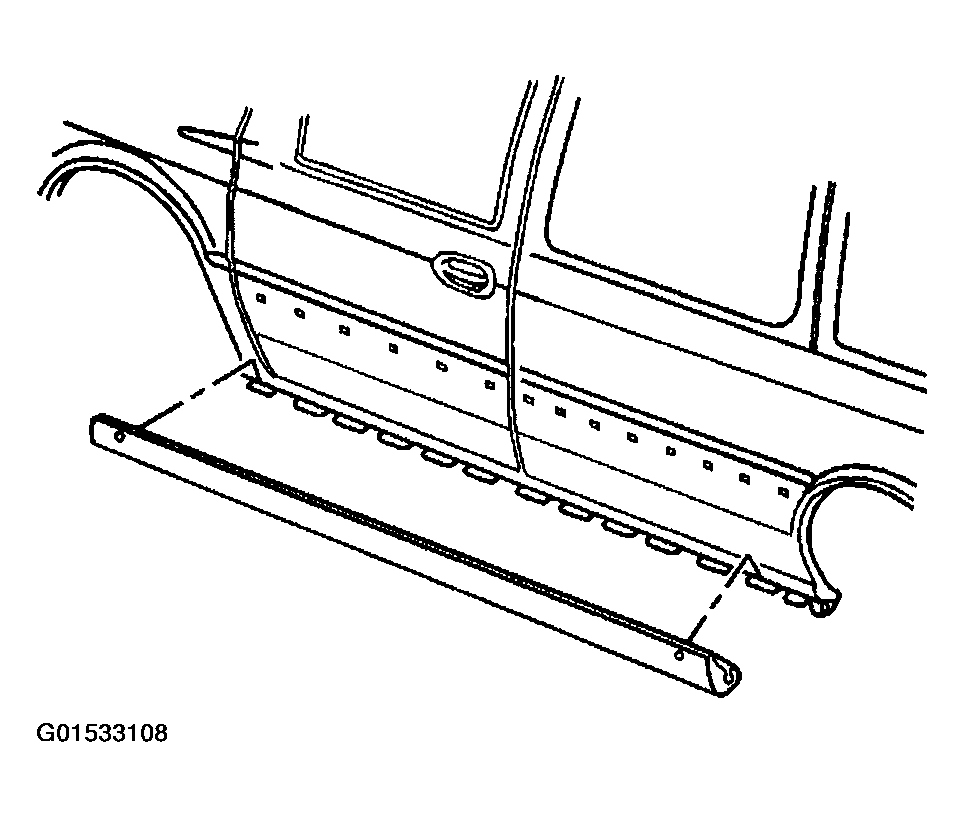

Fig 4: Aligning Rocker Molding To Rocker Molding Retainers
Courtesy of GENERAL MOTORS CORP.
Tuck the upper flange of the rocker molding over the retainers.
Roll the rocker molding inboard inserting the rocker molding into the retainers.

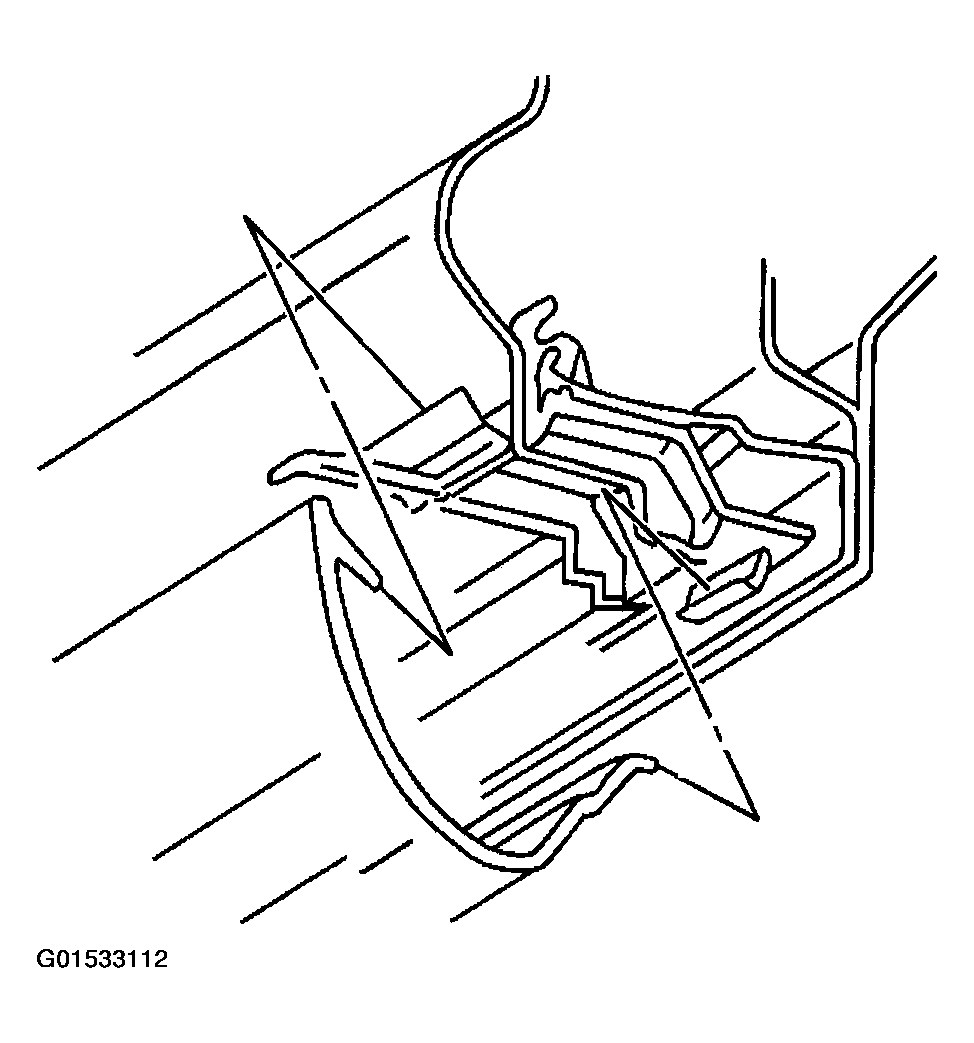

Fig 5: Inserting Rocker Molding Into Retainers
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainer at the rear of the rocker molding.
Install the fender splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE in Body Front End.

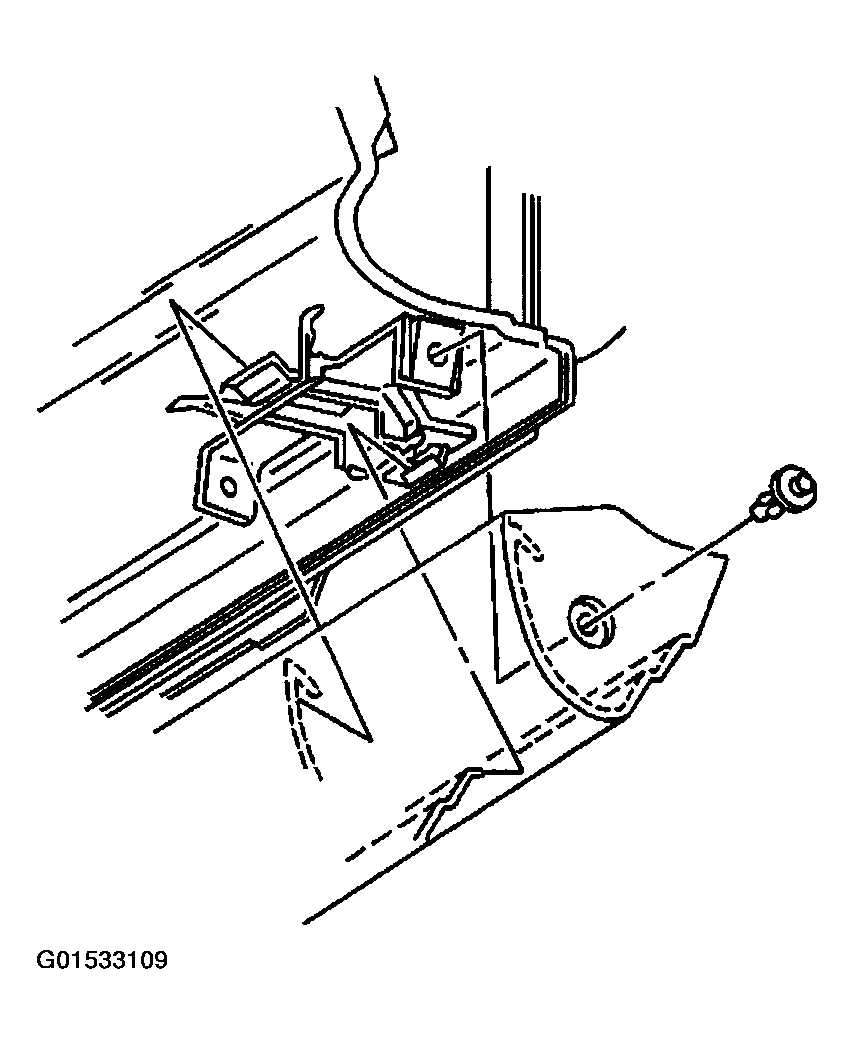

Fig 6: Installing Push-In Retainer At Rear Of Rocker Molding
Courtesy of GENERAL MOTORS CORP.
