Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

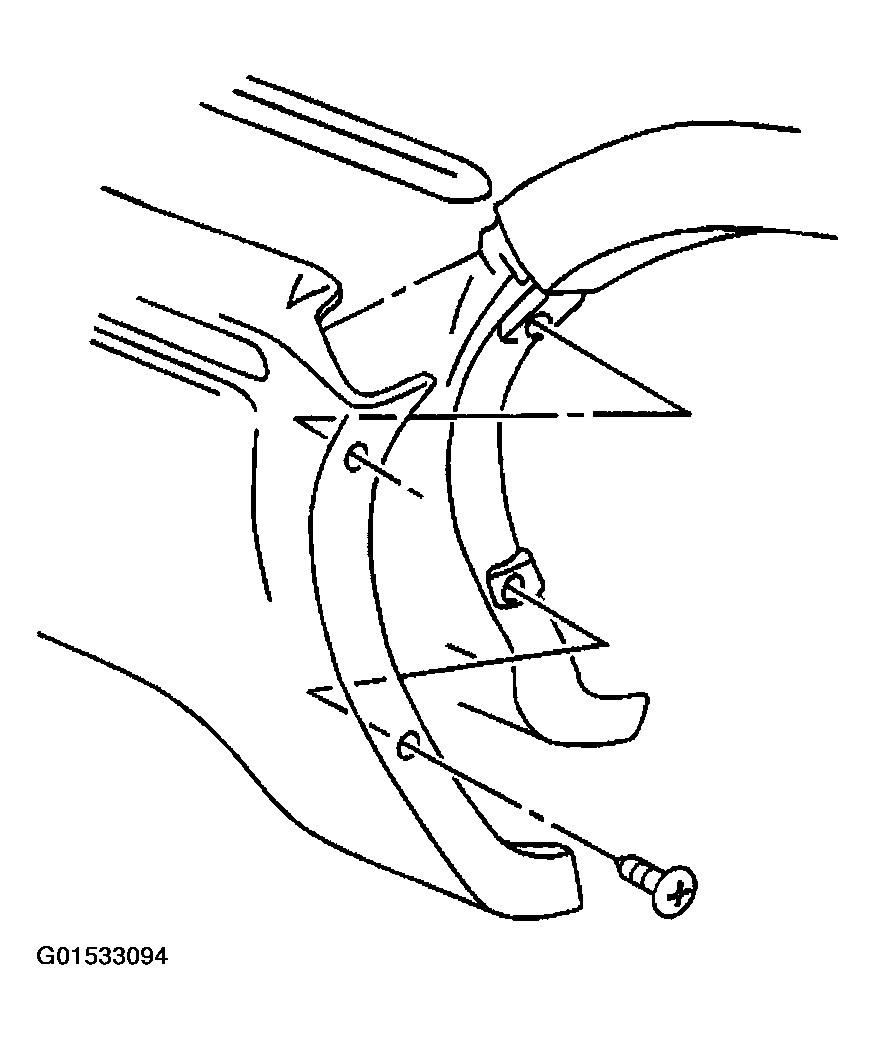

Remove the screws from the rear quarter molding.

Fig 1: Removing Screws From Rear Quarter Molding
Courtesy of GENERAL MOTORS CORP.

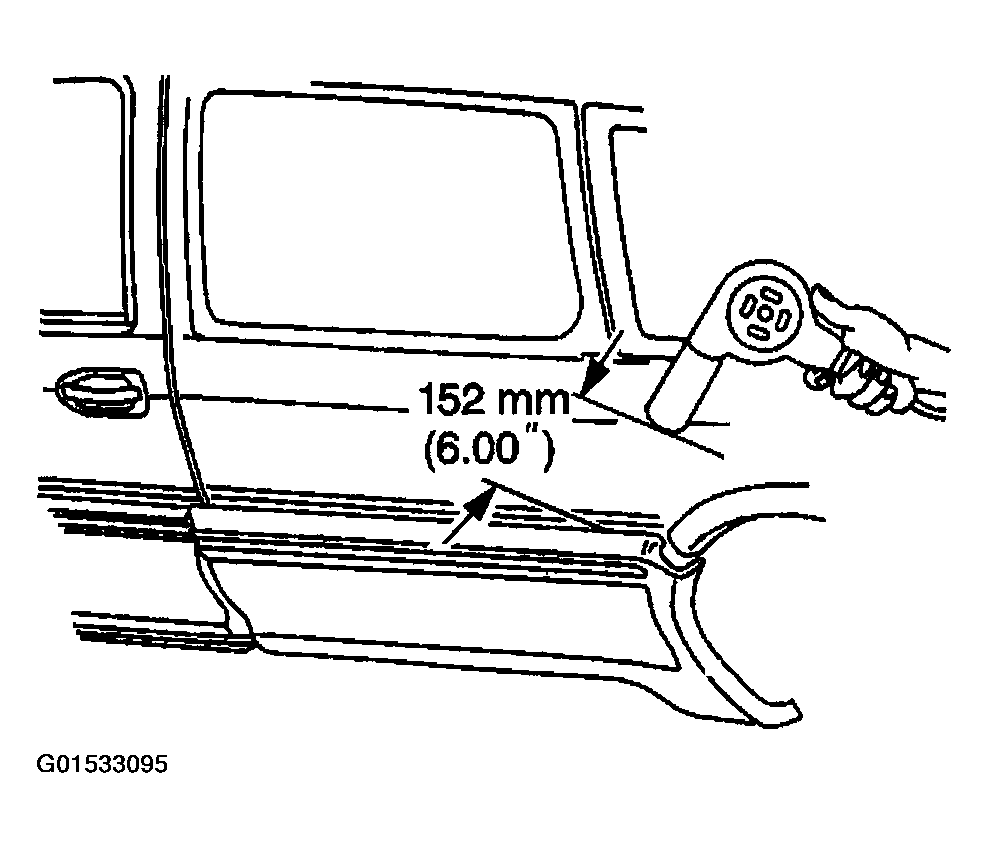

Use J 25070 152 mm (6 in) from the surface in order to heat the lower quarter molding. Use a circular motion for 30 seconds when applying heat.
NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE in Cautions and Notices.
Use a flat-bladed tool in order to remove the quarter molding from the surface.
Pull the lower quarter molding out, in order to release the retainers.
Pull the lower quarter molding out, in order to release from the lower locating pins.
Pull the quarter molding up, in order to release from the upper support.
Remove the quarter molding from the quarter panel.

Fig 2: Removing Quarter Molding From Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Pull out the center pins of the support retainers.

Fig 3: Pulling Out Center Pins Of Support Retainers
Courtesy of GENERAL MOTORS CORP.

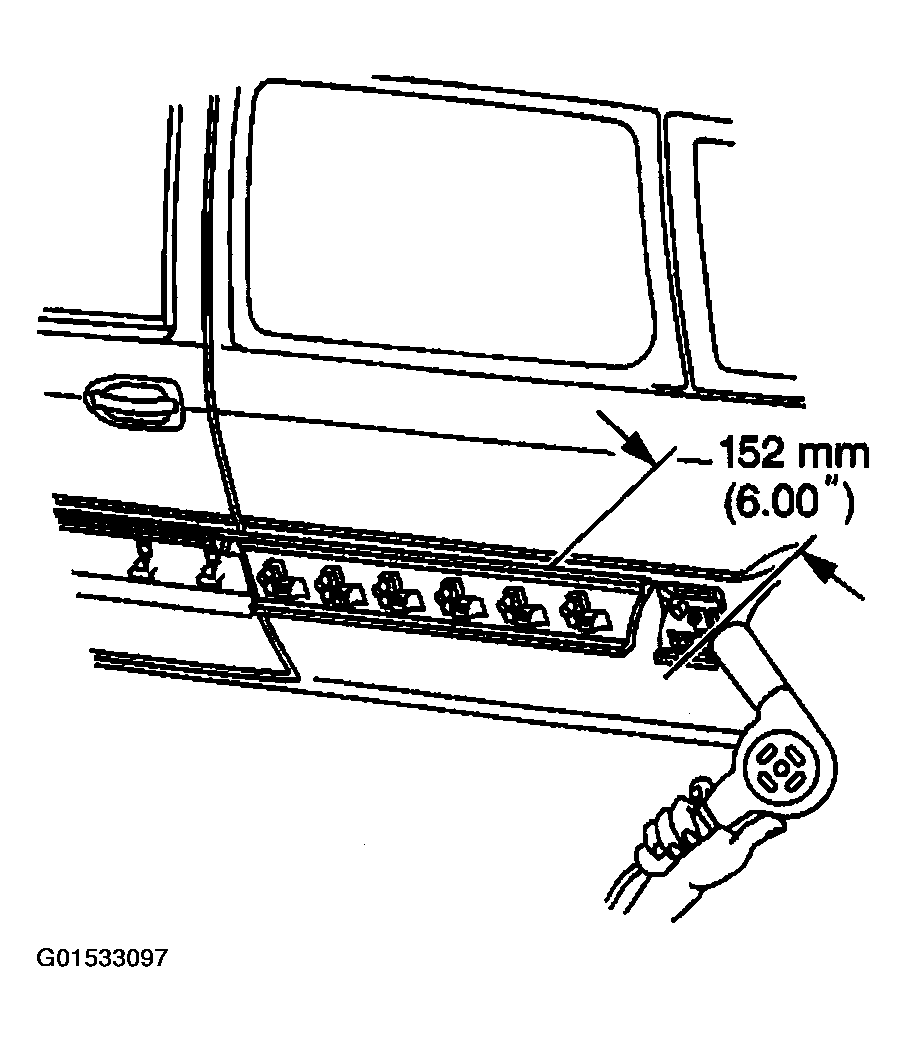

Use J 25070 152 mm (6 in) from the surface in order to heat the lower quarter molding. Use a circular motion for 30 seconds when applying heat.
NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE in Cautions and Notices.
Use a flat-bladed tool in order to remove the quarter molding from the surface.
Remove the quarter molding support from the quarter panel.
Use oil-free naphtha or alcohol in order to clean the body panel.
Remove all traces of adhesive from the body panel.

Fig 4: Removing All Traces Of Adhesive From Body Panel
Courtesy of GENERAL MOTORS CORP.
