Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Do NOT touch the exposed adhesive tape with your hands.
Do NOT allow the exposed adhesive tape collect any dirt or foreign material.

Remove the protective liner from the back side of the support.
Use a heat lamp or heat gun in order to warm the door to a minimum of 21°C (70°F).

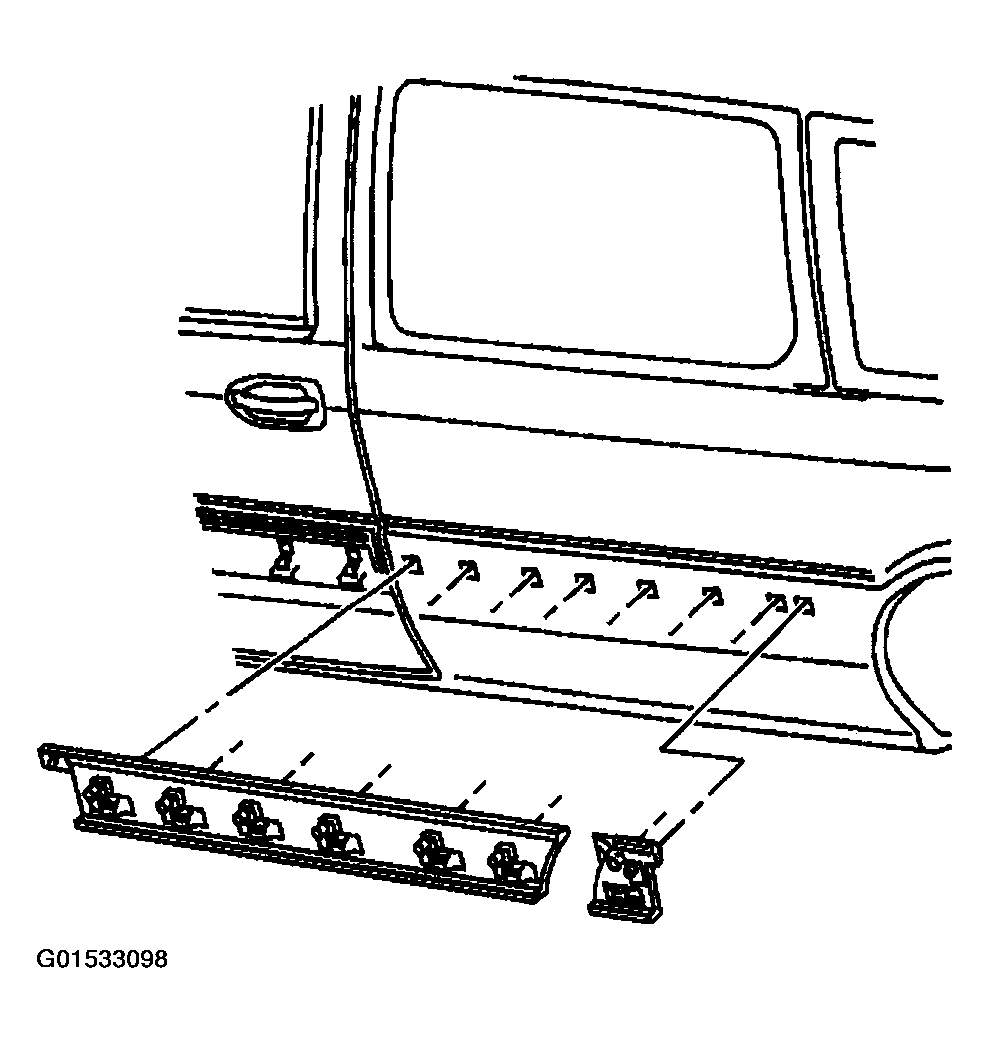

Fig 1: Removing Protective Liner From Back Side Of Support
Courtesy of GENERAL MOTORS CORP.
Starting with the front hole, insert the support retainers into the holes.
Press in the support in order to ensure a maximum bond to the quarter panel.
Press in the center pins of the retainers.
Use a heat lamp or heat gun in order to warm the door to a minimum of 21°C (70°F).

Fig 2: Inserting Support Retainers Into Holes
Courtesy of GENERAL MOTORS CORP.

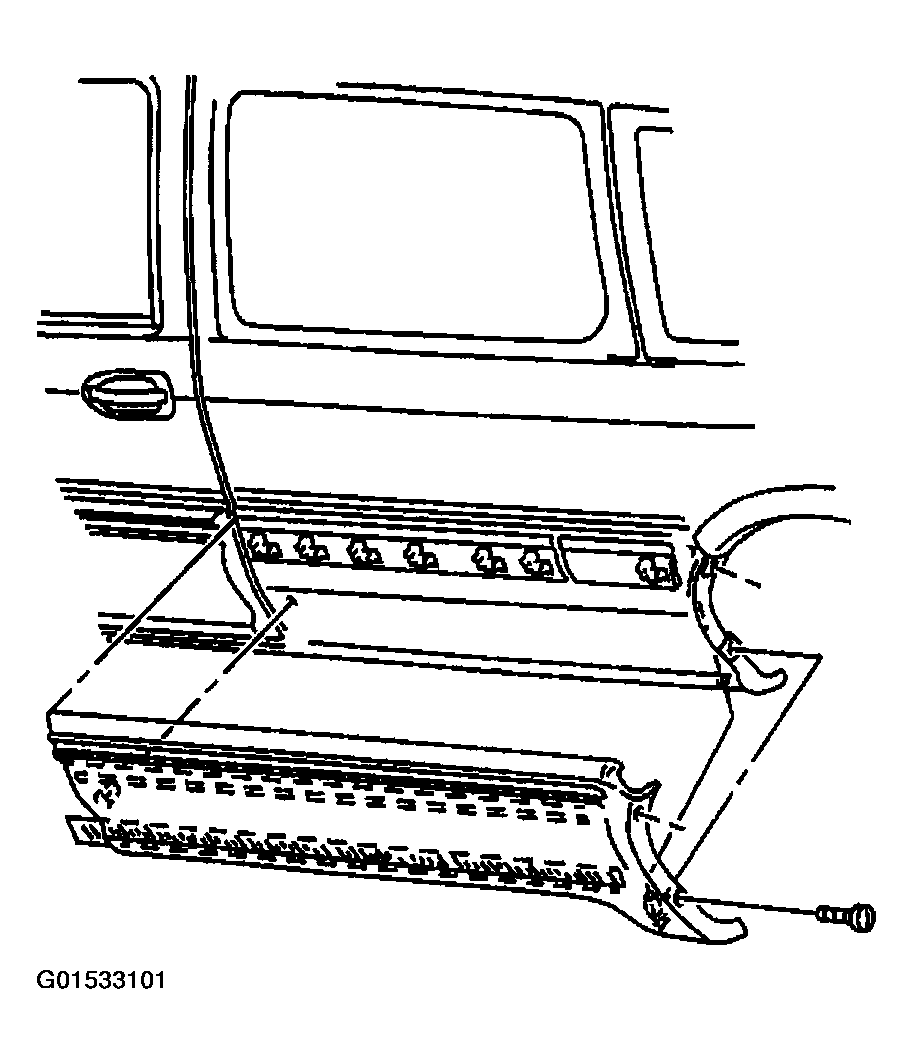

Installing the quarter molding to the quarter panel.

Fig 3: Installing Quarter Molding To Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Press the center flange of the quarter molding into the 2 outer retainers.
Press the locating pins into the holes of the quarter panel.
Press the center flange of the quarter molding into the remainder of the retainers on the quarter panel.
Push the upper portion of the quarter molding inboard over the retainers.
Important: Do NOT touch the adhesive backing.
Remove the protective liner from the back side of the quarter molding.
Press the bottom of the quarter molding inboard in order to ensure a maximum bond to the quarter panel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

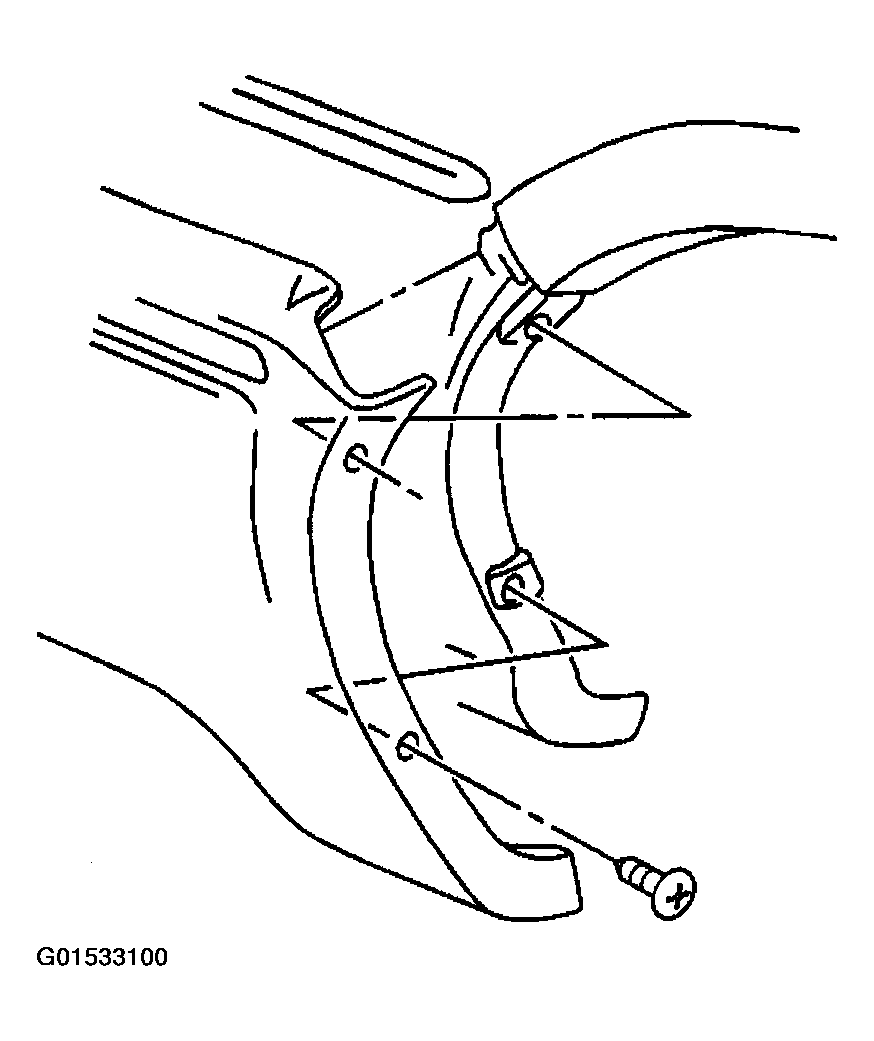

Install the screws to the rear quarter molding.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 4: Install Screws To Rear Quarter Molding
Courtesy of GENERAL MOTORS CORP.
