Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fender wheel opening molding to the holes in the fender.

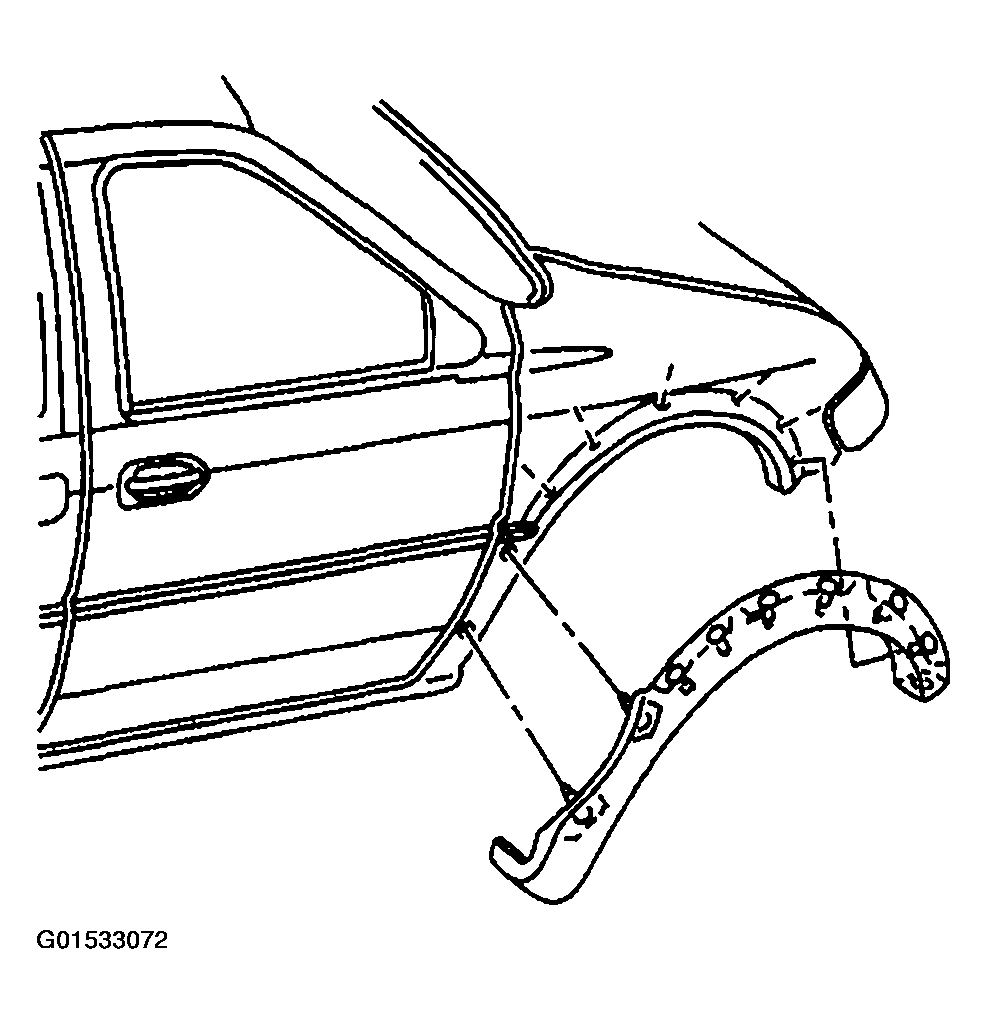

    Fig 1: Installing Fender Wheel Opening Molding To Holes In Fender
    G01533072Courtesy of GENERAL MOTORS CORP.
  2. Press down on the fender wheel opening molding to seat the retainers to the fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the lower rear of the fender wheel opening molding.

    Tighten

    Tighten the lower rear fender wheel opening molding screws to 2 N.m (18 lb in).

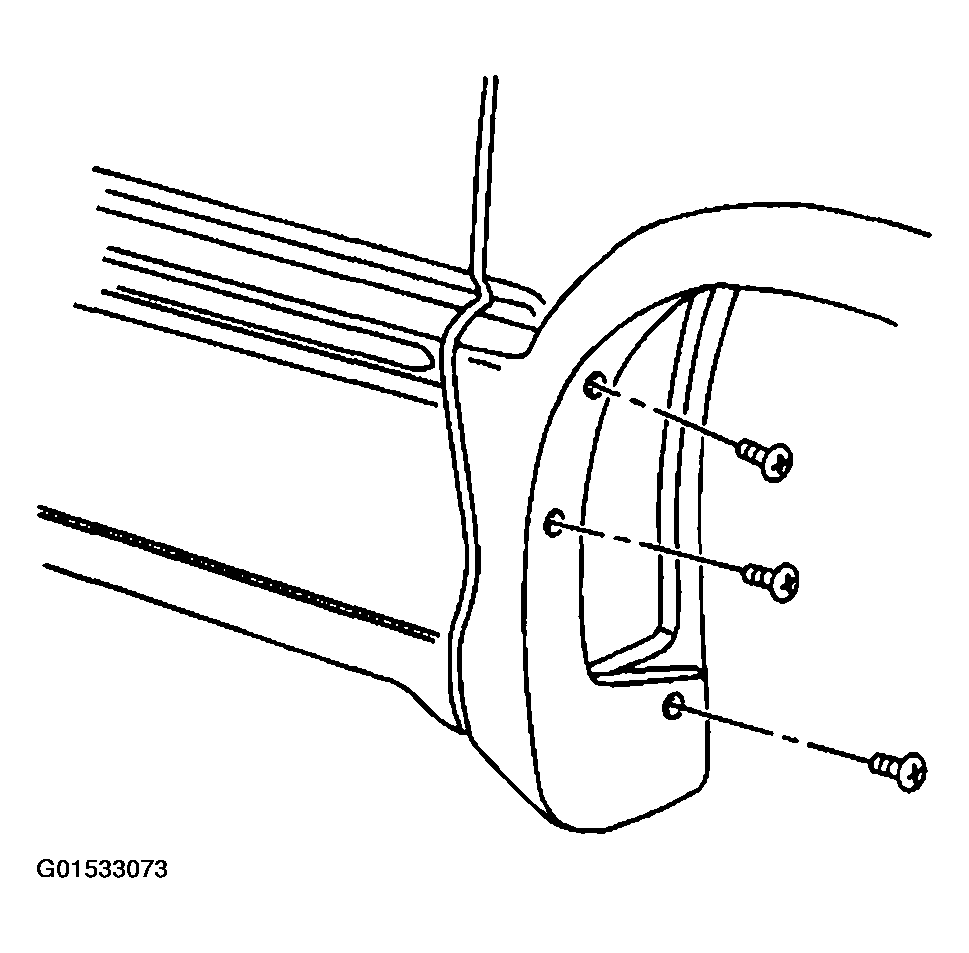

    Fig 2: Installing Screws To Lower Rear Of Fender Wheel Opening Molding
    G01533073Courtesy of GENERAL MOTORS CORP.
  4. Install the push-in retainer to the front of the fender opening molding.
  5. Install the front fender liner. Refer to FENDER LINER REPLACEMENT  in Body Front End.
  6. Lower the vehicle.

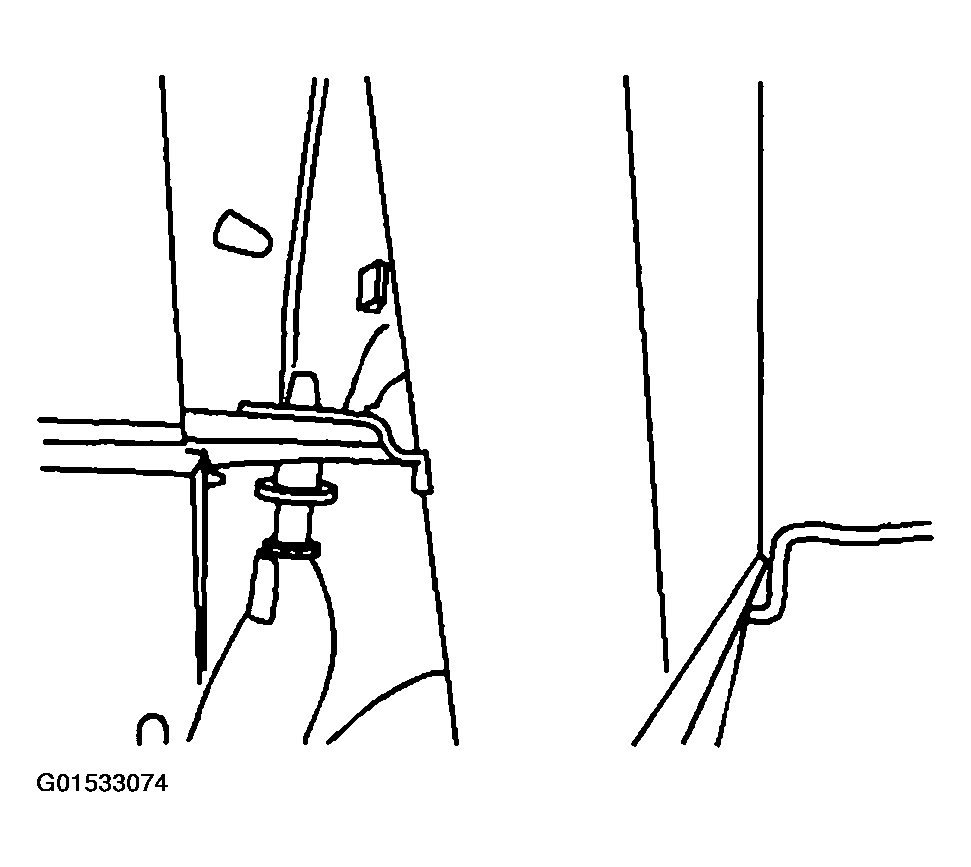

    Fig 3: Installing Push-In Retainer To Front Of Fender Opening Molding
    G01533074Courtesy of GENERAL MOTORS CORP.
