Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
Important:
- Do NOT touch the exposed adhesive tape with your hands.
- Do NOT allow the exposed adhesive tape to collect any dirt or foreign material.
- Use a J 25070
to warm the door to a minimum of 21°C (70°F).
Important: Do not touch the adhesive backing on the molding support.

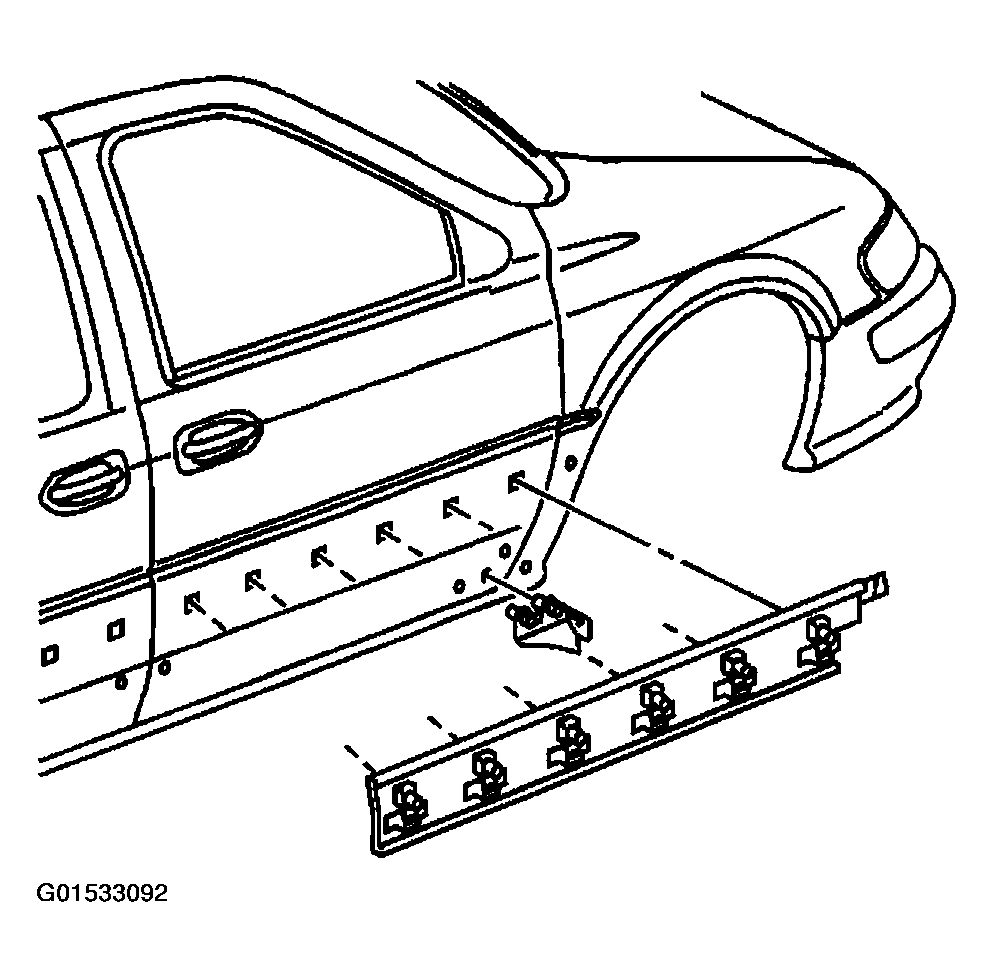

- Remove the protective liner from the back side of the support.
- Align the lower support and the retainers into the holes in the door.
- Insert the support into the holes starting with the front hole.
- Press in the center pins of the retainers.
- Press the support in order to ensure a maximum bond to the door.
- Use a J 25070 to warm the door to a minimum of 21°C (70°F).

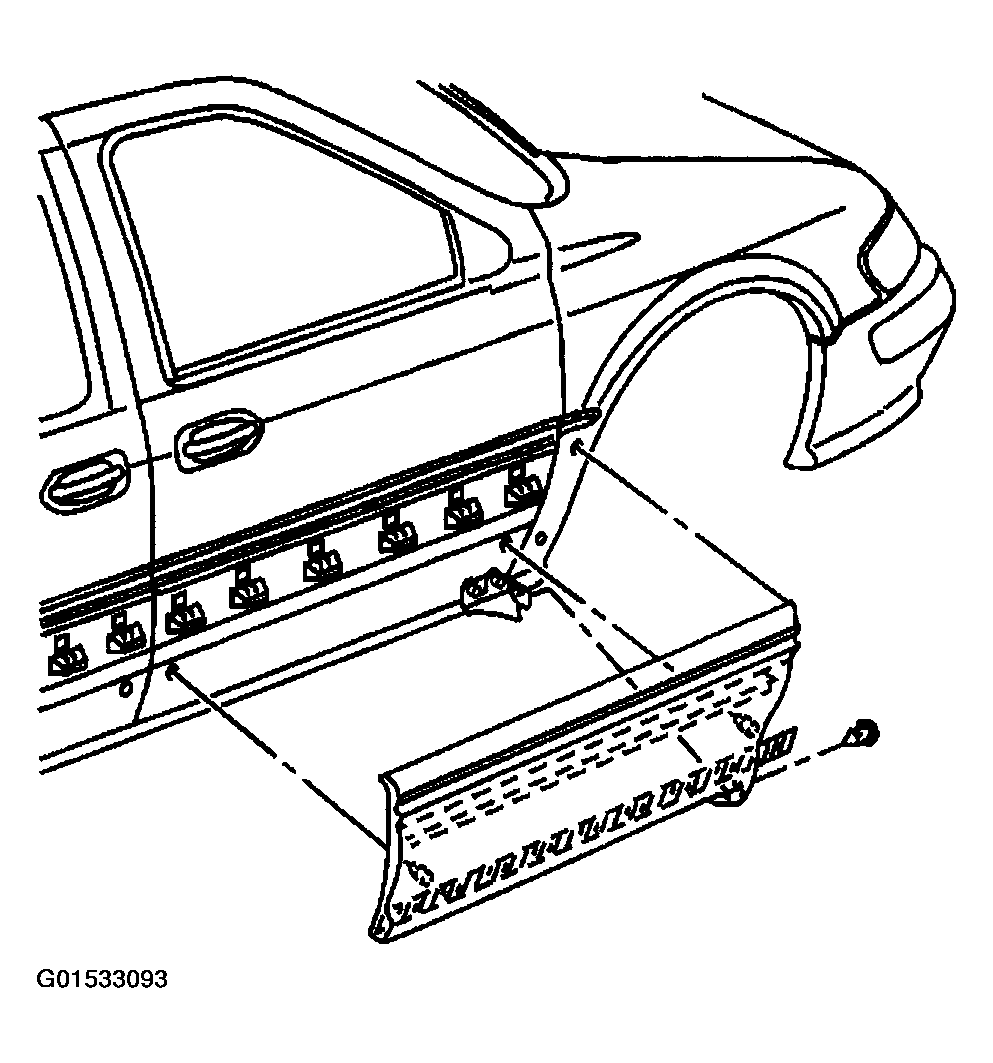

- Position the door molding to the door.
- Press the center flange of the door molding into the 2 outer retainers.
- Press the lower locating pins into the holes in the door.
- Press the center flange of the door molding into the remainder of the retainers.
- Push the upper portion of the door molding inboard over the retainers.
Important: Do NOT touch the adhesive backing of the door molding.
- Remove the protective liner from the back of the door molding.
- Press the bottom of the door molding inboard to ensure a maximum bond to the door.
- Install the push-in retainer to the front of the door molding into the lower support.
