Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Position the grille center hook into the hood center slot.
Align the grille to the hood.

Fig 1: Installing Grille Center Hook Into Hood Center Slot
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts to the center of the grille.
Tighten

Tighten the bolts to 4 N.m (35 lb in).

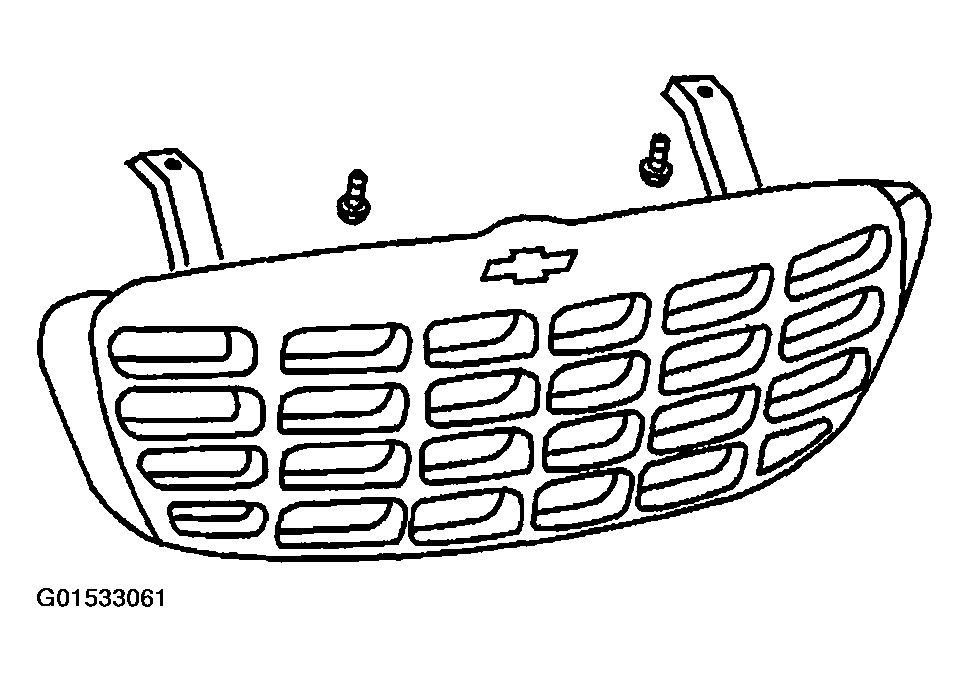

Fig 2: Installing Bolts To Center Of Grille
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.

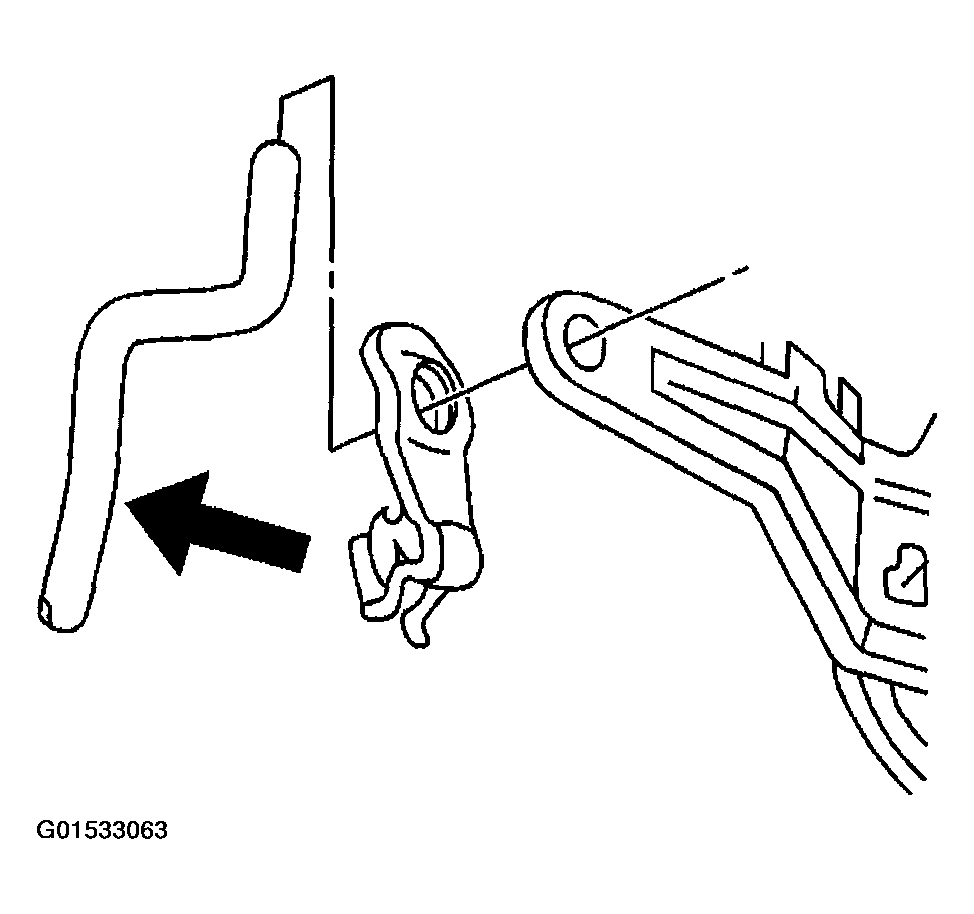

Fig 3: Install The Hood Latch Linkage To The Secondary Hood Latch
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.

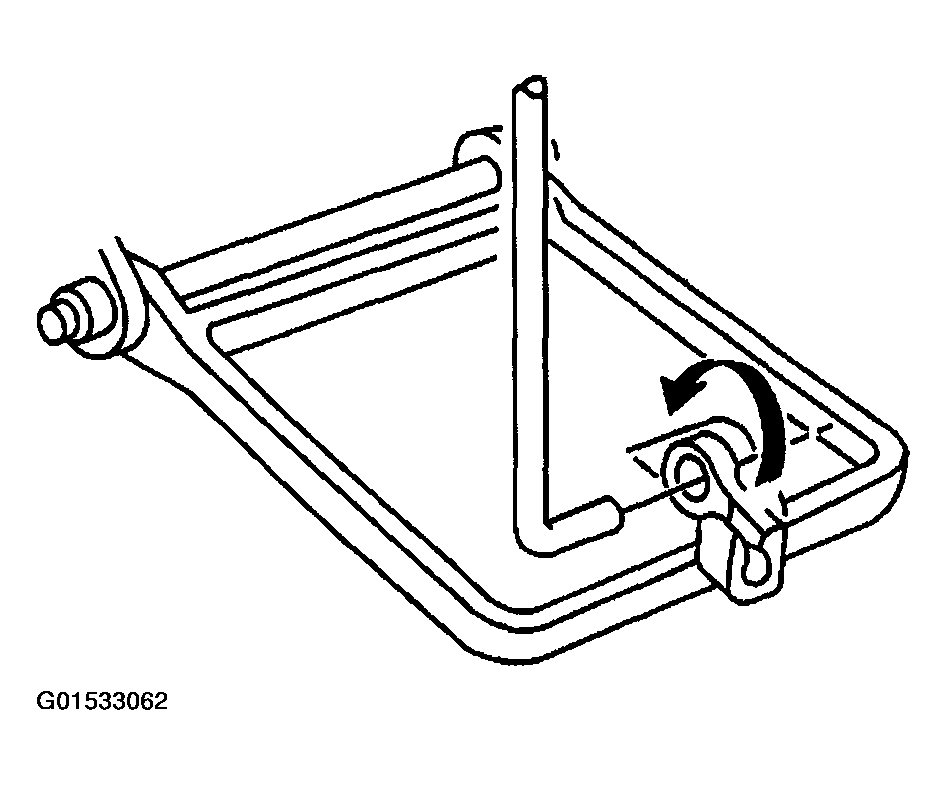

Fig 4: Installing Hood Latch Linkage To Secondary Hood Latch
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.
Install the front hood seal. Refer to SEAL REPLACEMENT - HOOD FRONT in Body Front End.
Close the hood.

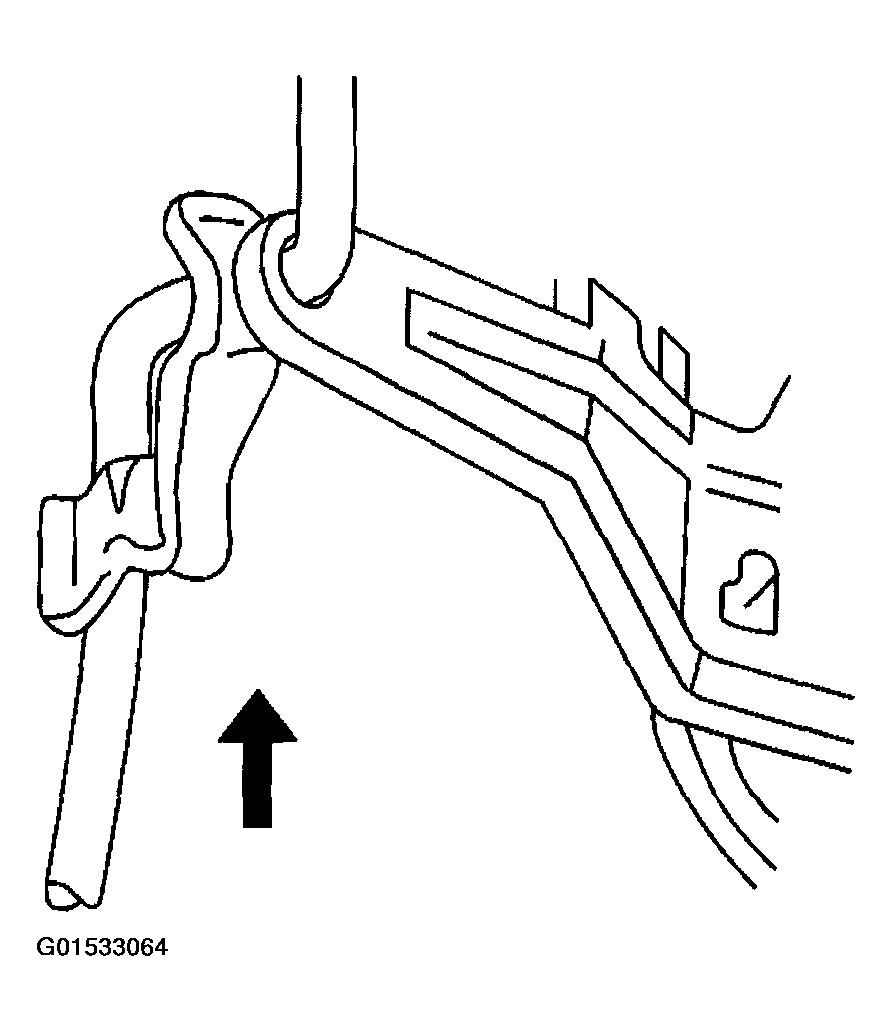

Fig 5: Installing Hood Latch Linkage To Secondary Hood Latch
Courtesy of GENERAL MOTORS CORP.
