Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the steep numbers on the diagnostic table.

2. Normally, ignition positive voltage should be present on the control circuit with the control circuit with the PCM disconnected and the ignition turned ON.

3. Tests for a short to voltage on the control circuit.

9. This vehicle is equipped with a PCM which utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is being replaced, the new PCM must be programmed.

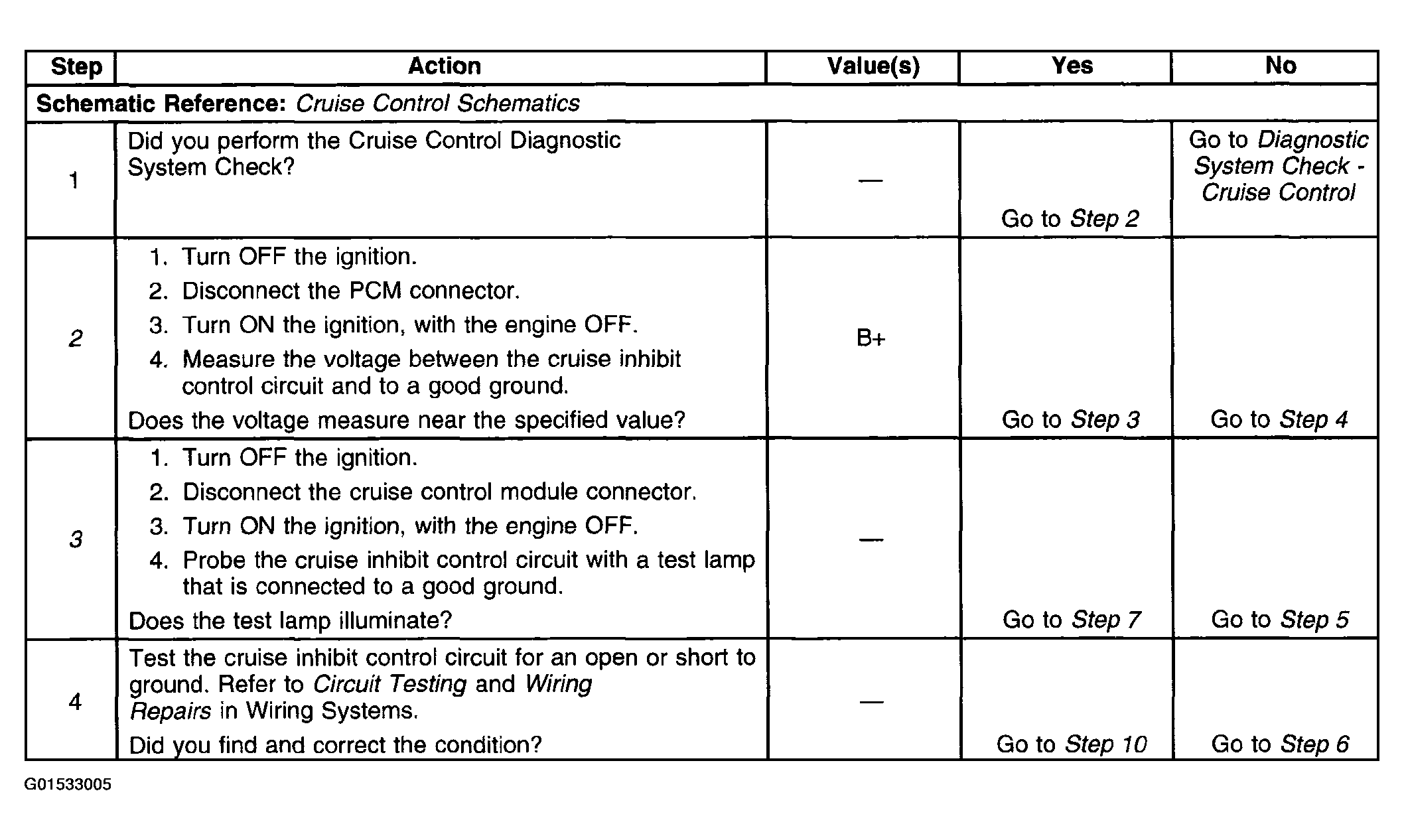

Fig 1: DTC P1585 Diagnostic Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

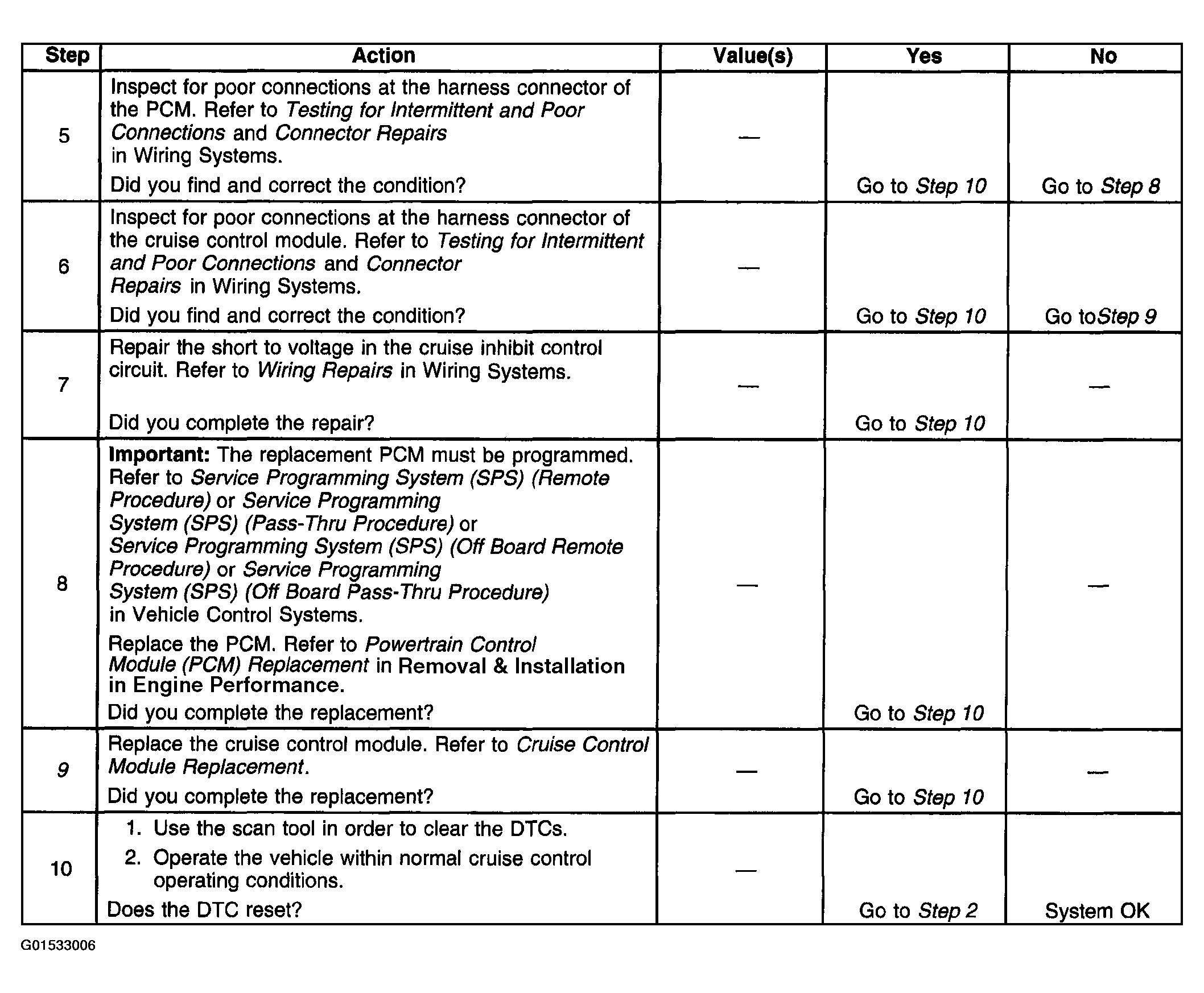

Fig 2: DTC P1585 Diagnostic Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
