Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

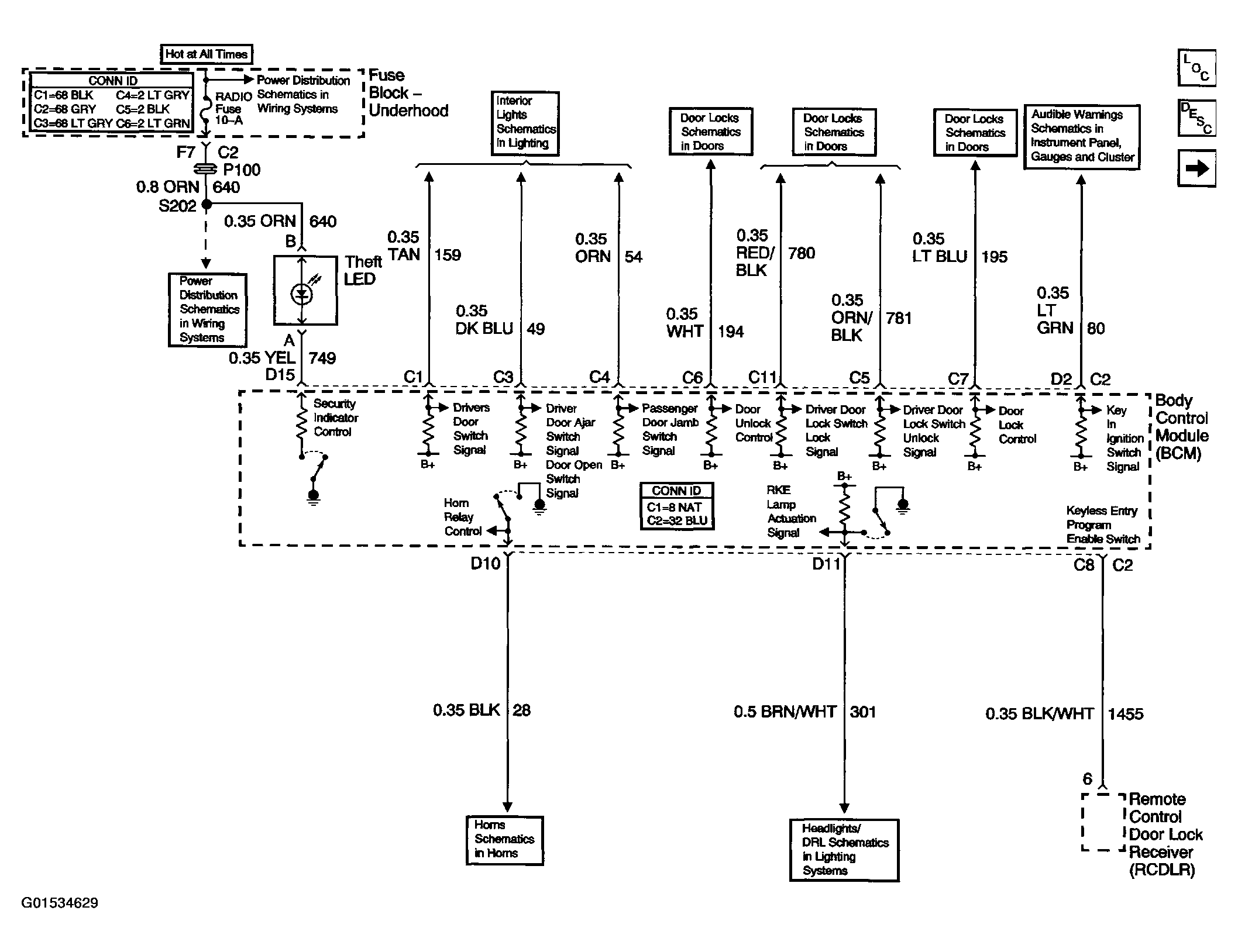

Fig 1: Theft Deterrent System Schematic (Content Theft Deterrent (CTD) System)

Courtesy of GENERAL MOTORS CORP.

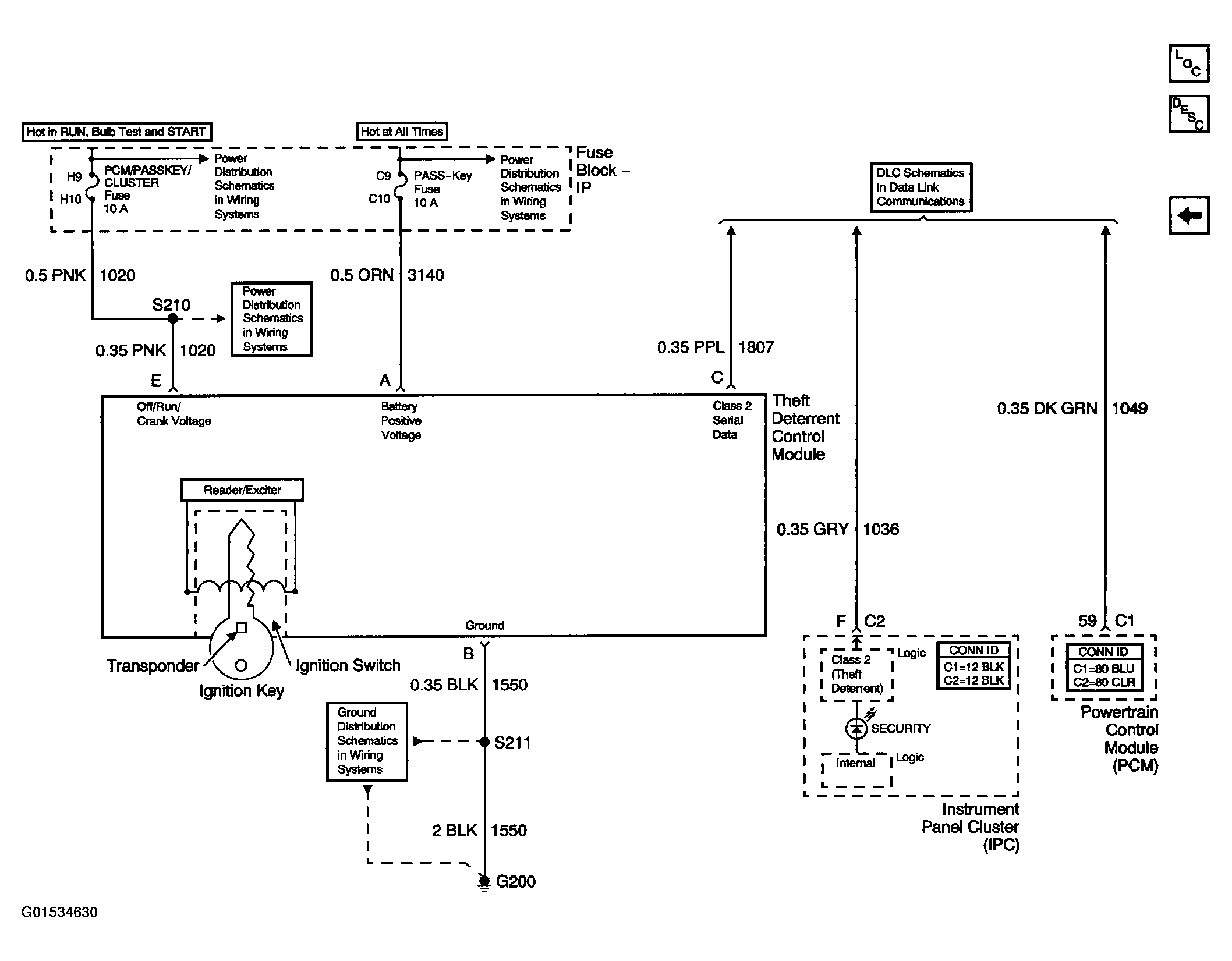

Fig 2: Theft Deterrent System Schematic (Vehicle Theft Deterrent (VTD) System)

Courtesy of GENERAL MOTORS CORP.
