Symptom List

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

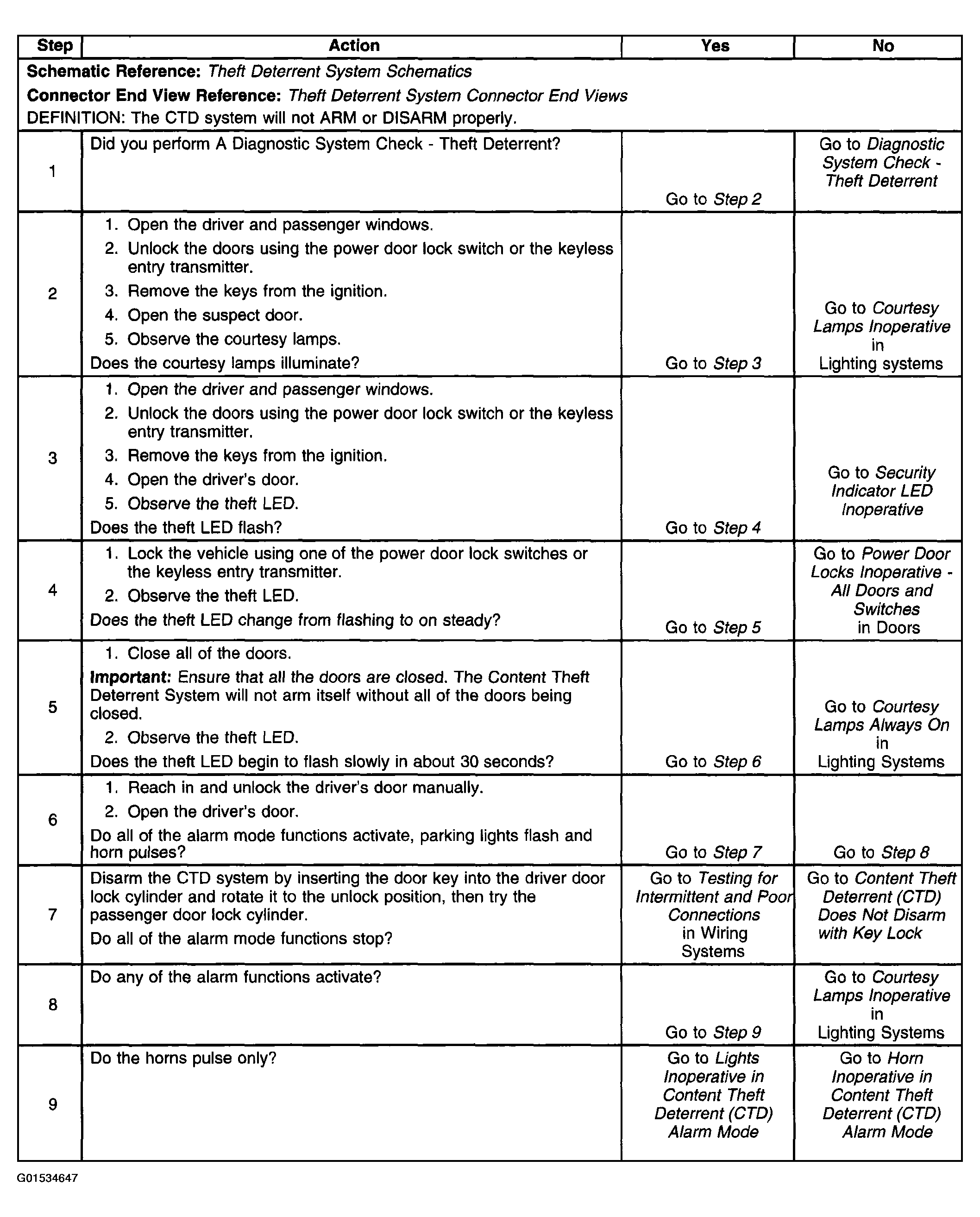

Fig 1: Diagnostic System Check Chart - Content Theft Deterrent Alarm Mode Inoperative
G01534647Courtesy of GENERAL MOTORS CORP.

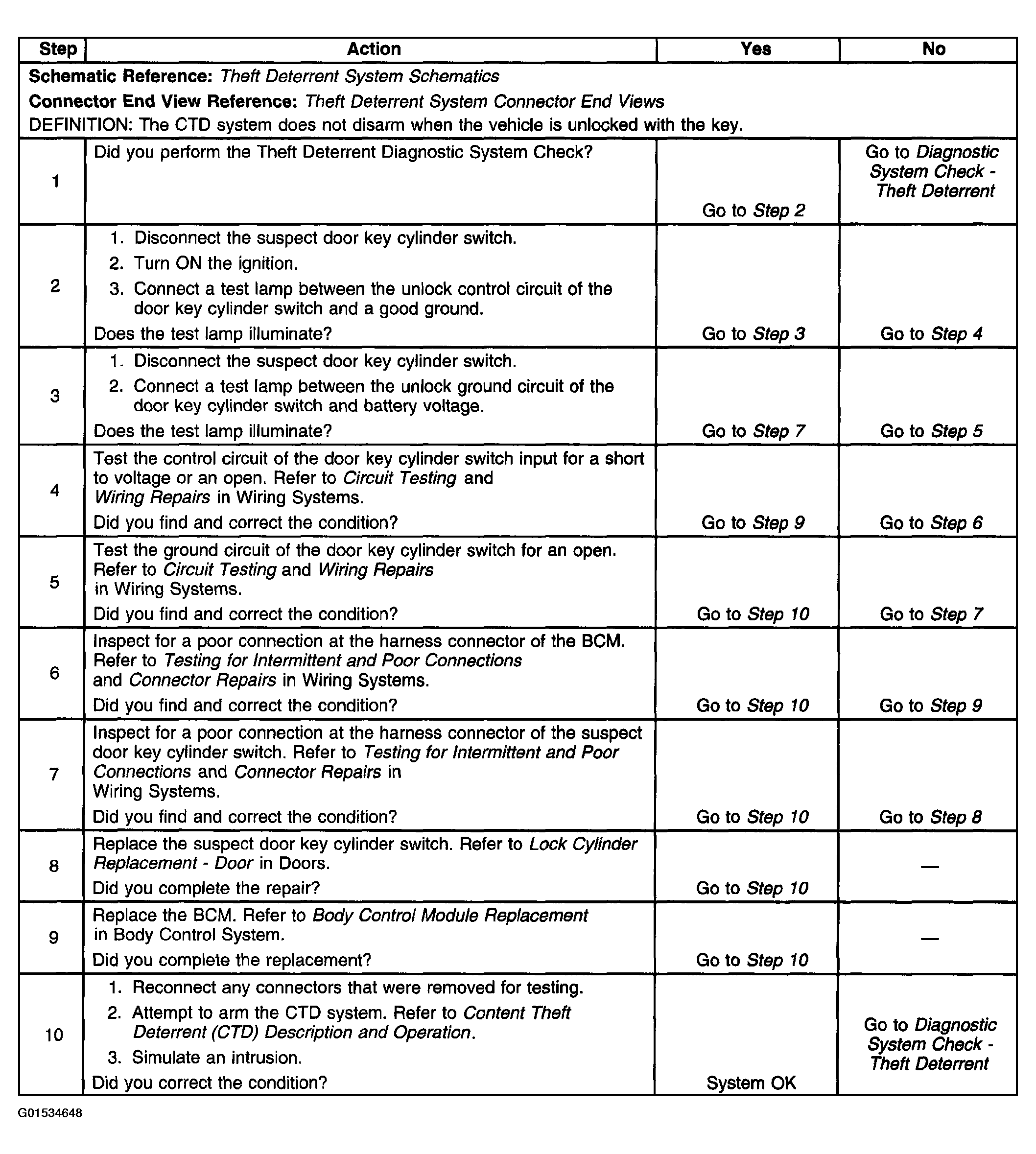

Fig 2: Diagnostic System Check Chart - Content Theft Deterrent Does Not Disarm With Key Lock
G01534648Courtesy of GENERAL MOTORS CORP.

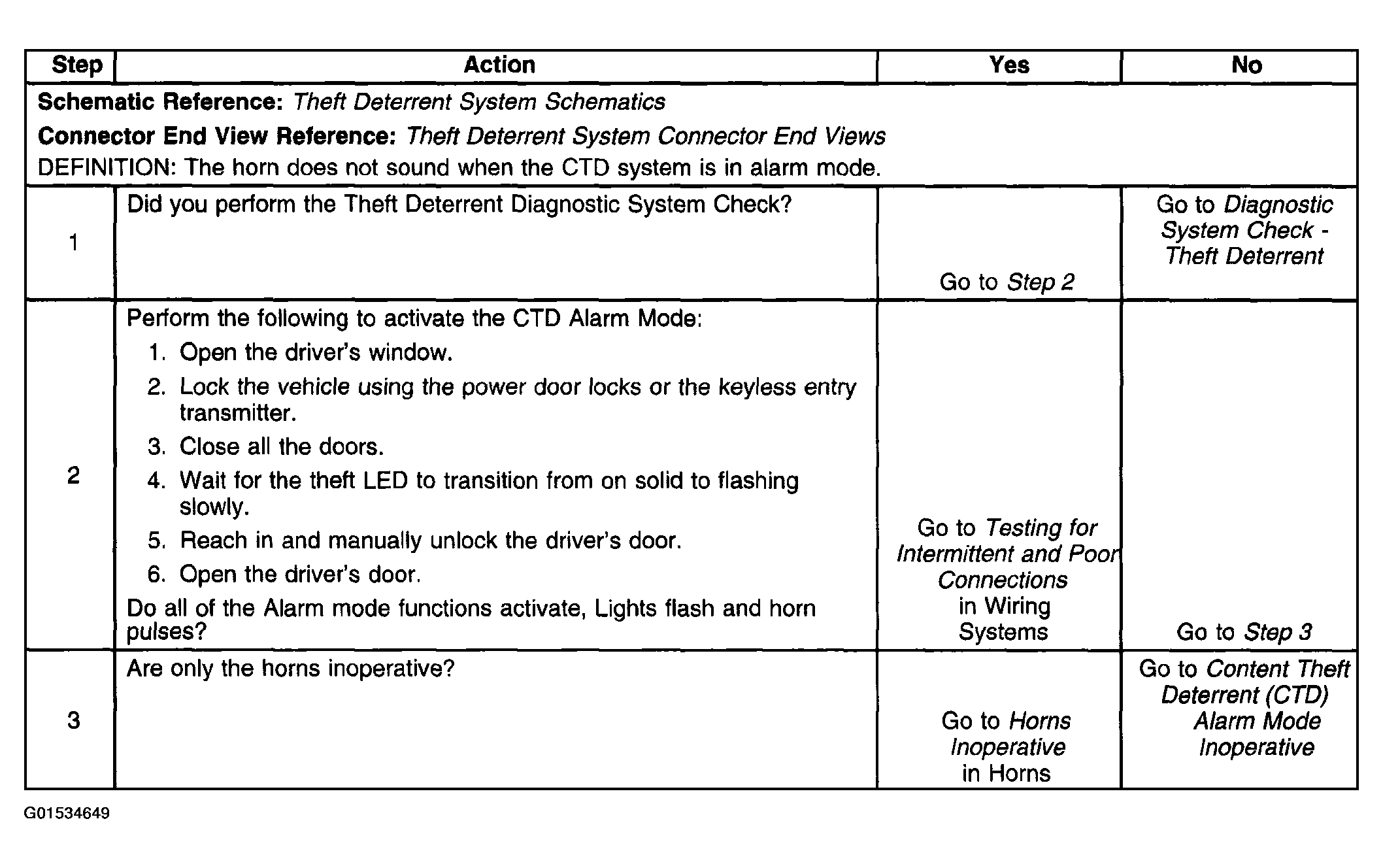

Fig 3: Diagnostic System Check Chart - Horn Inoperative In Content Theft Deterrent Alarm Mode
G01534649Courtesy of GENERAL MOTORS CORP.

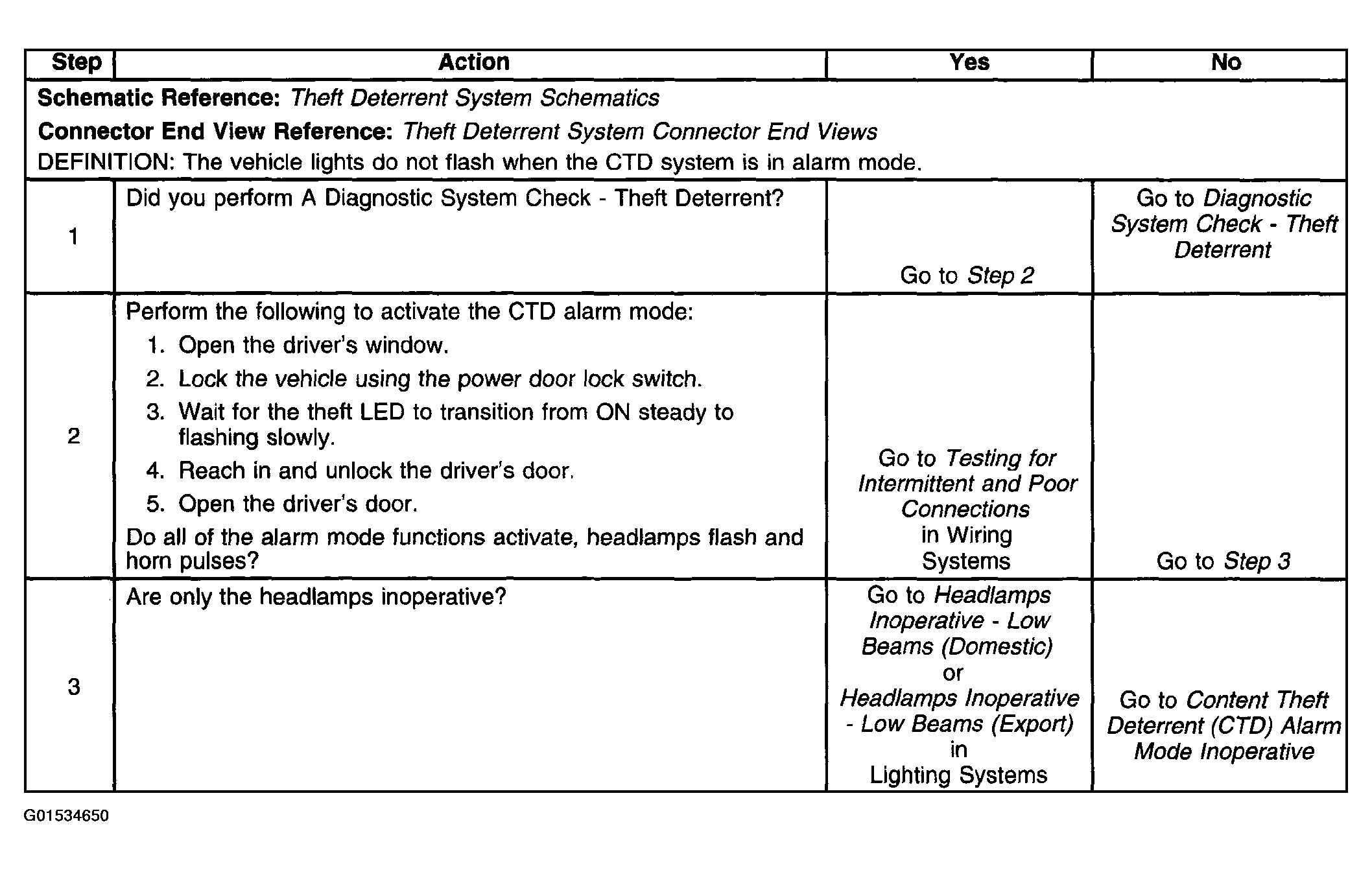

Fig 4: Diagnostic System Check Chart - Lights Inoperative In Content Theft Deterrent Alarm Mode
G01534650Courtesy of GENERAL MOTORS CORP.

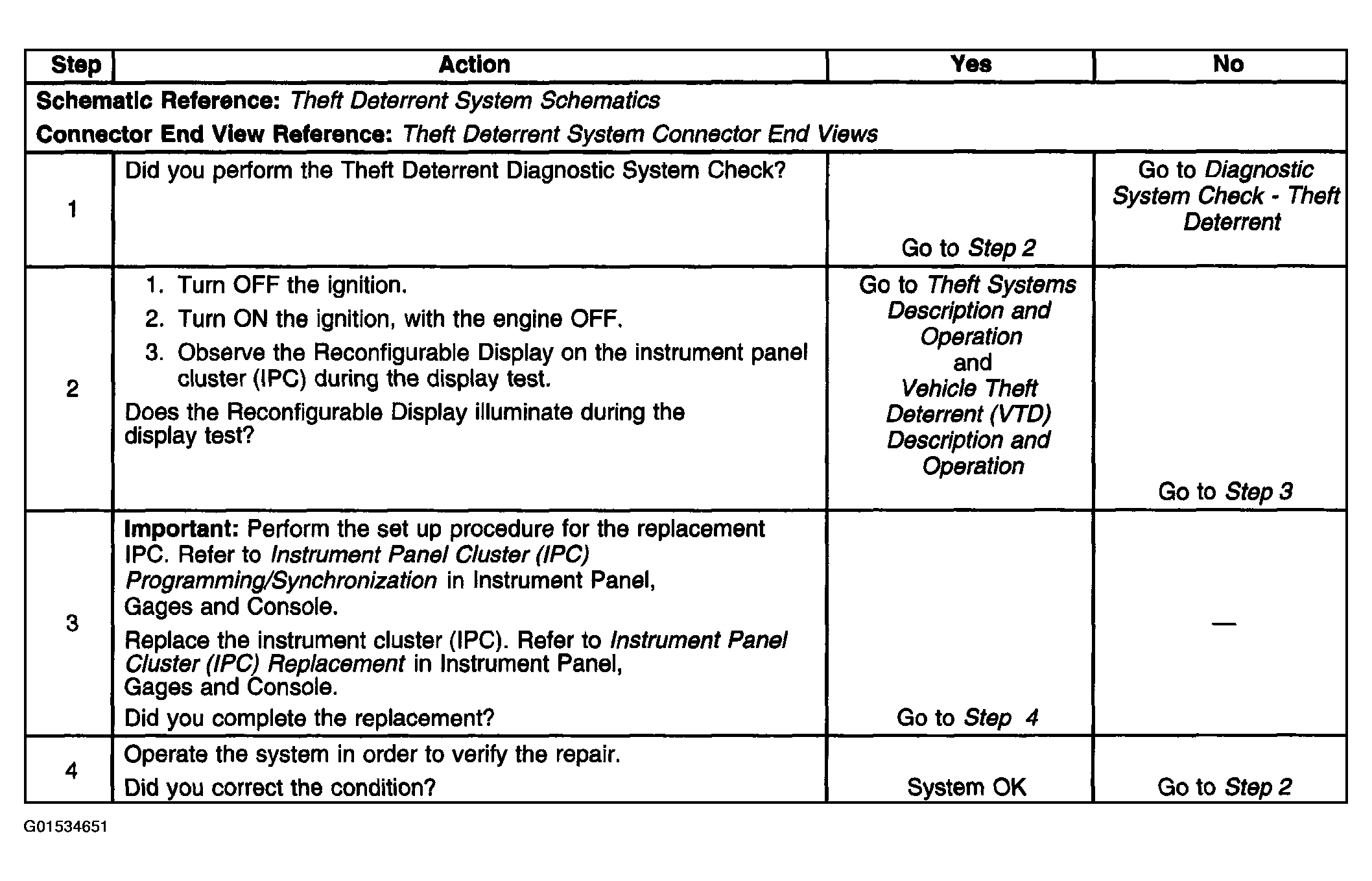

Fig 5: Diagnostic System Check Chart - Security Indicator Inoperative
G01534651Courtesy of GENERAL MOTORS CORP.

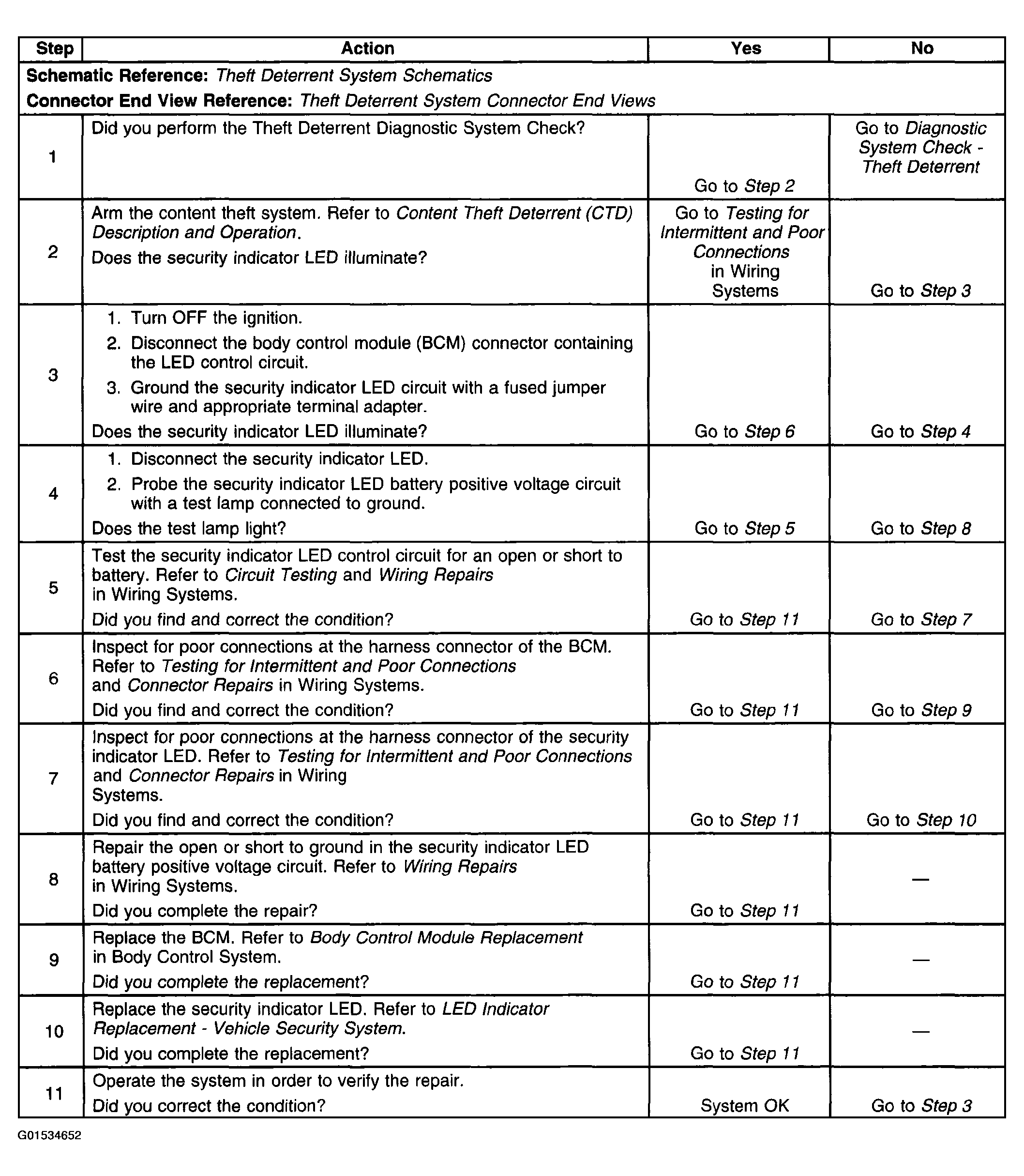

Fig 6: Diagnostic System Check Chart - Security Indicator LED Inoperative
G01534652Courtesy of GENERAL MOTORS CORP.
