Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

3. This step checks the integrity of the exterior lamps output circuit.

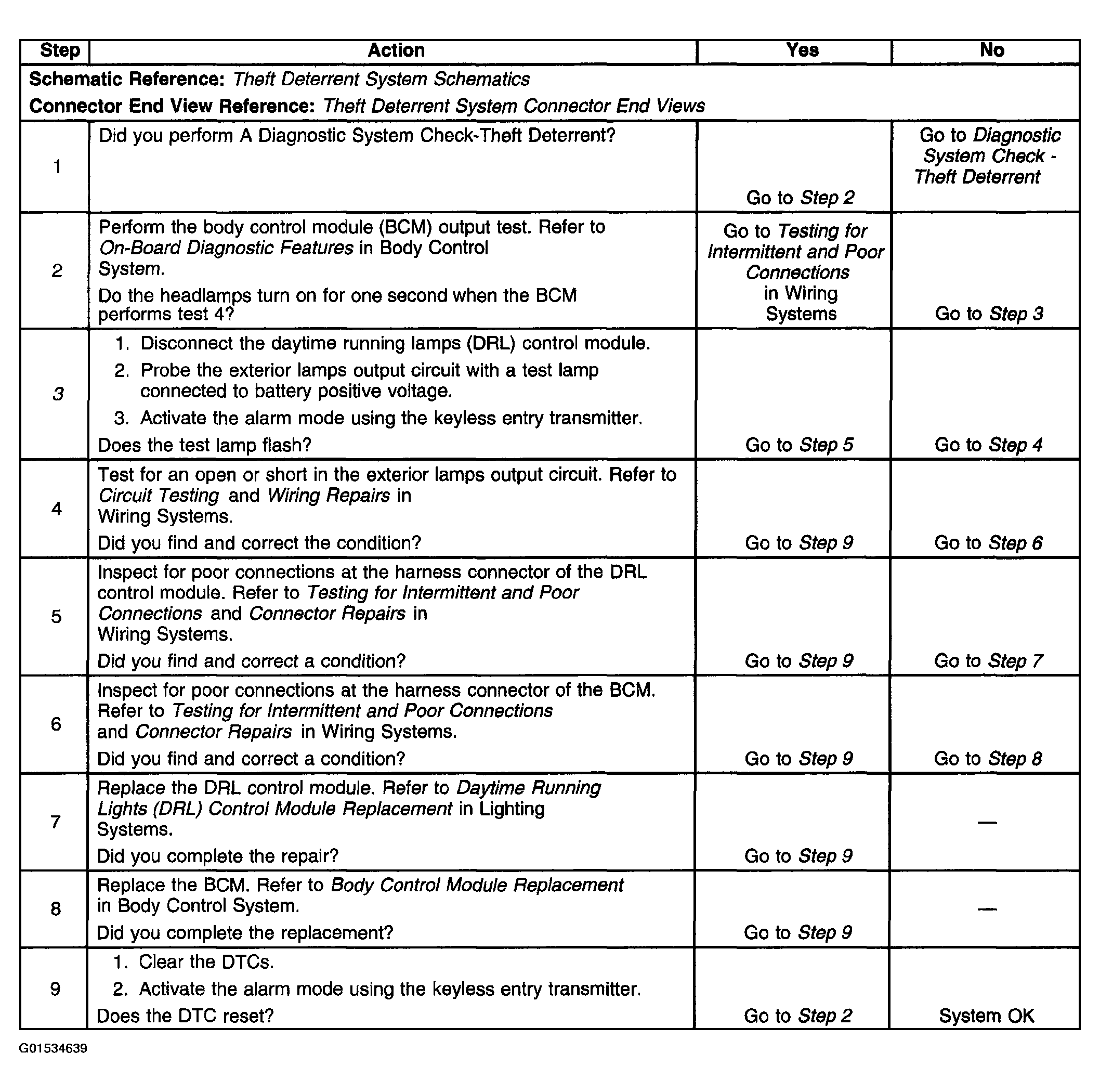

Fig 1: Diagnostic Check - DTC 006
G01534639Courtesy of GENERAL MOTORS CORP.
