Symptom List

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

PANIC MODE INOPERATIVE
KEYLESS ENTRY SYSTEM INOPERATIVE
POWER SLIDING DOOR (PSD) INOPERATIVE WITH TRANSMITTER - See Fig 4

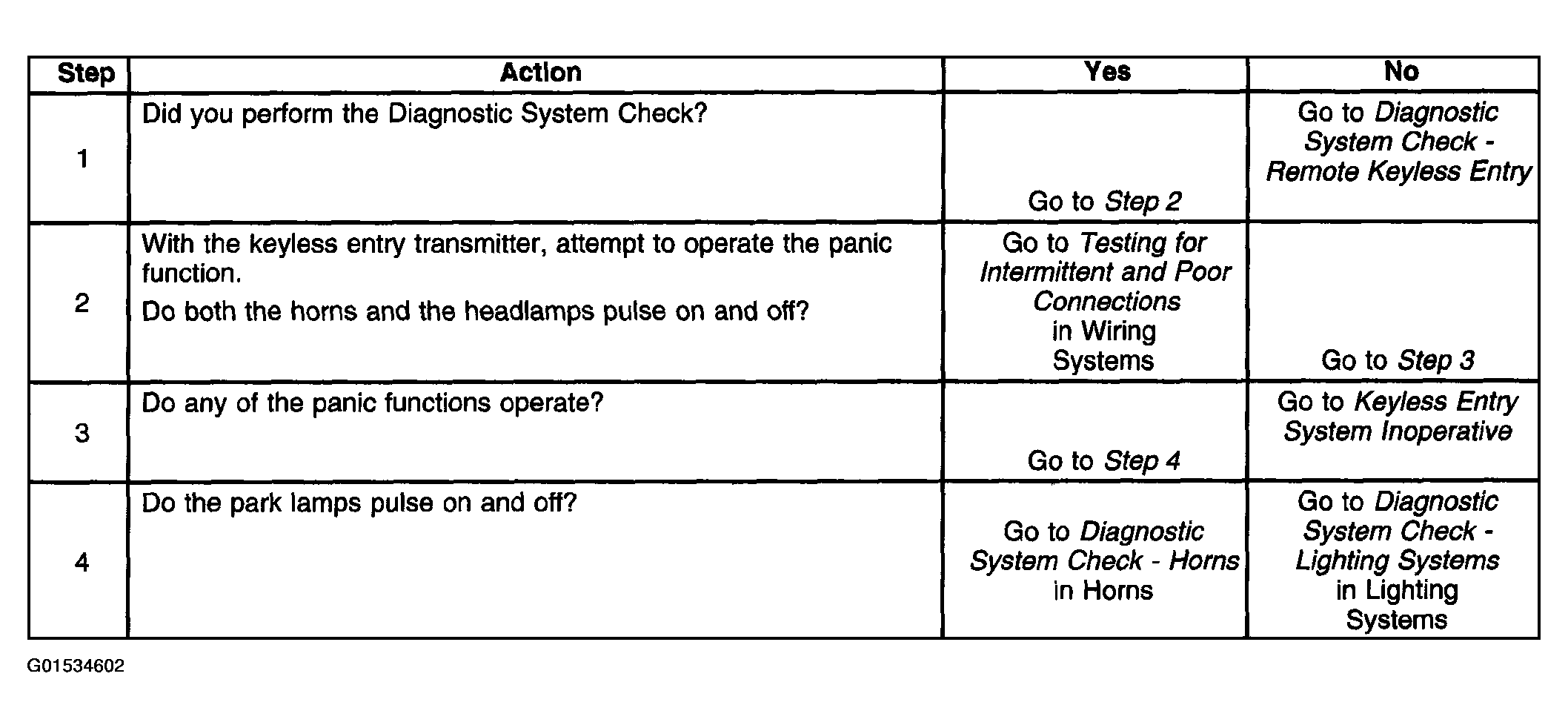

Fig 1: Diagnostic System Check Chart - Panic Mode Inoperative
Courtesy of GENERAL MOTORS CORP.

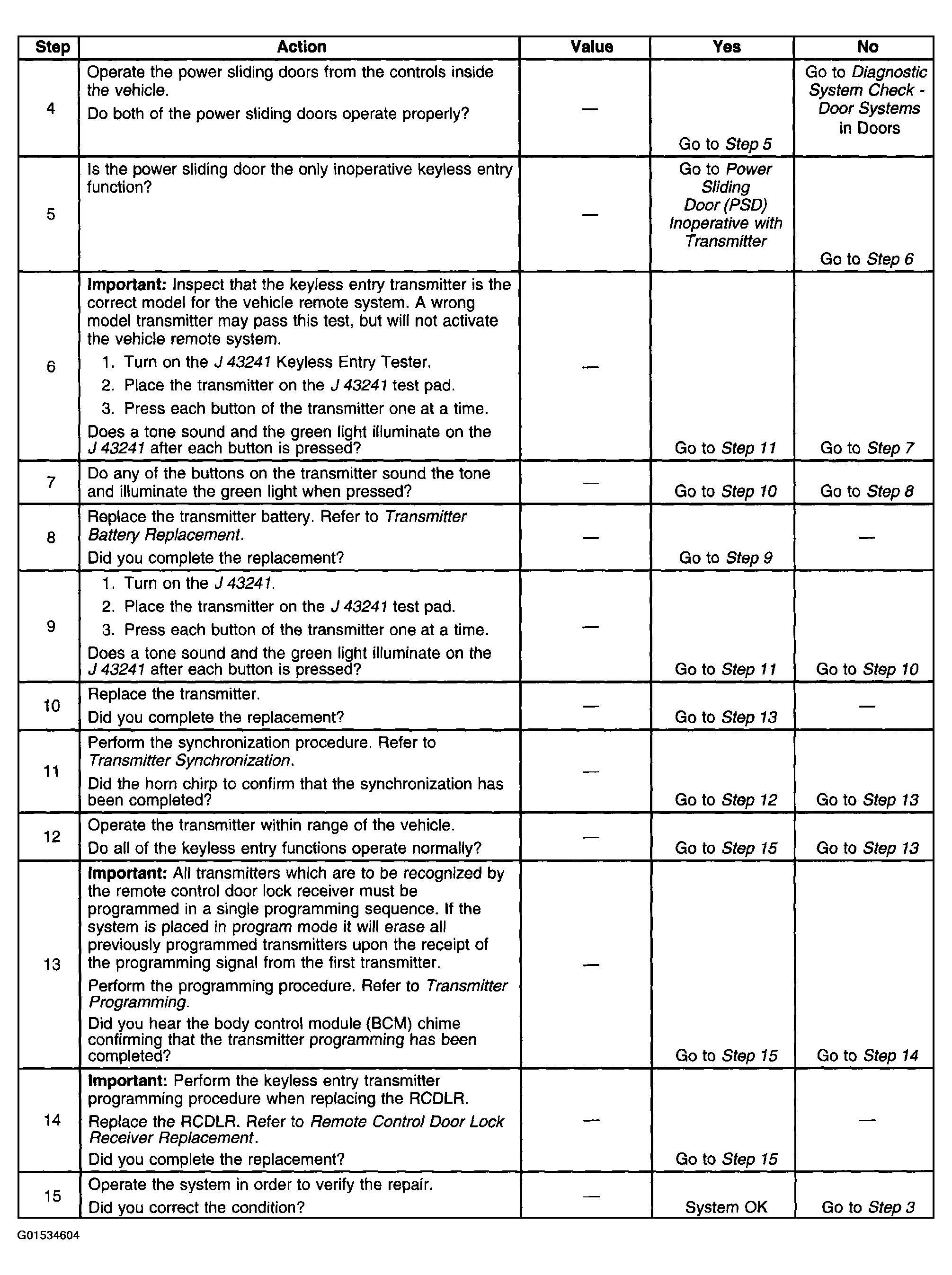

Fig 2: Diagnostic System Check Chart - Keyless Entry System Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

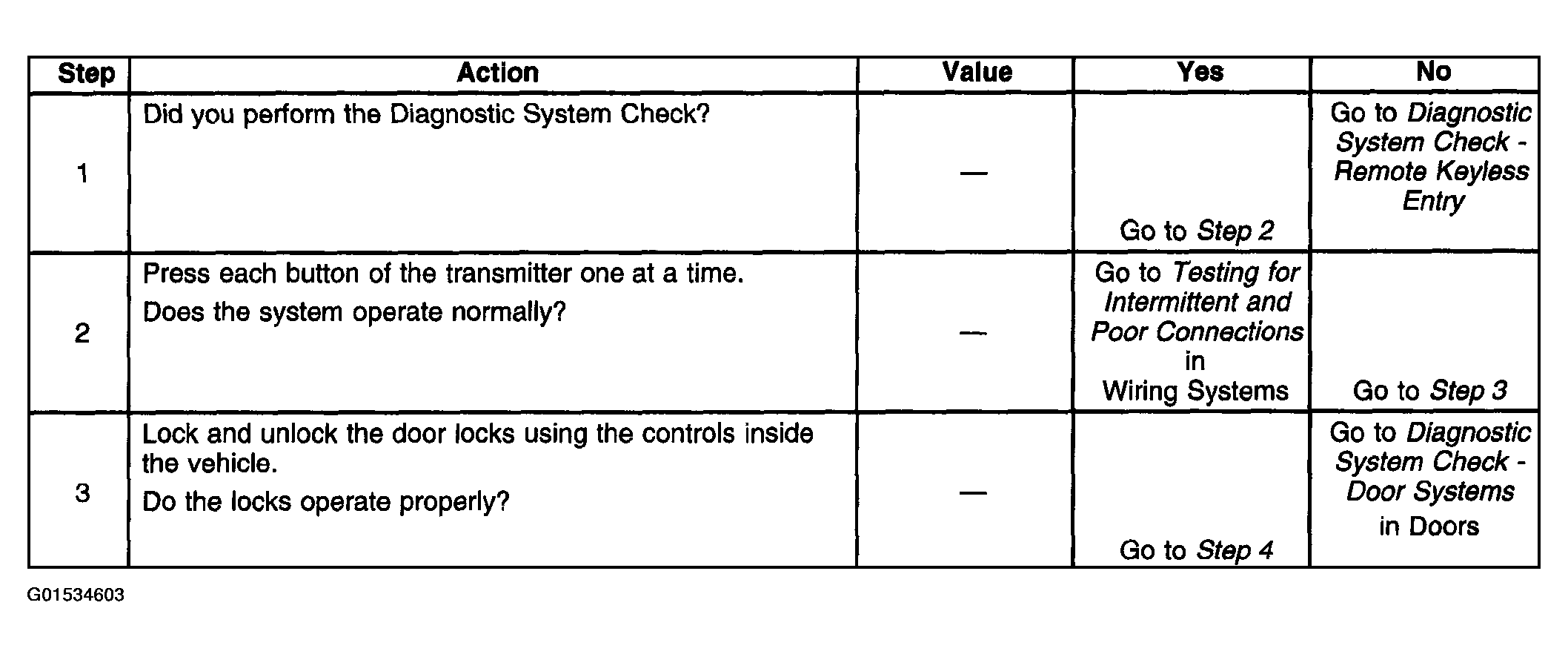

Fig 3: Diagnostic System Check Chart - Keyless Entry System Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

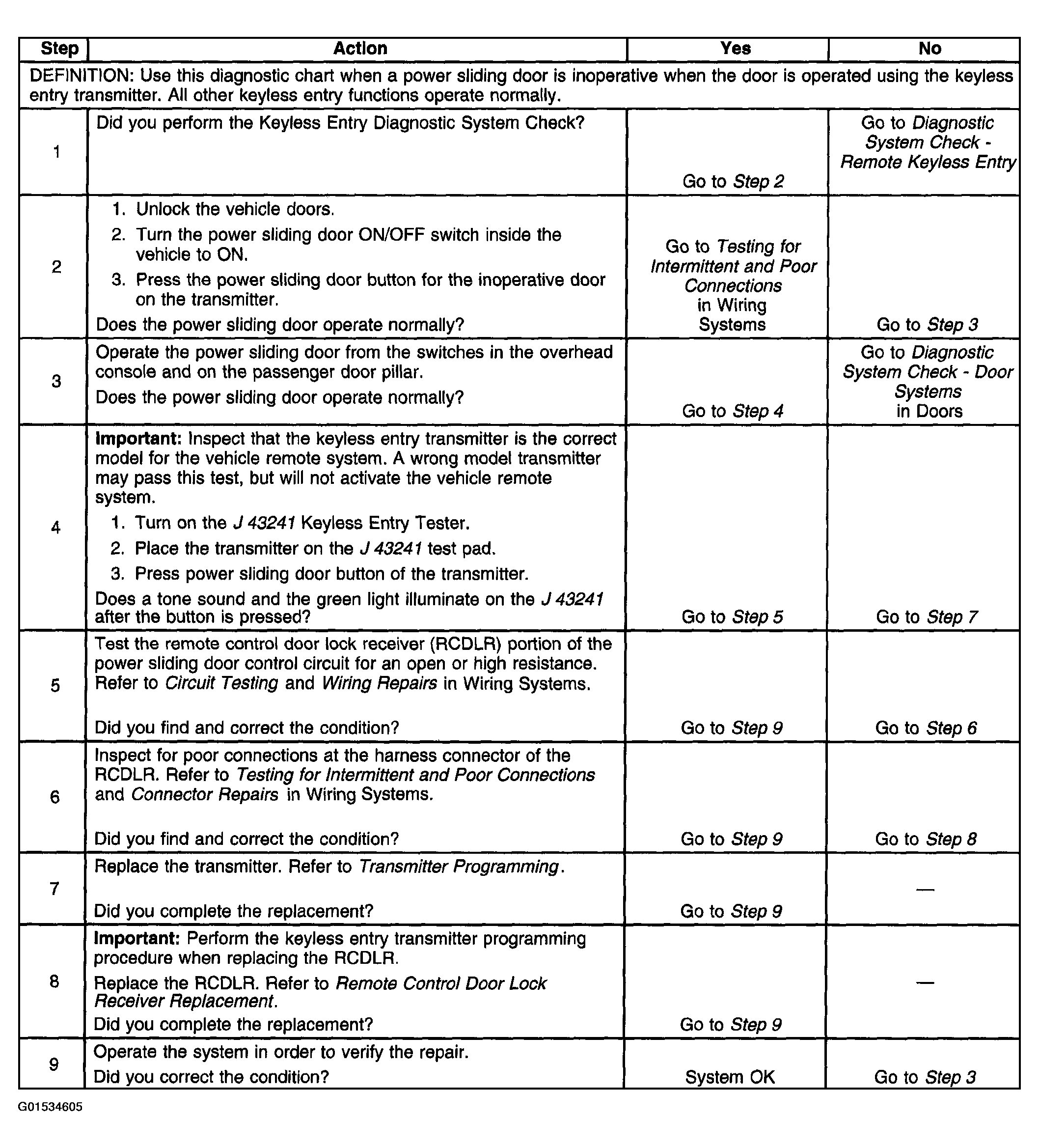

Fig 4: Diagnostic System Check Chart - Power Sliding Door Inoperative With Transmitter
Courtesy of GENERAL MOTORS CORP.
