WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

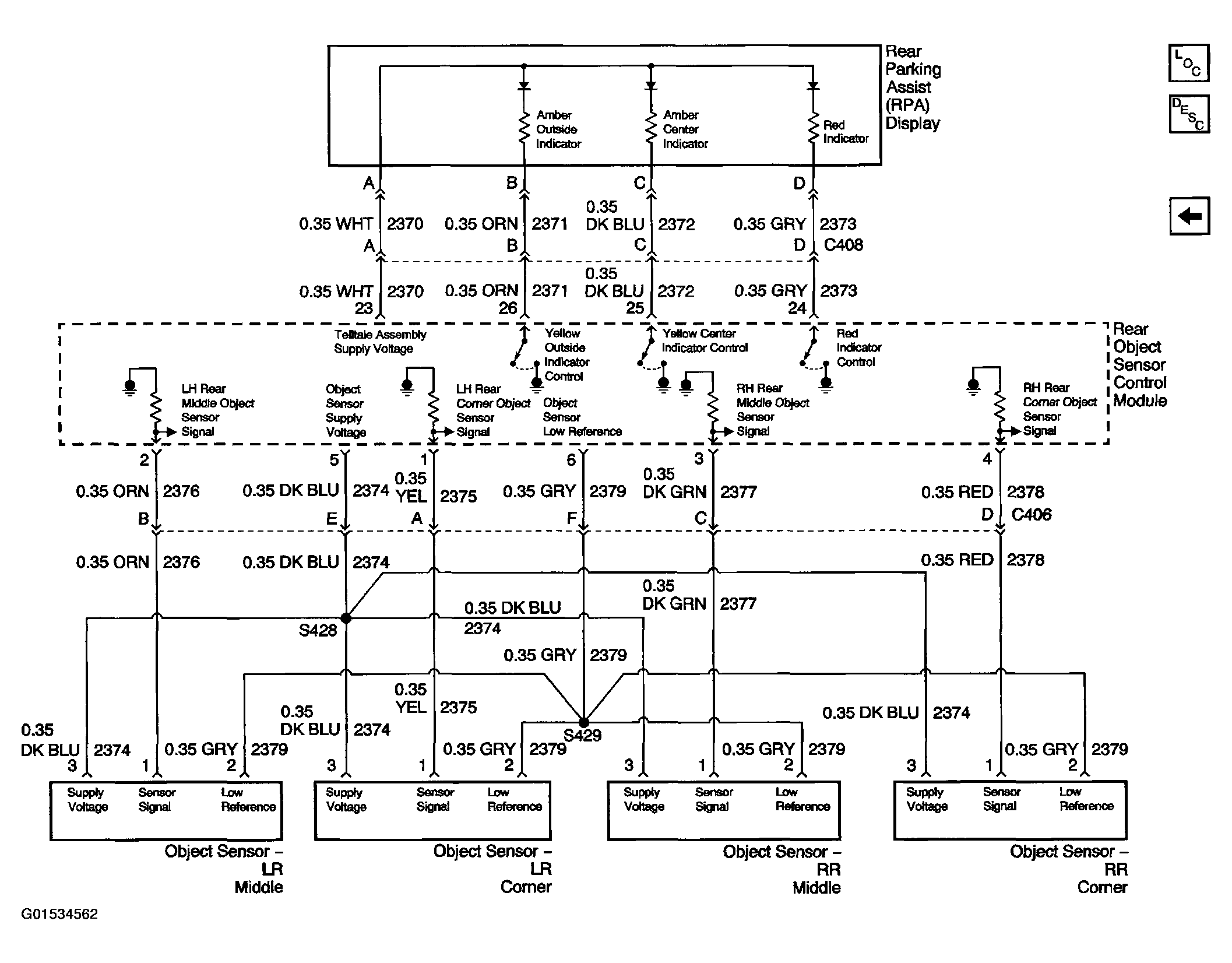

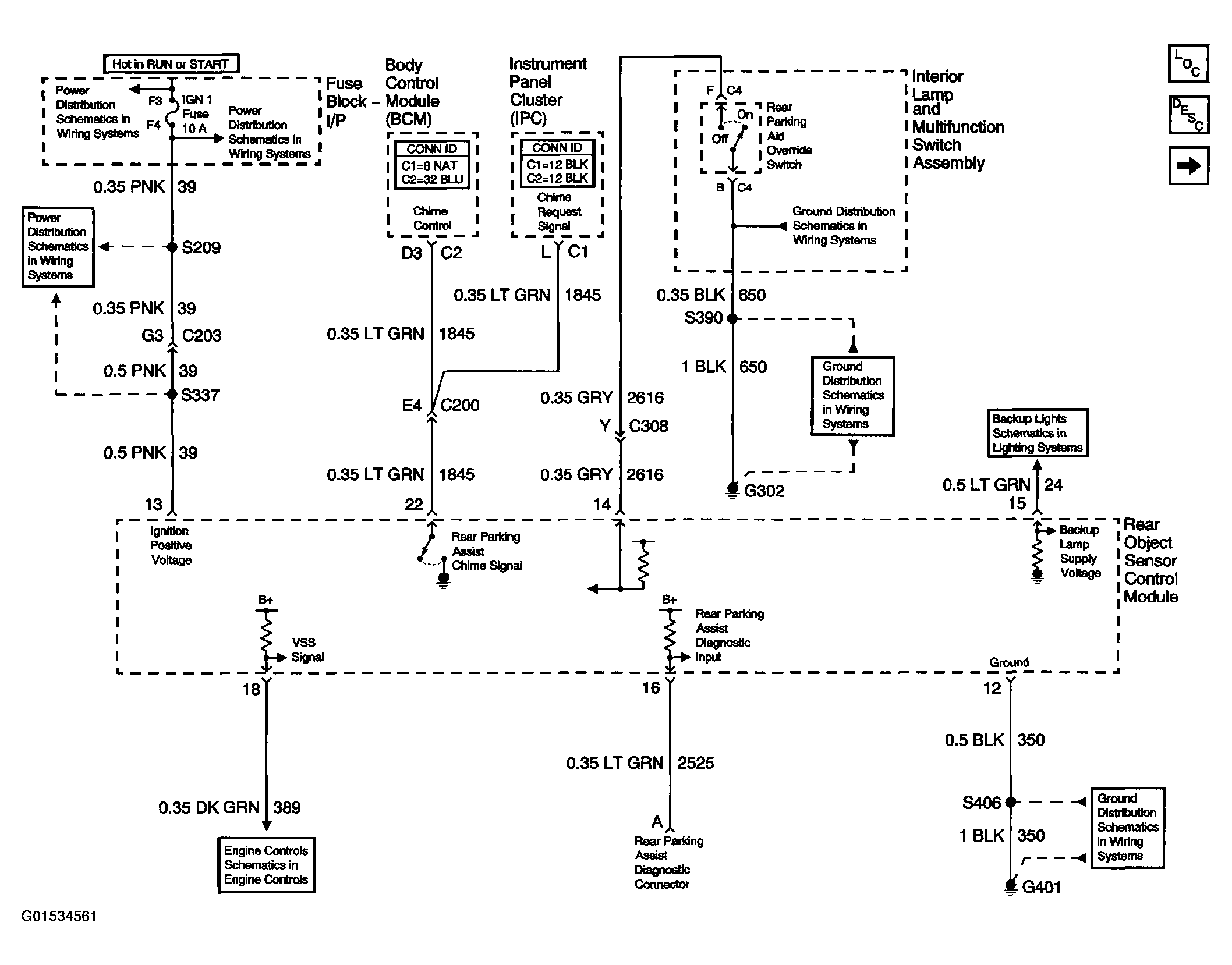

Fig 1: Rear Parking Assist Schematic (Rear Object Sensor Control Module, Power And Ground)
