Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear compartment side trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  in Interior Trim.
  2. Disconnect the electrical connector from the rear object detection module.
  3. Remove the mounting bolts from the rear object detection module.
  4. Remove the rear object detection module from the vehicle.

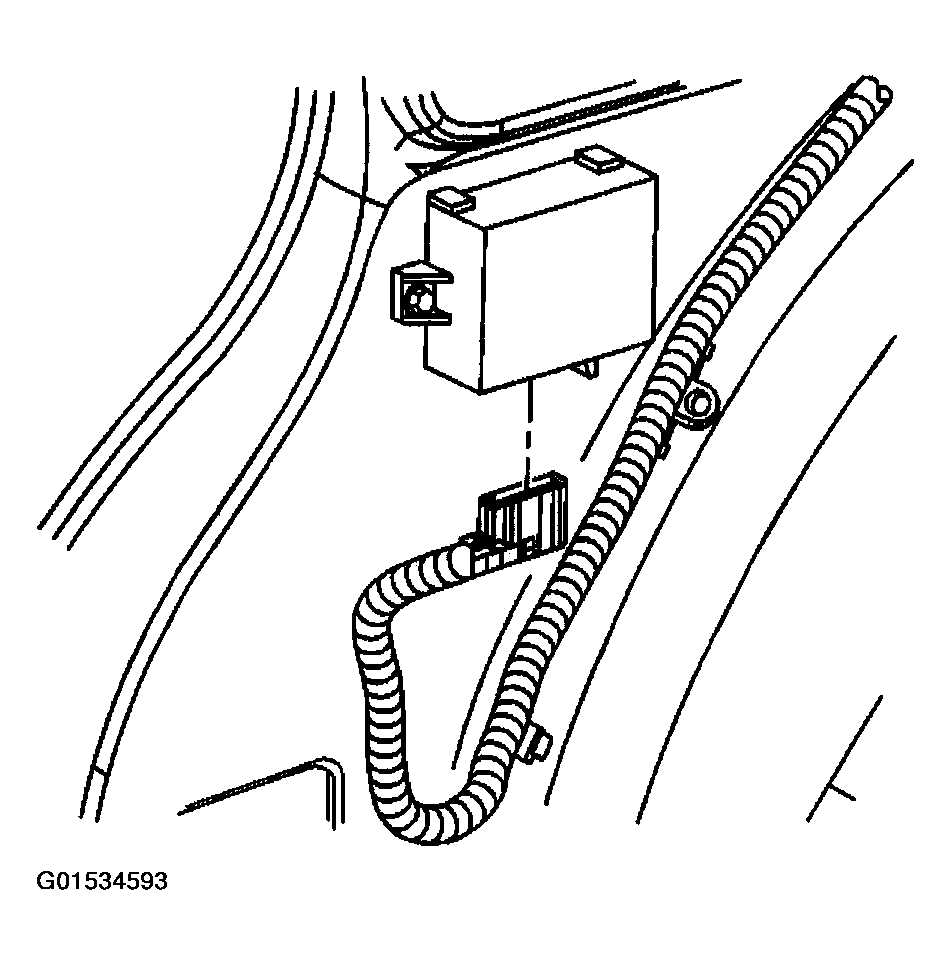

    Fig 1: Removing Rear Object Detection Module From Vehicle
    G01534593Courtesy of GENERAL MOTORS CORP.
