Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position your fingers between the headliner and the information center telltale assembly bezel and gently pull down to release the display bezel retainers.
    Fig 1: Placing Finger Between Headliner And Information Center Telltale Assembly Bezel
    G01534579Courtesy of GENERAL MOTORS CORP.
  2. Use a small flat-bladed tool to release the locking tab at the rare of the telltale assembly.
    Fig 2: Releasing Locking Tab At Rear Of Telltale Assembly
    G01534580Courtesy of GENERAL MOTORS CORP.
  3. Tilt the information center telltale assembly down and pull down to remove.
  4. Disconnect the electrical connector from the information center telltale assembly.

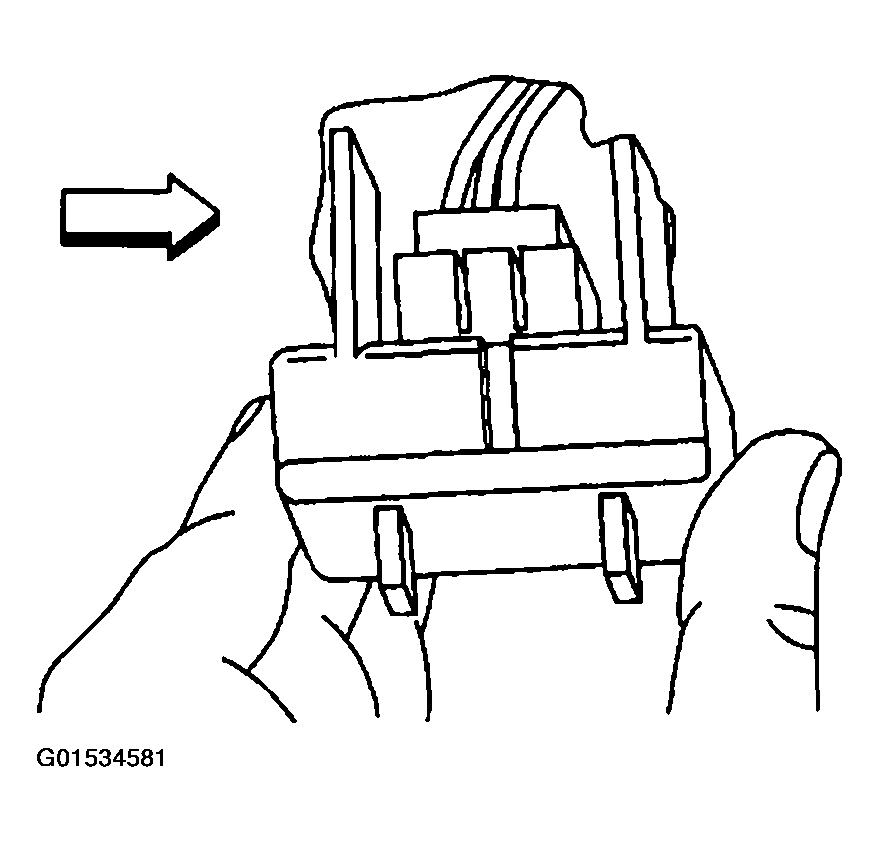

    Fig 3: Disconnecting Electrical Connector From Information Center Telltale Assembly
    G01534581Courtesy of GENERAL MOTORS CORP.
