Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the information center telltale assembly.
  2. Position the information center telltale assembly into the headliner until locking tab locks into position. It may be necessary to rock the display into position.
  3. Install bezel by pressing into place until the locking tabs are fully seated.

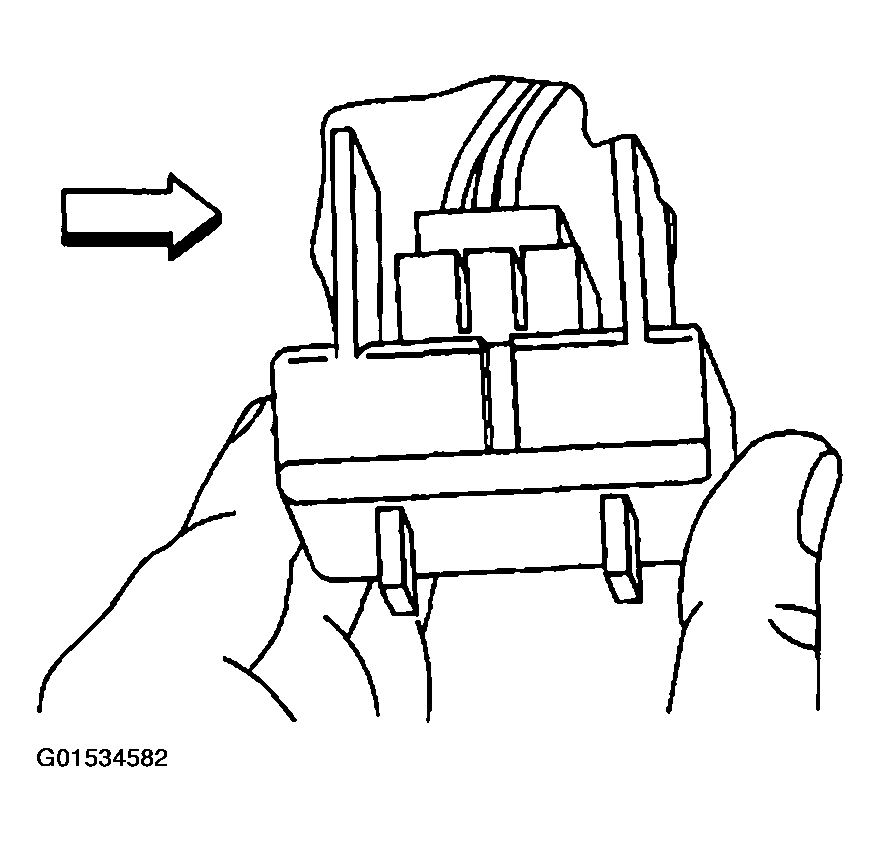

    Fig 1: Connecting Electrical Connector To Information Center Telltale Assembly
    G01534582Courtesy of GENERAL MOTORS CORP.
