Rear Parking Assist Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

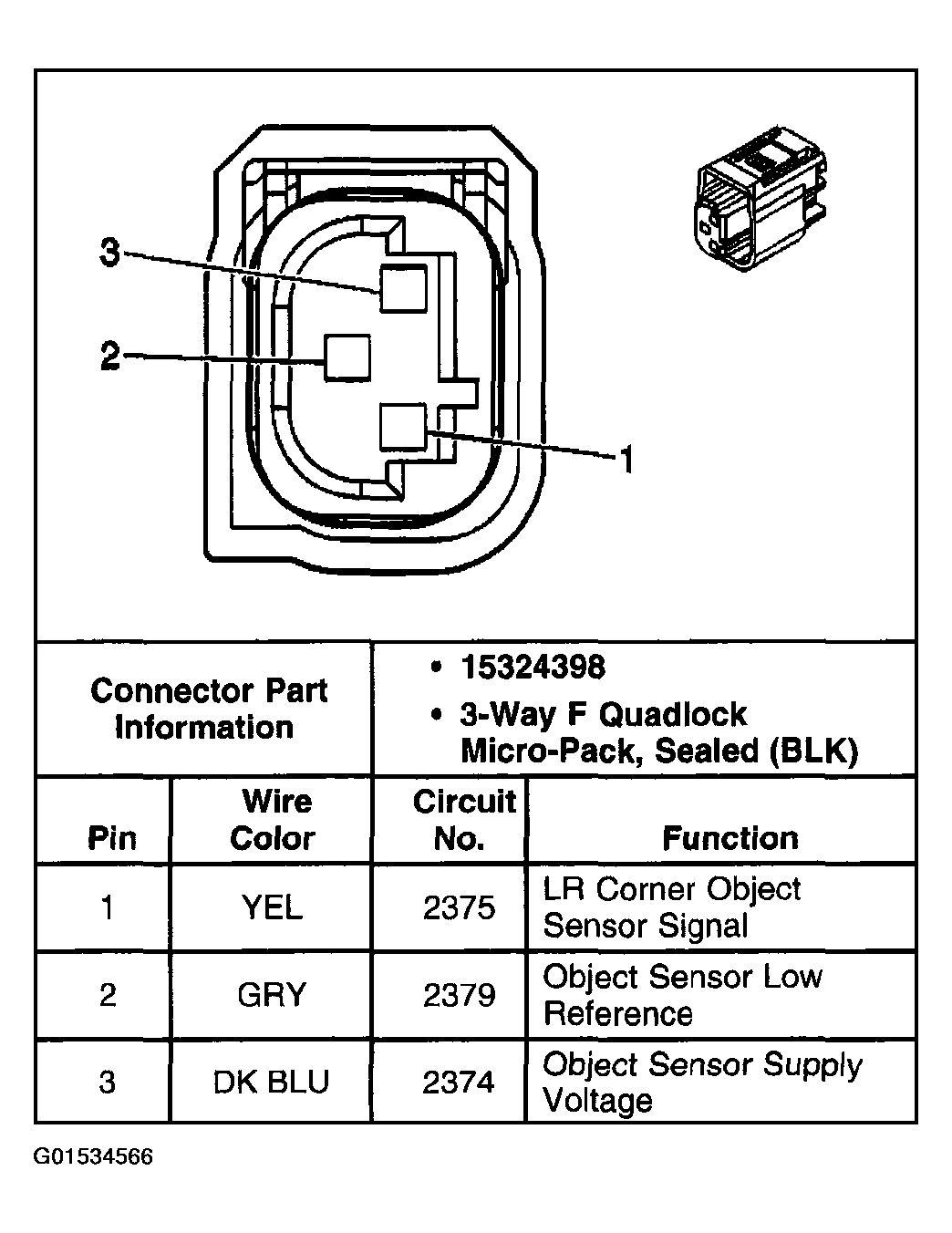

Fig 1: Object Sensor-LR Corner Connector End View
G01534566Courtesy of GENERAL MOTORS CORP.

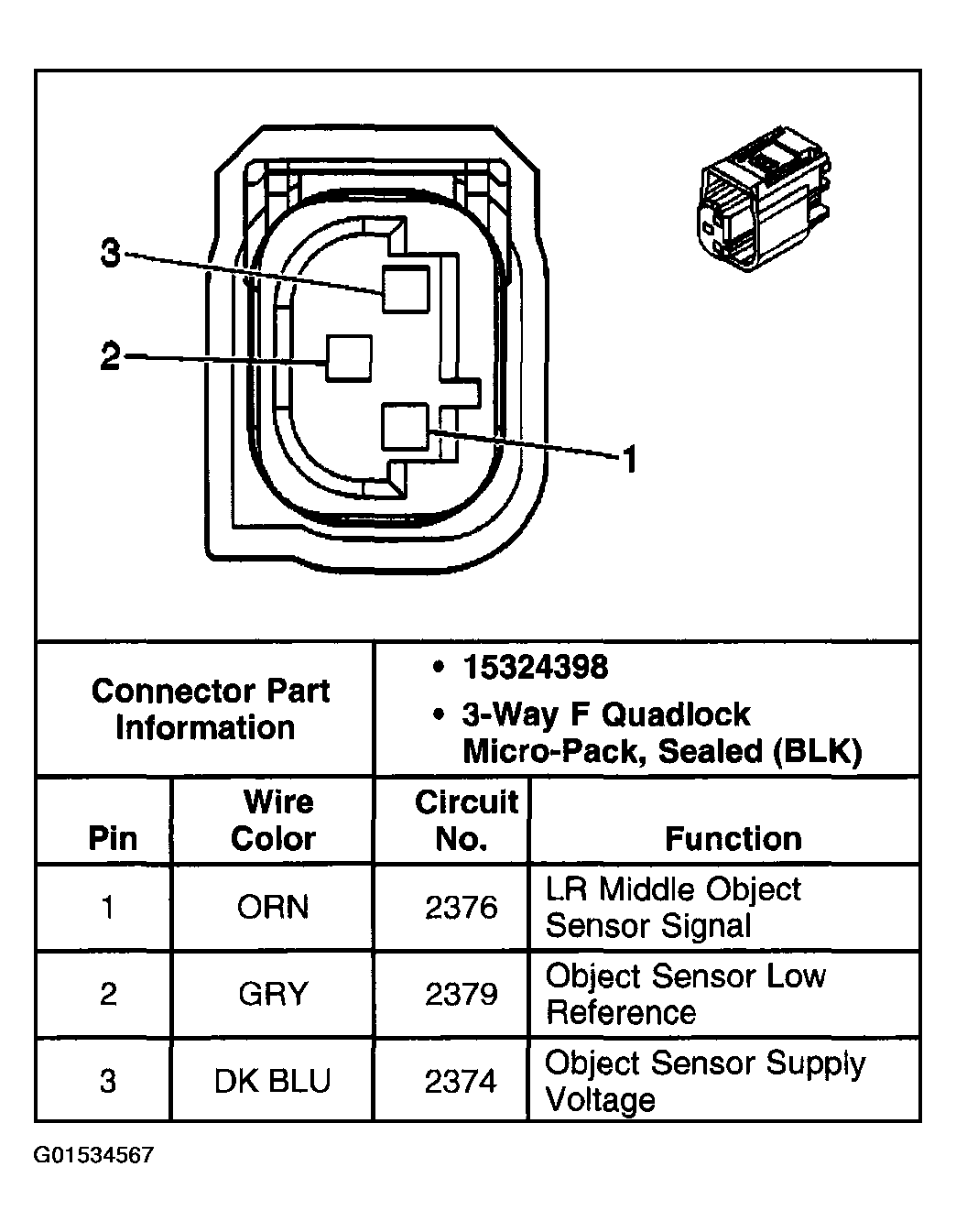

Fig 2: Object Sensor-LH Middle Connector End View
G01534567Courtesy of GENERAL MOTORS CORP.

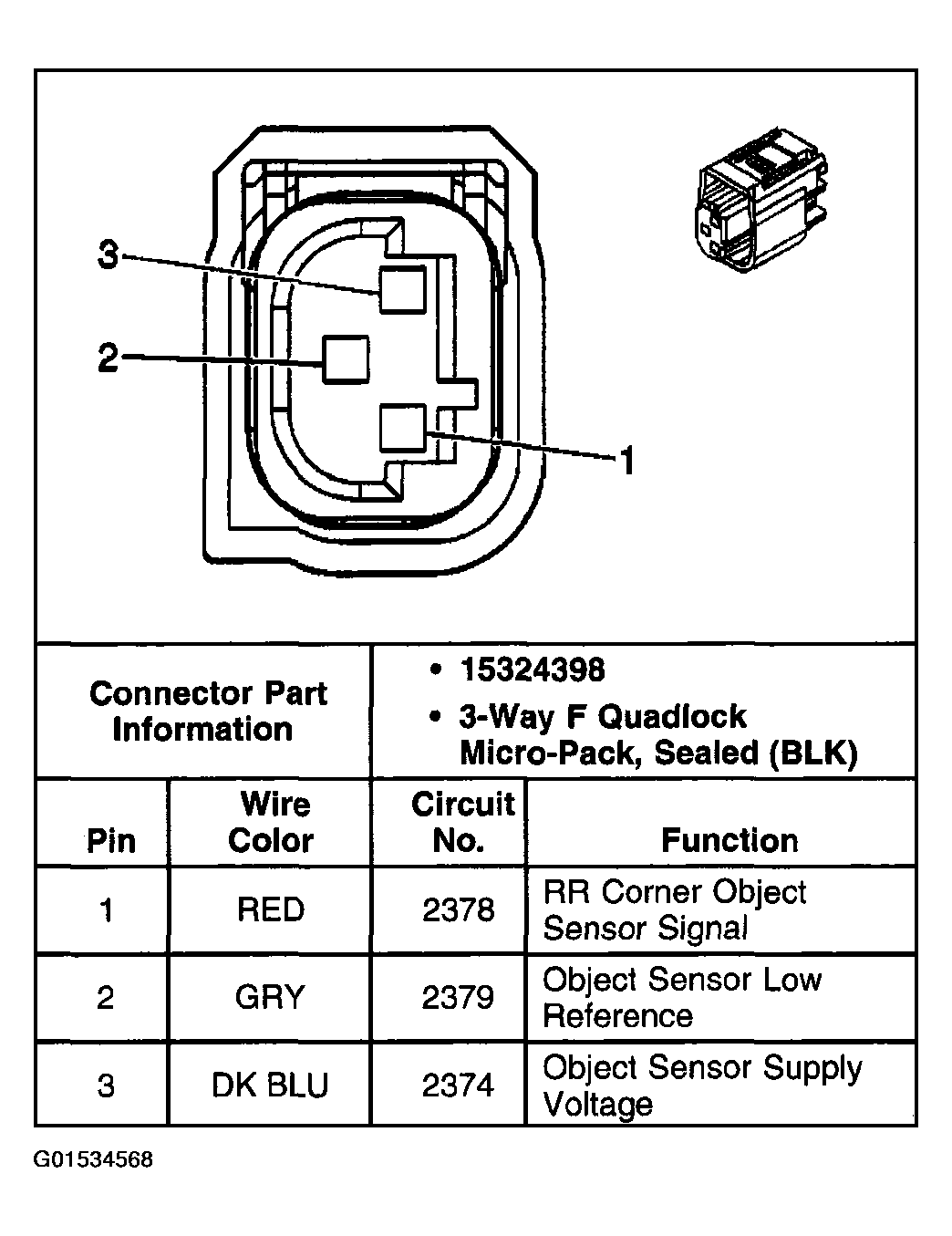

Fig 3: Object Sensor-RR Corner Connector End View
G01534568Courtesy of GENERAL MOTORS CORP.
Fig 4: Object Sensor-RR Middle Connector End View
G01534569Courtesy of GENERAL MOTORS CORP.

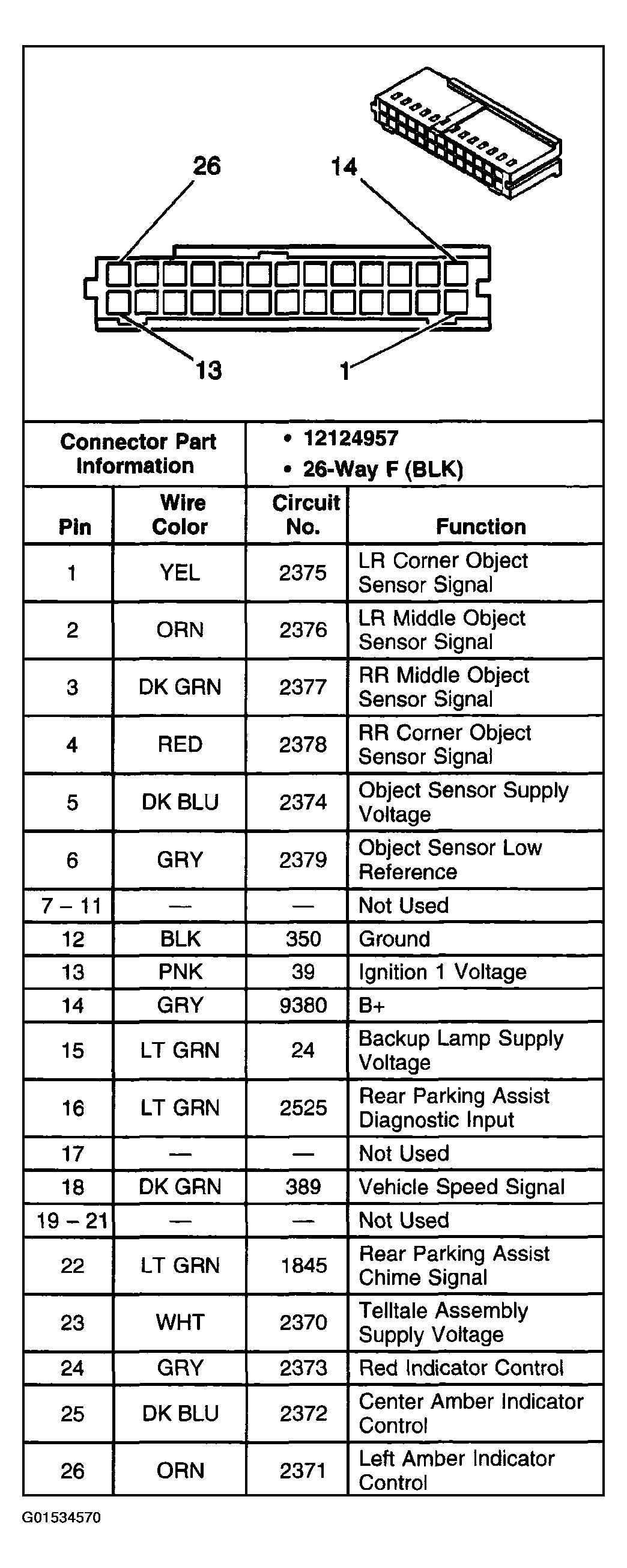

Fig 5: Rear Object Sensor Control Module Connector End View
G01534570Courtesy of GENERAL MOTORS CORP.

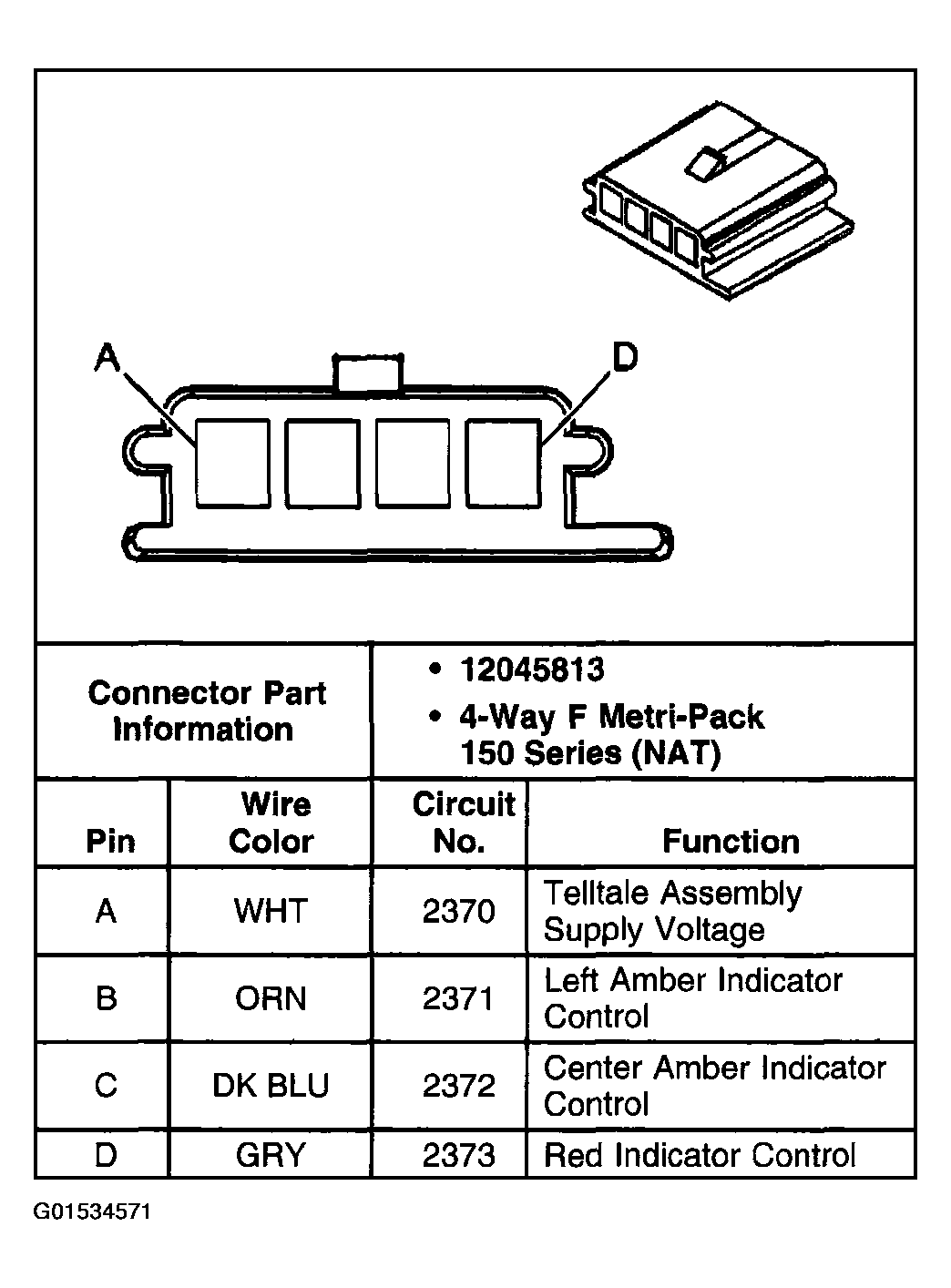

Fig 6: Rear Parking Assist Display Connector End View
G01534571Courtesy of GENERAL MOTORS CORP.
