Schematic Wiring Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

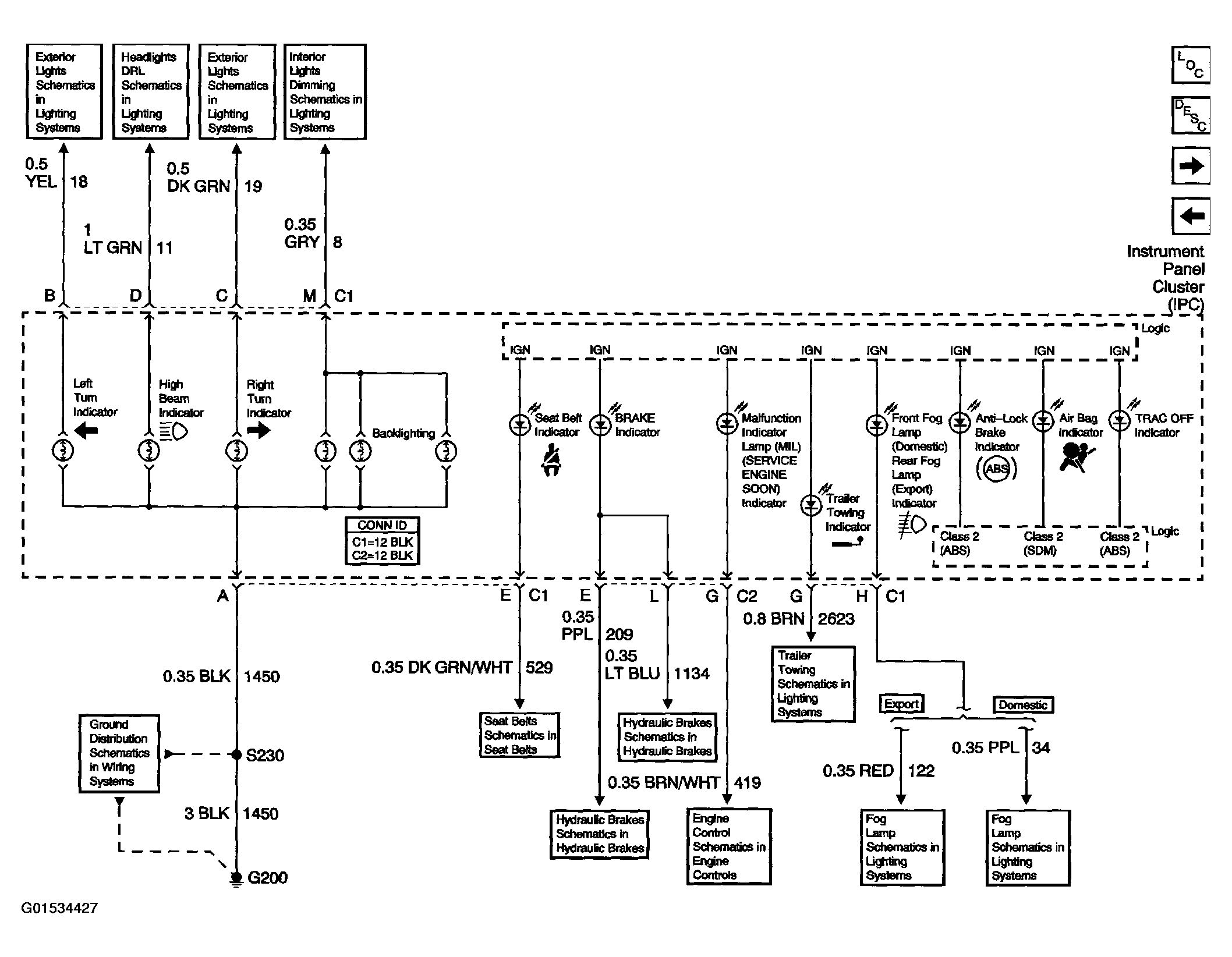

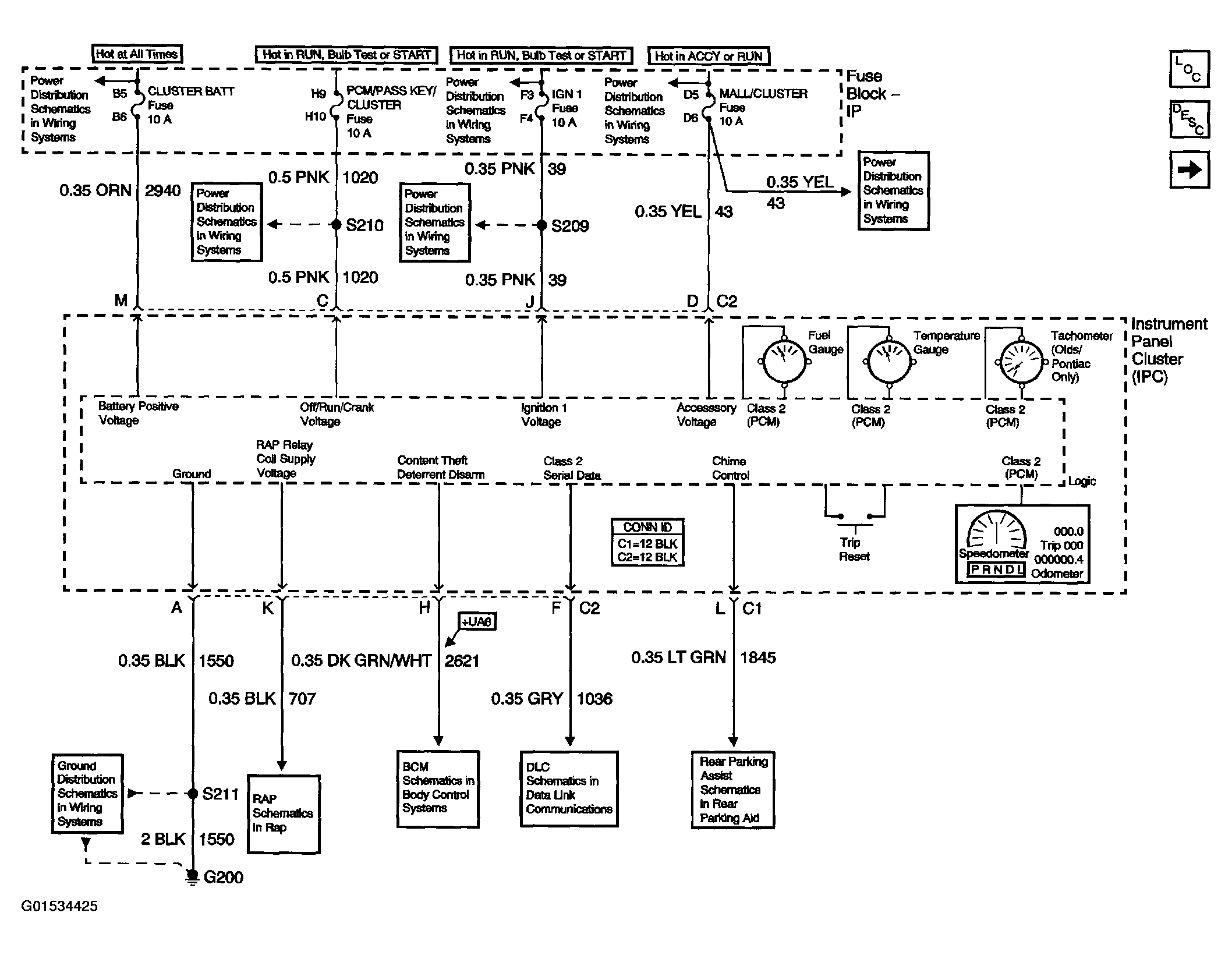

Fig 1: Instrument Cluster Schematic (Power, Ground, Class 2 Line And Gages)

Courtesy of GENERAL MOTORS CORP.

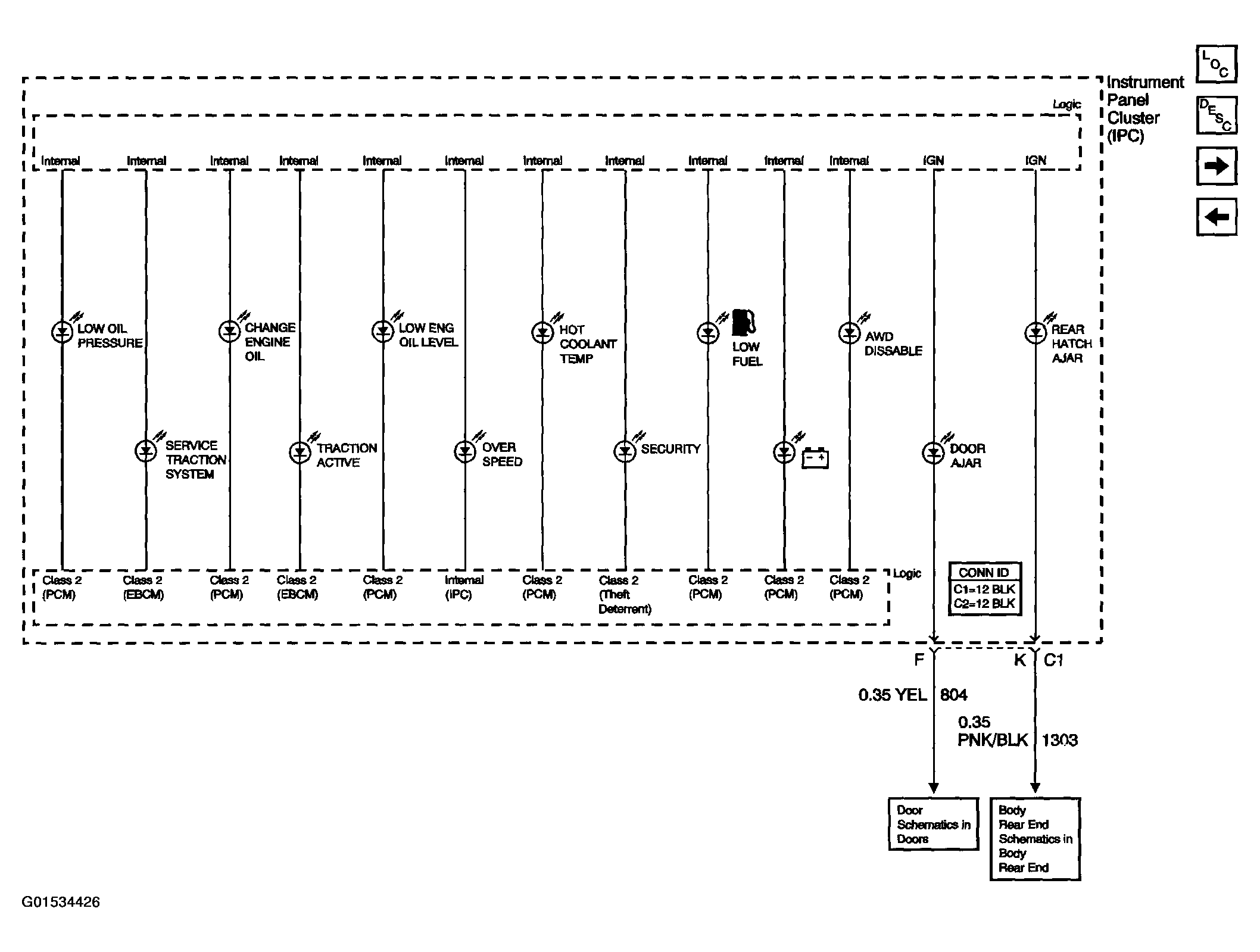

Fig 2: Instrument Cluster Schematic (Hardwire Indicators)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Cluster Schematic (Class 2 Telltales)

Courtesy of GENERAL MOTORS CORP.

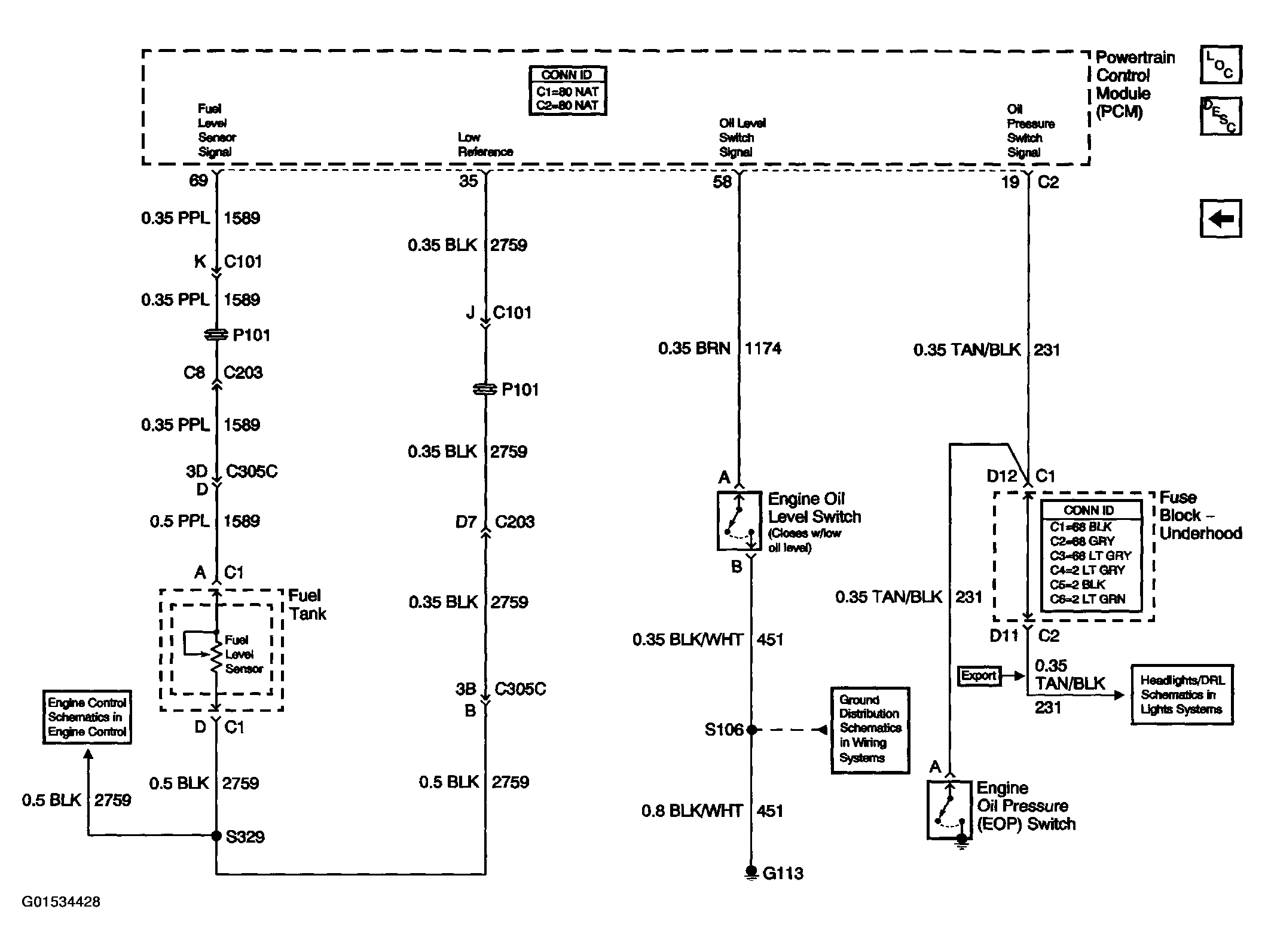

Fig 4: Instrument Cluster Schematic (Sensors And Switches)

Courtesy of GENERAL MOTORS CORP.

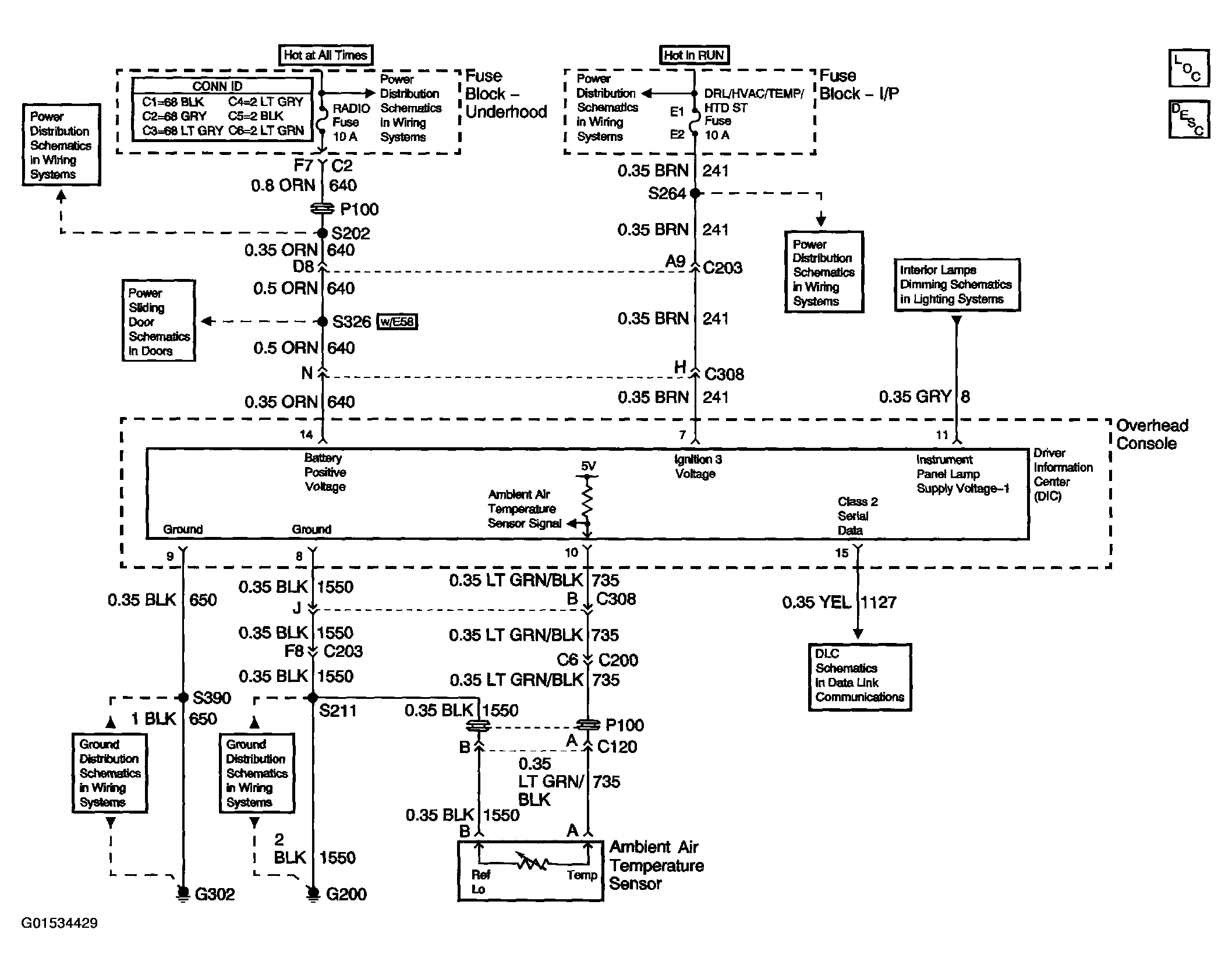

Fig 5: Driver Information System Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Audible Warnings Schematic (BCM, Power And Ground)

Courtesy of GENERAL MOTORS CORP.

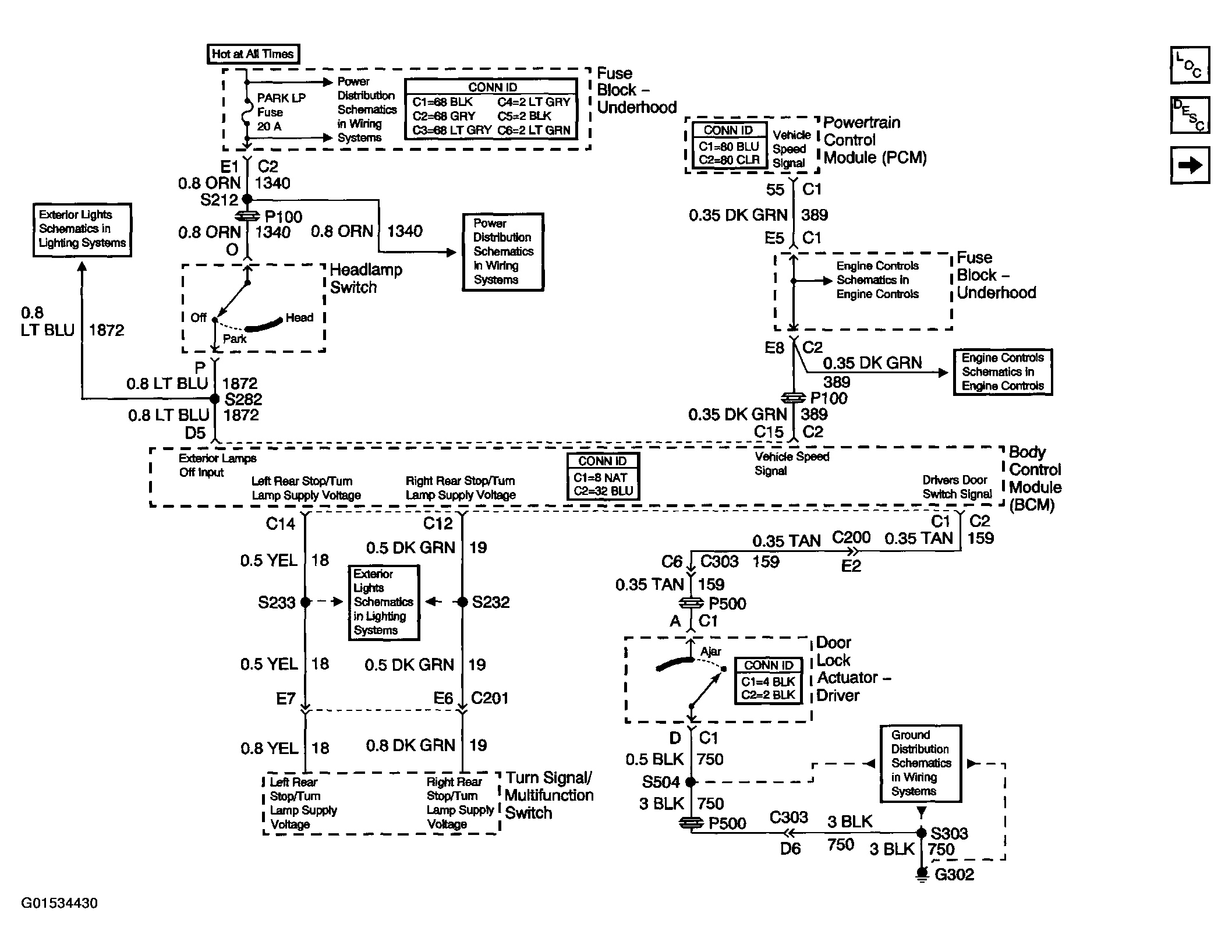

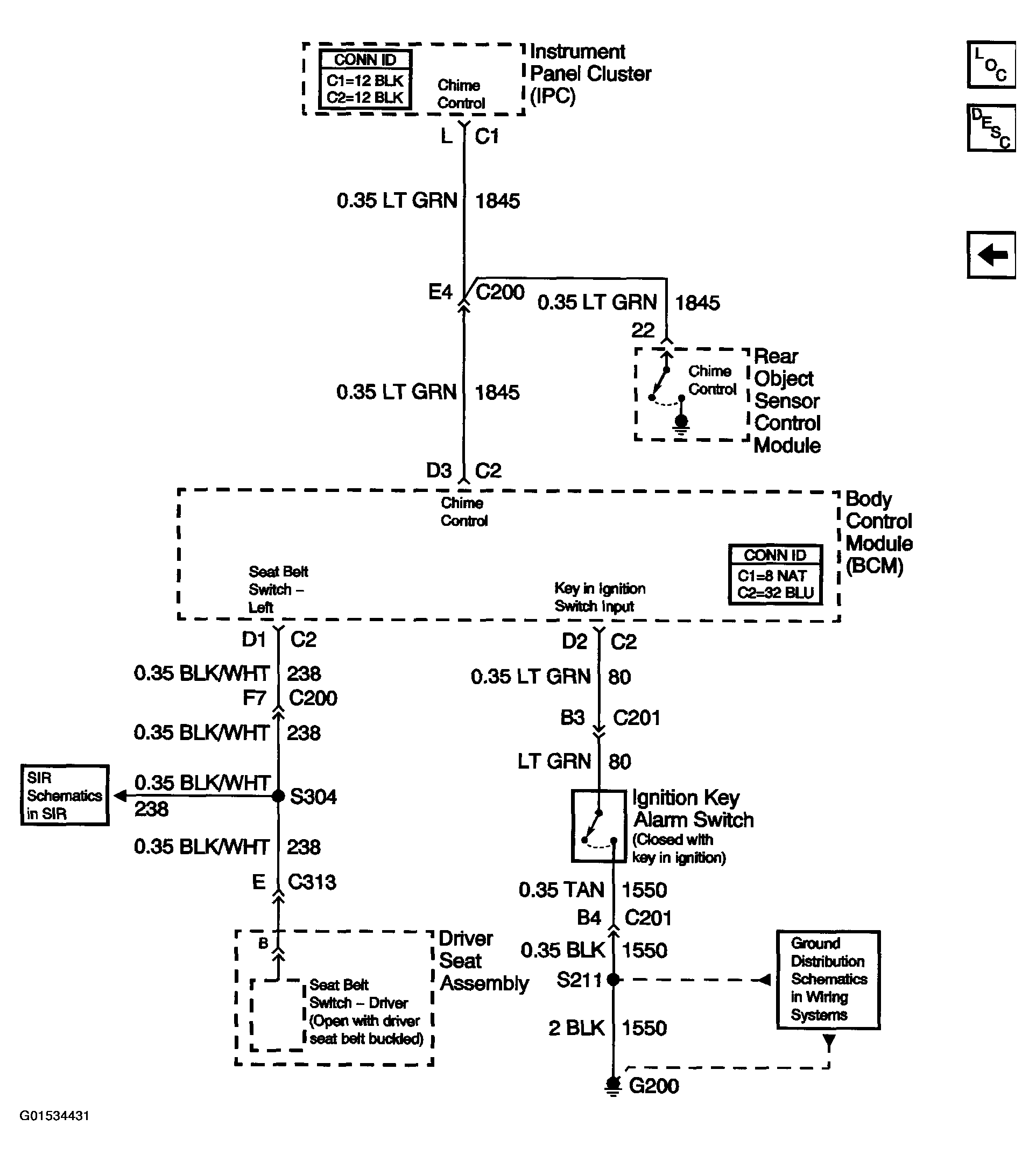

Fig 7: Audible Warnings Schematic (BCM, Instrument Panel Cluster And Grounds)

Courtesy of GENERAL MOTORS CORP.
