Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the ashtray or the cupholder.
  2. Remove the following sets of screws:
    • Two screws from the front of the trim panel. For access to the front screws, remove the ashtray or the cupholder.
    • Two screws from the bottom of the trim panel. For access to the bottom screws, remove the console storage box.
  3. Use a small, flat-bladed tool in order to remove the upper tabs on the IP accessory trim plate from the instrument panel.
  4. Disconnect the electrical connectors, if equipped.
  5. Remove the IP accessory trim plate from the instrument panel.

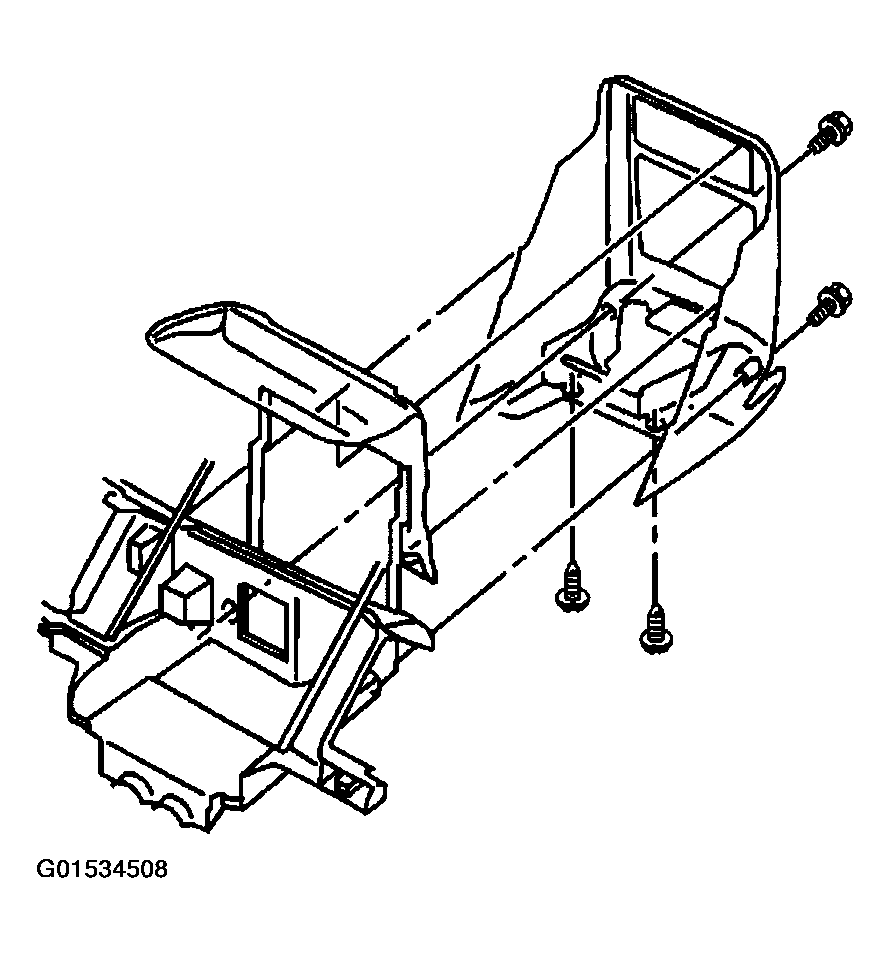

    Fig 1: Removing Instrument Panel Accessory Trim Plate From Instrument Panel
    G01534508Courtesy of GENERAL MOTORS CORP.
