Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP accessory trim plate to the instrument panel.
  2. Connect the electrical connectors, if equipped.
  3. Align the upper tabs of the IP accessory trim plate to the instrument panel.
  4. Install the following sets of screws:
    • Two screws tot he front of the trim panel
    • Two screws to the bottom of the trim panel
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten all of the screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the console storage box, if required.
  7. Install the ashtray or the cupholder, if required.
  8. Close the ashtray or the cupholder.

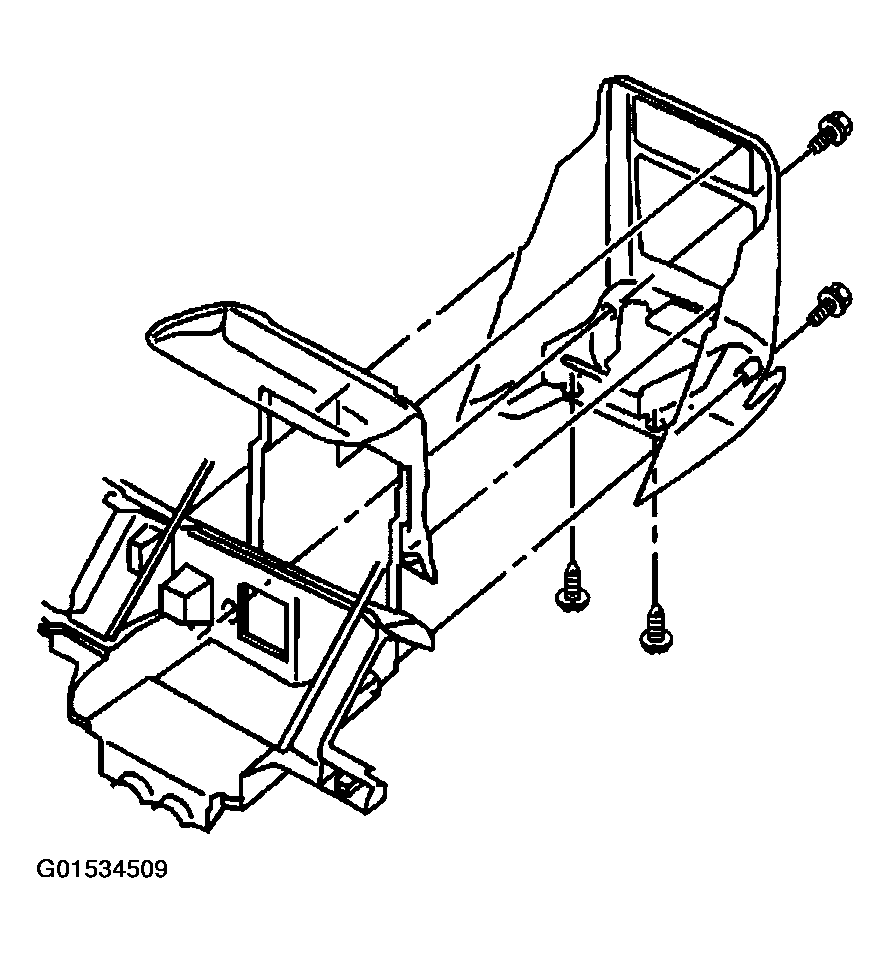

    Fig 1: Installing Instrument Panel Accessory Trim Plate To Instrument Panel
    G01534509Courtesy of GENERAL MOTORS CORP.
