Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locating pins and the retainers from the upper trim panel to the slots in the IP.
  2. Install the DRL ambient light sensor. Refer to DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR REPLACEMENT in Lighting Systems.
  3. If equipped, install the sun load sensor.

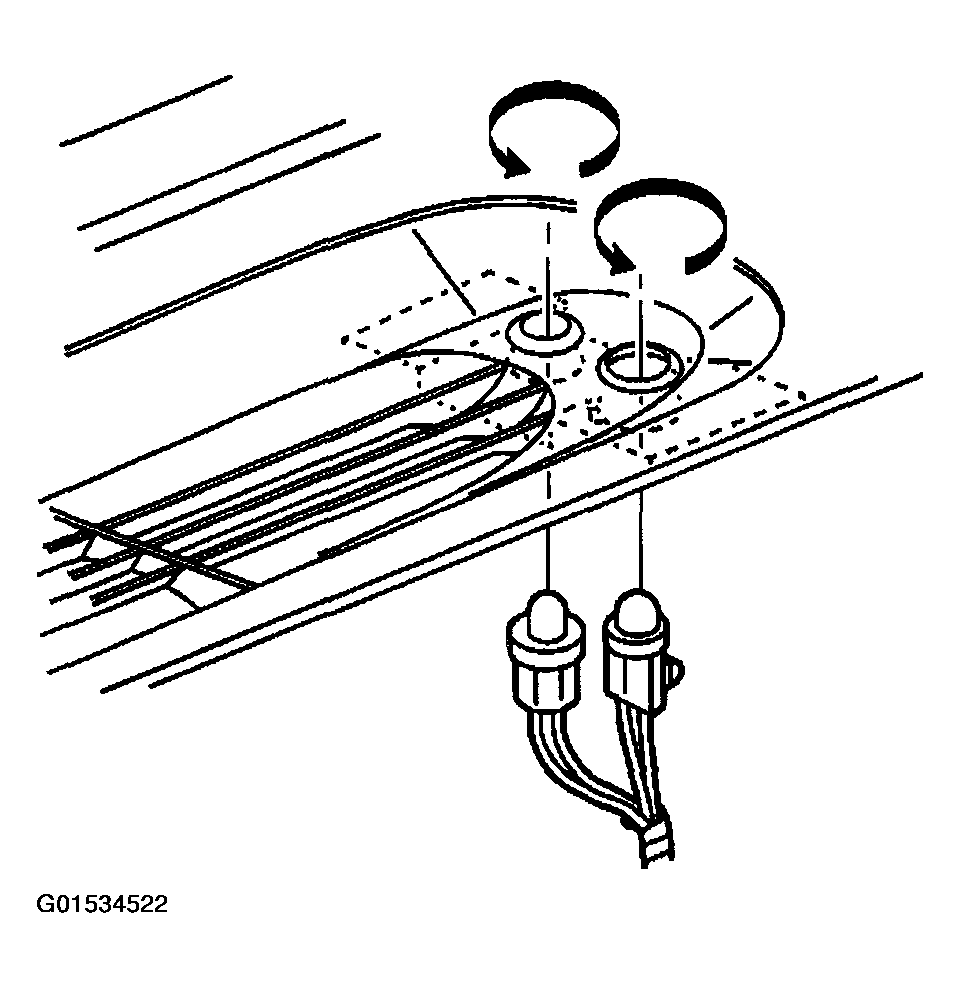

    Fig 1: Installing Sun Load Sensor
    G01534522Courtesy of GENERAL MOTORS CORP.
  4. Push forward and down on the upper trim panel to lock into place.
  5. Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Interior Trim.

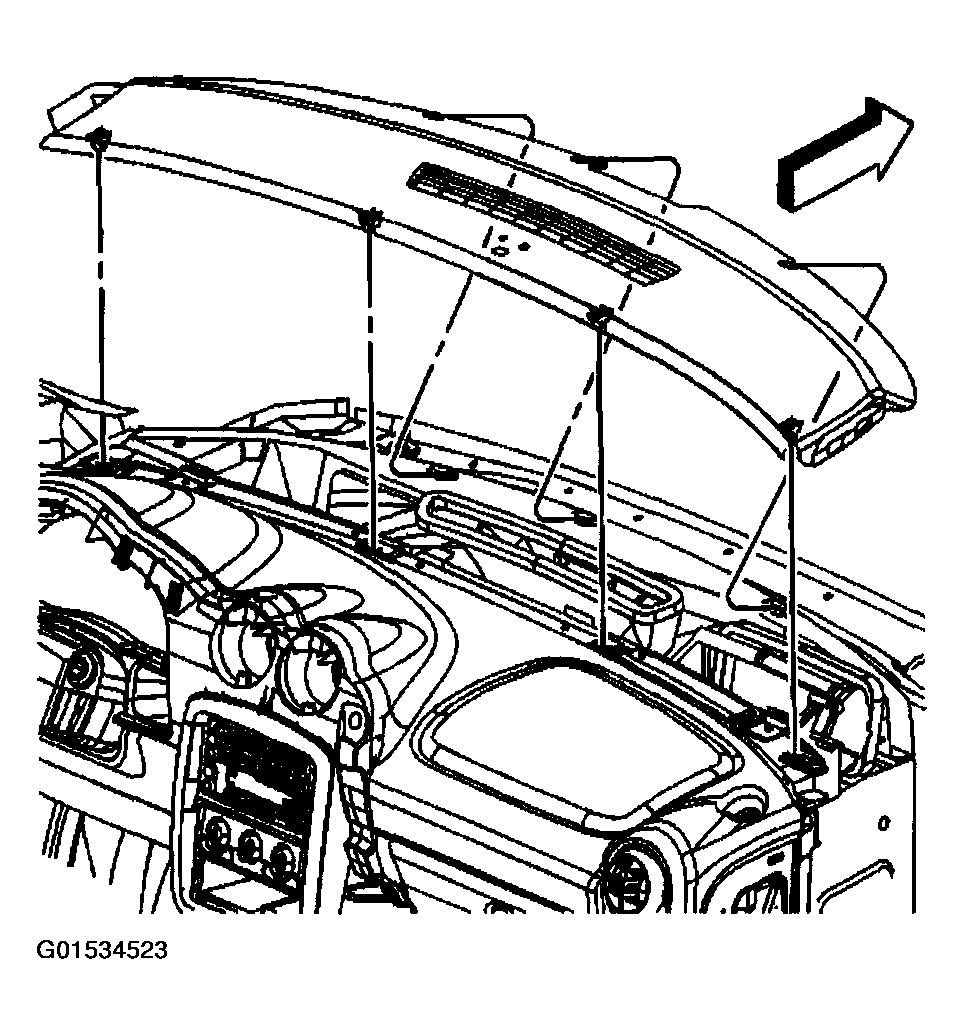

    Fig 2: Installing Instrument Panel Upper Trim Panel And Pushing Retainers
    G01534523Courtesy of GENERAL MOTORS CORP.
