Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the IP compartment door.
  2. Remove the screws from the IP compartment latch.

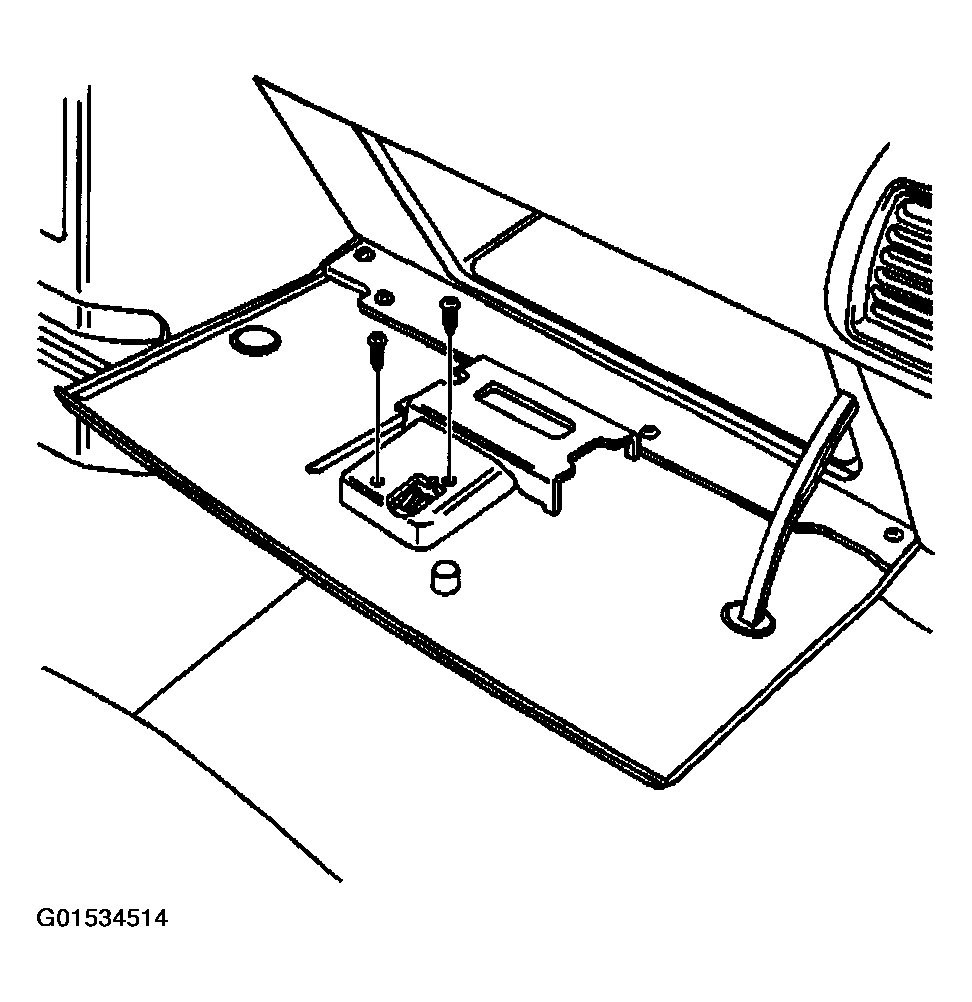

    Fig 1: Removing Instrument Panel Compartment Latch Screws
    G01534514Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP compartment latch from the IP compartment door by pushing the latch out of the door from the inside surface of the IP door.

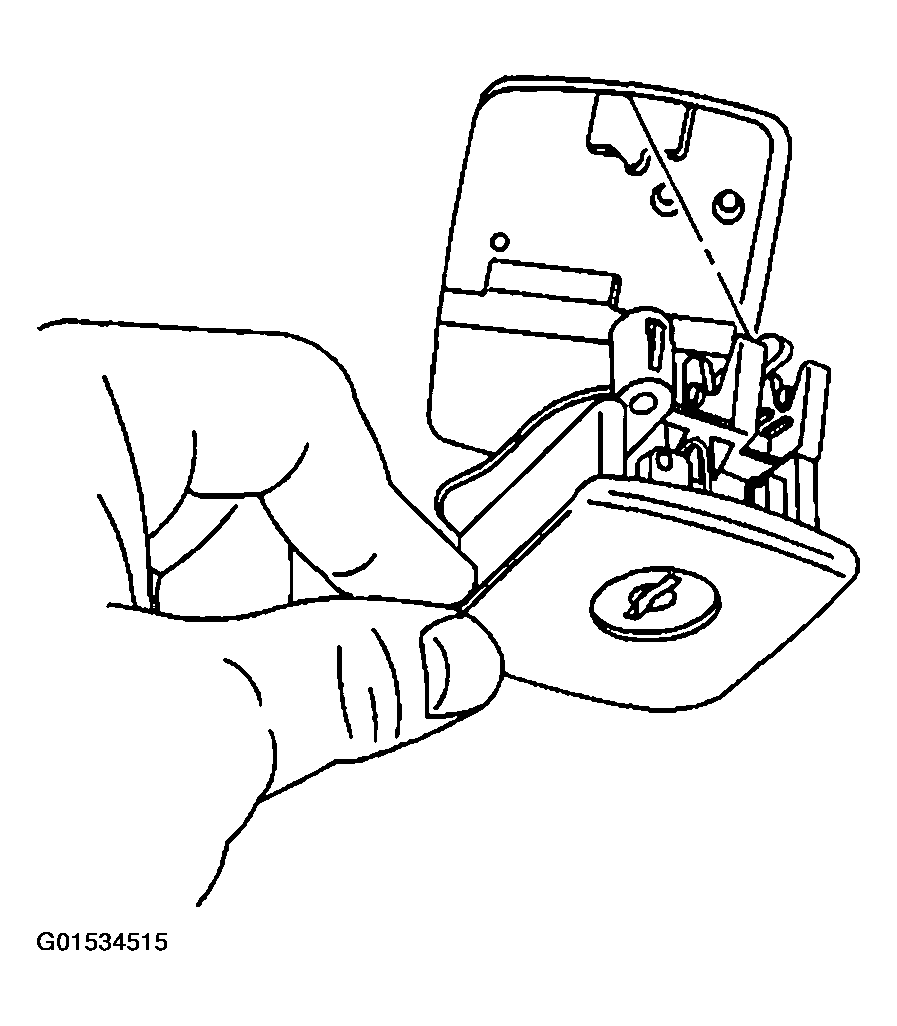

    Fig 2: Removing Instrument Panel Compartment Latch
    G01534515Courtesy of GENERAL MOTORS CORP.
