Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP compartment latch to the IP compartment door.
  2. Snap the latch into place in the IP door.

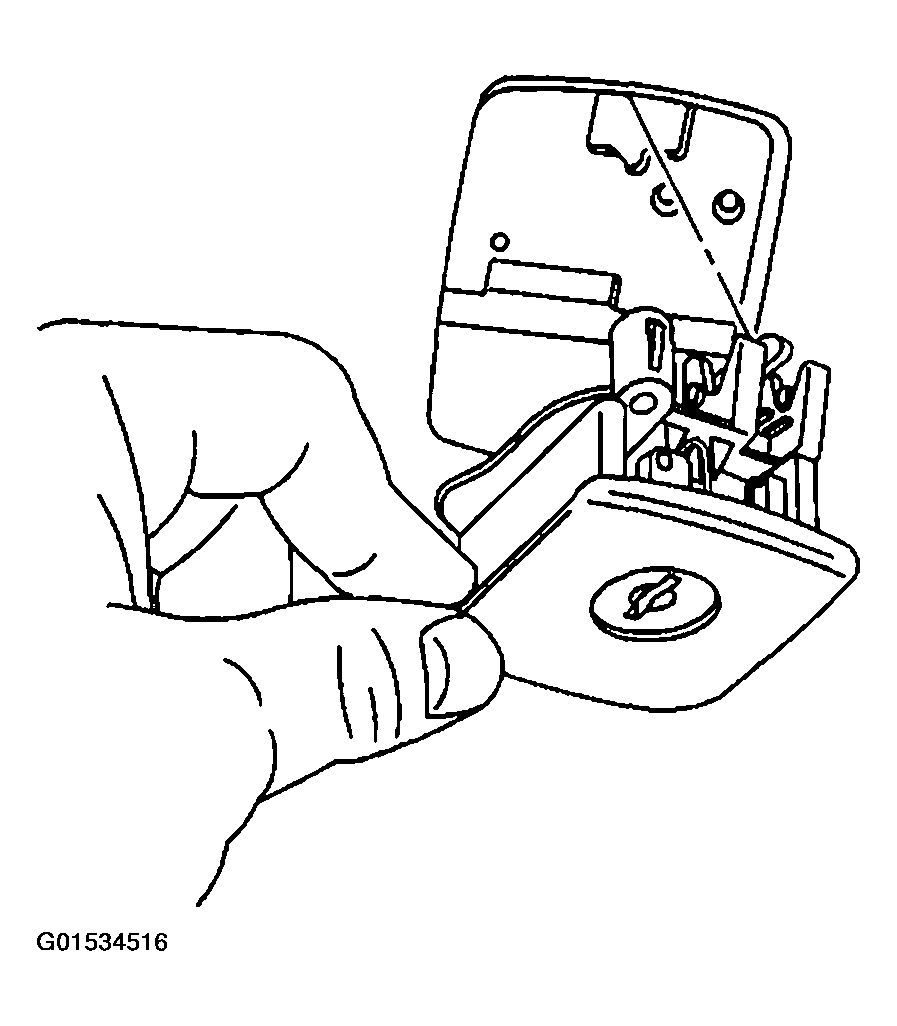

    Fig 1: Installing Instrument Panel Compartment Latch To Instrument Panel Compartment Door
    G01534516Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the IP compartment latch.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  4. Close the IP compartment door.

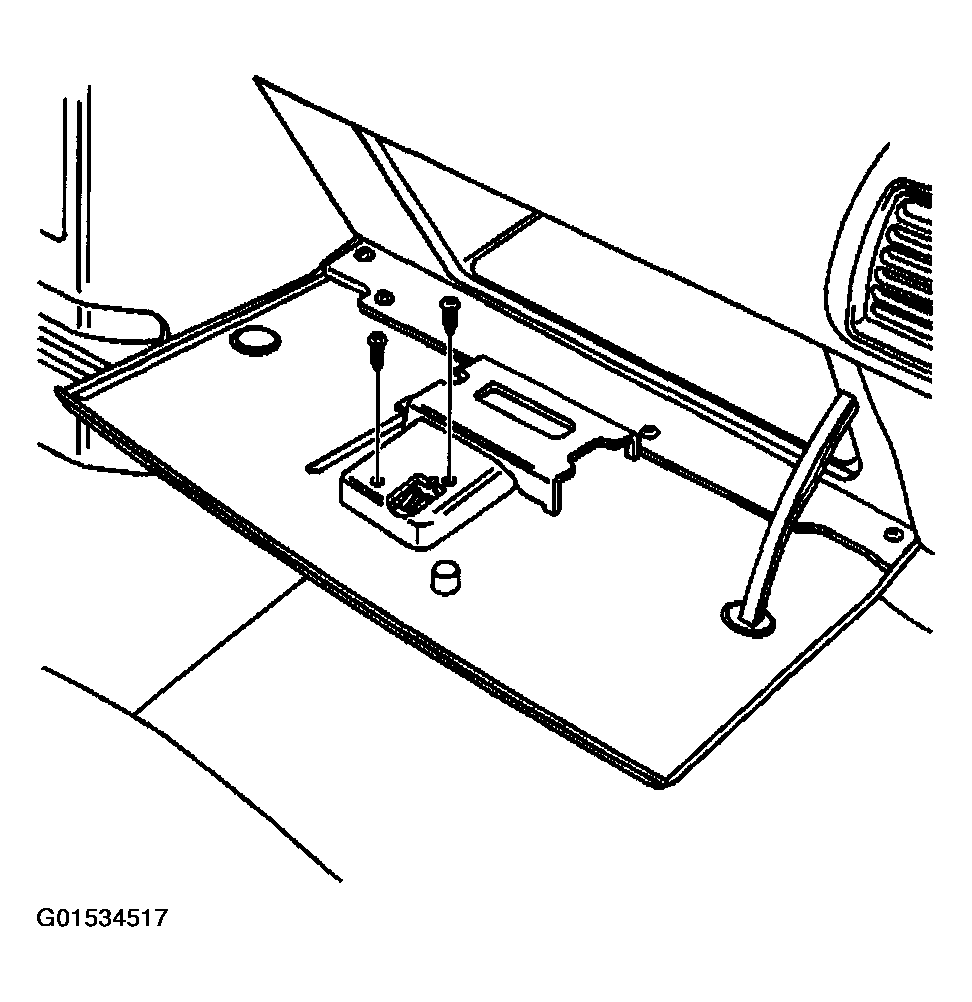

    Fig 2: Installing Instrument Panel Compartment Latch Screws
    G01534517Courtesy of GENERAL MOTORS CORP.
