Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP insulator. Refer to one of the following procedures:
  2. Remove the bolts/screws from the bottom of the knee bolster.
  3. Pull on the knee bolster in order to release the upper clips.

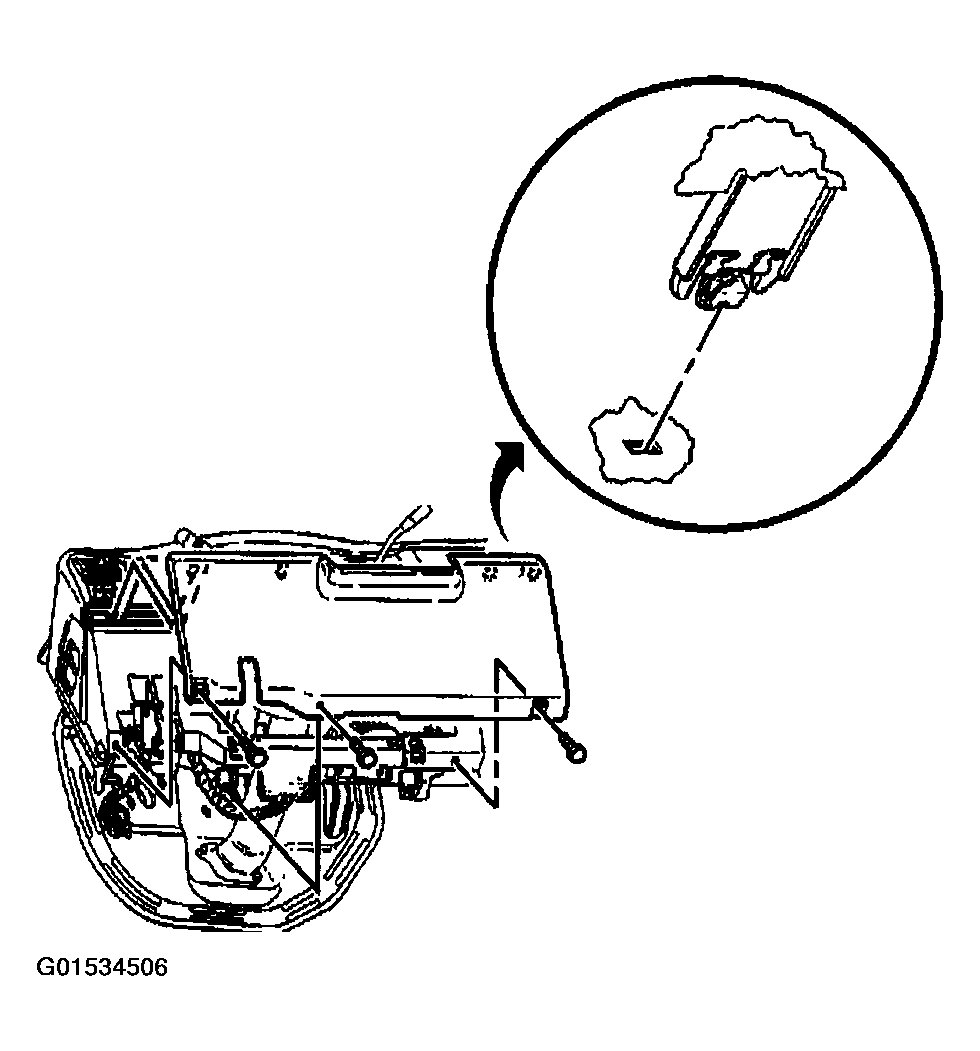

    Fig 1: Removing Knee Bolster
    G01534506Courtesy of GENERAL MOTORS CORP.
