Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The ignition switch must be in the OFF position when removing the instrument panel cluster.

  1. Remove the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the screws from the IP cluster to instrument panel.

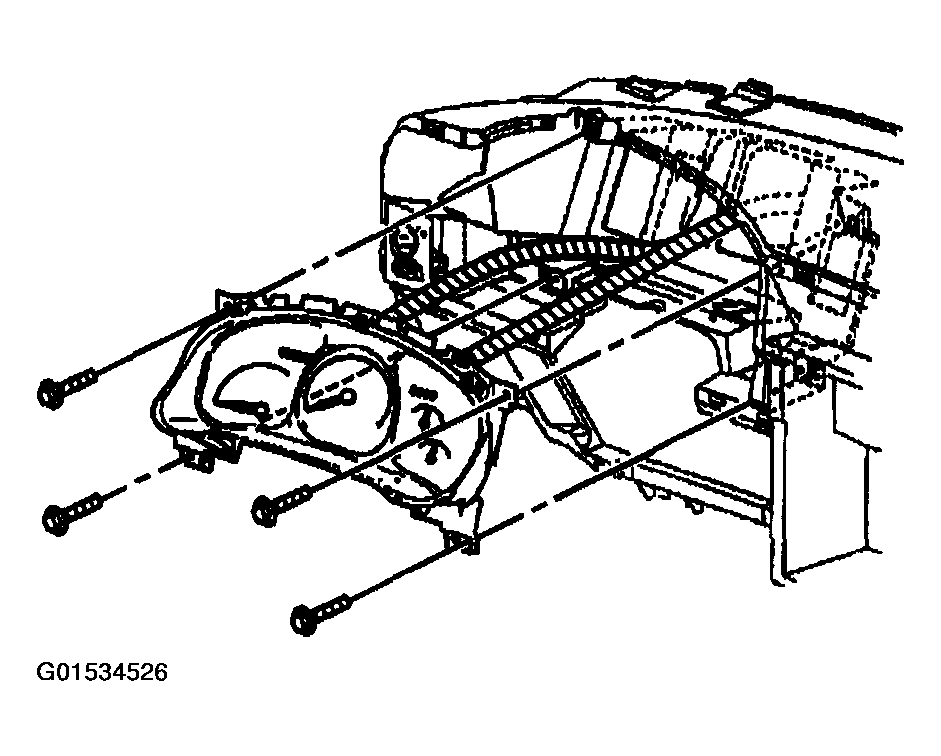

    Fig 1: Removing From Instrument Panel Cluster Screws
    G01534526Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP cluster from the instrument panel.
  4. Disconnect the electrical connectors.

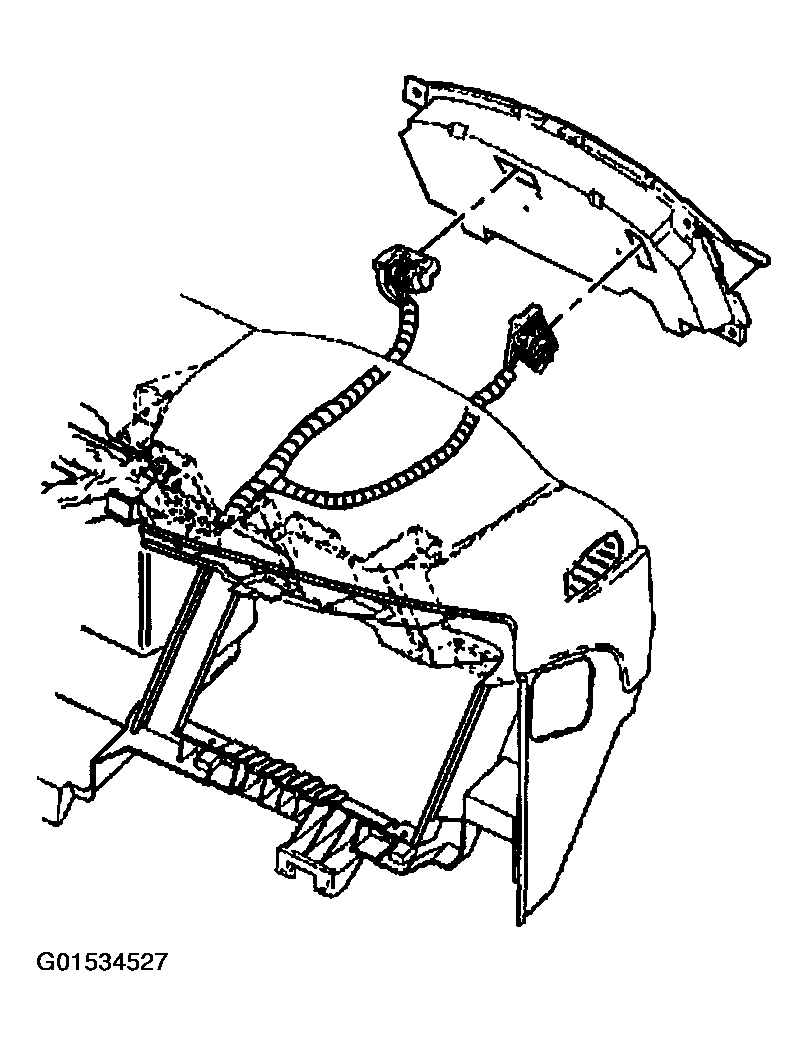

    Fig 2: Disconnecting Electrical Connectors
    G01534527Courtesy of GENERAL MOTORS CORP.
