Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.

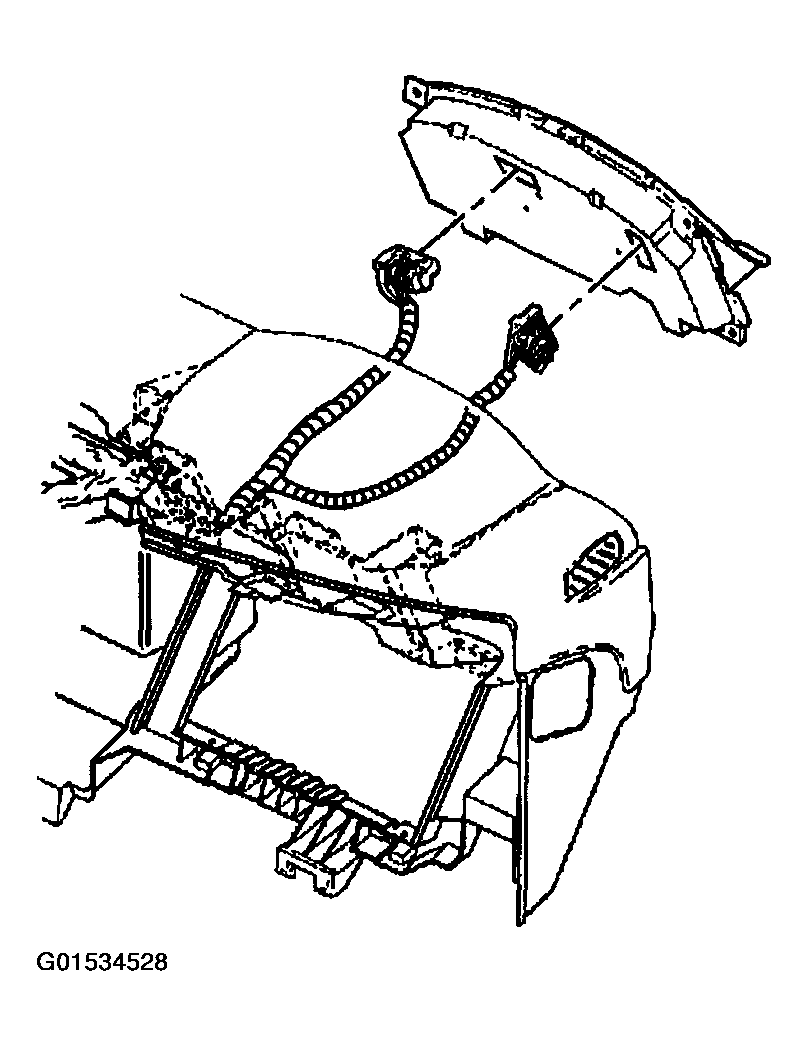

    Fig 1: Connecting Electrical Connectors
    G01534528Courtesy of GENERAL MOTORS CORP.
  2. Position the IP cluster to the instrument panel.

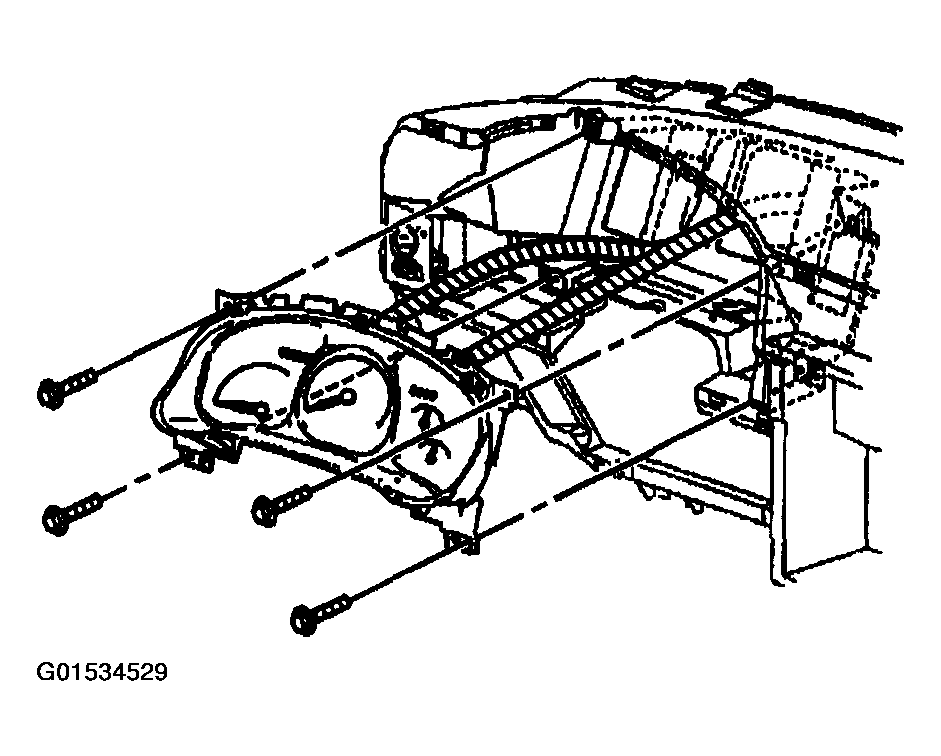

    Fig 2: Positioning Instrument Panel Cluster To Instrument Panel
    G01534529Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to instrument panel cluster.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the instrument cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

    When installing a new IP cluster it must be synchronized to the supplemental inflatable restraint (SIR) module in order to synchronize the new cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) PROGRAMMING/SYNCHRONIZATION  and to ELECTRONIC COMPASS CALIBRATION  .

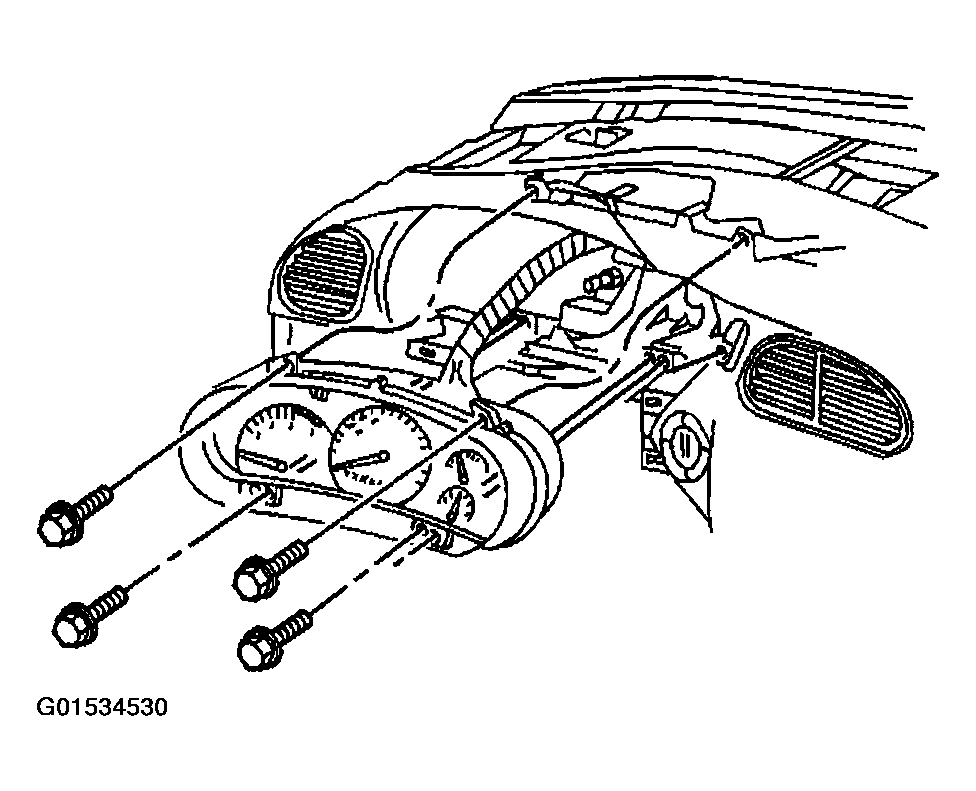

    Fig 3: Installing Instrument Panel Cluster Screws
    G01534530Courtesy of GENERAL MOTORS CORP.
