Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) accessory trim plate. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER
    Fig 1: Identifying Instrument Panel
    G01534489Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the IP switch bank.
  3. Remove the switch bank by pulling straight out from the IP.

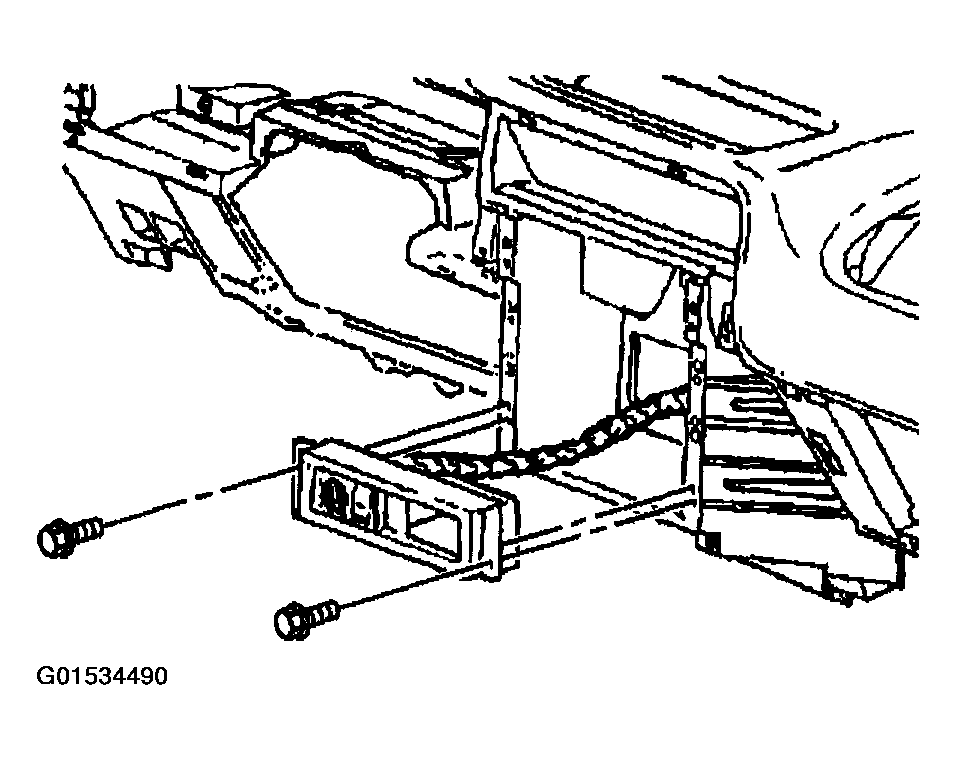

    Fig 2: Removing Switch Bank From Instrument Panel
    G01534490Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

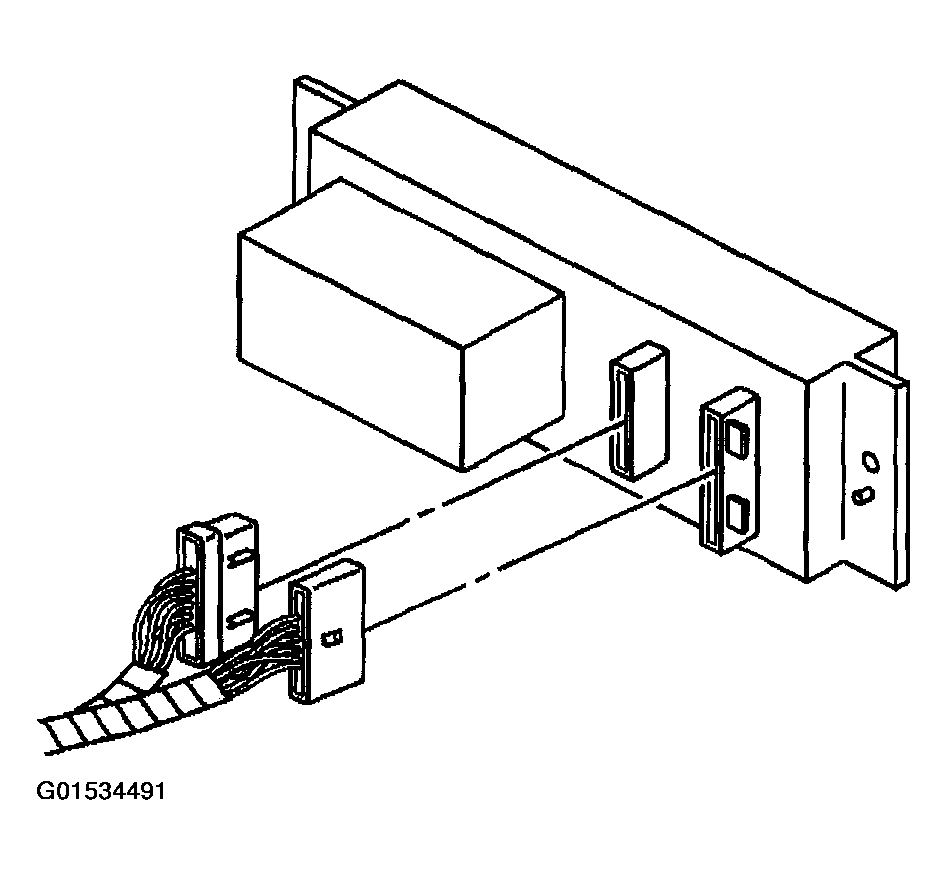

    Fig 3: Disconnecting Electrical Connectors
    G01534491Courtesy of GENERAL MOTORS CORP.
